6. Remove the tray unit. (Tray Unit)

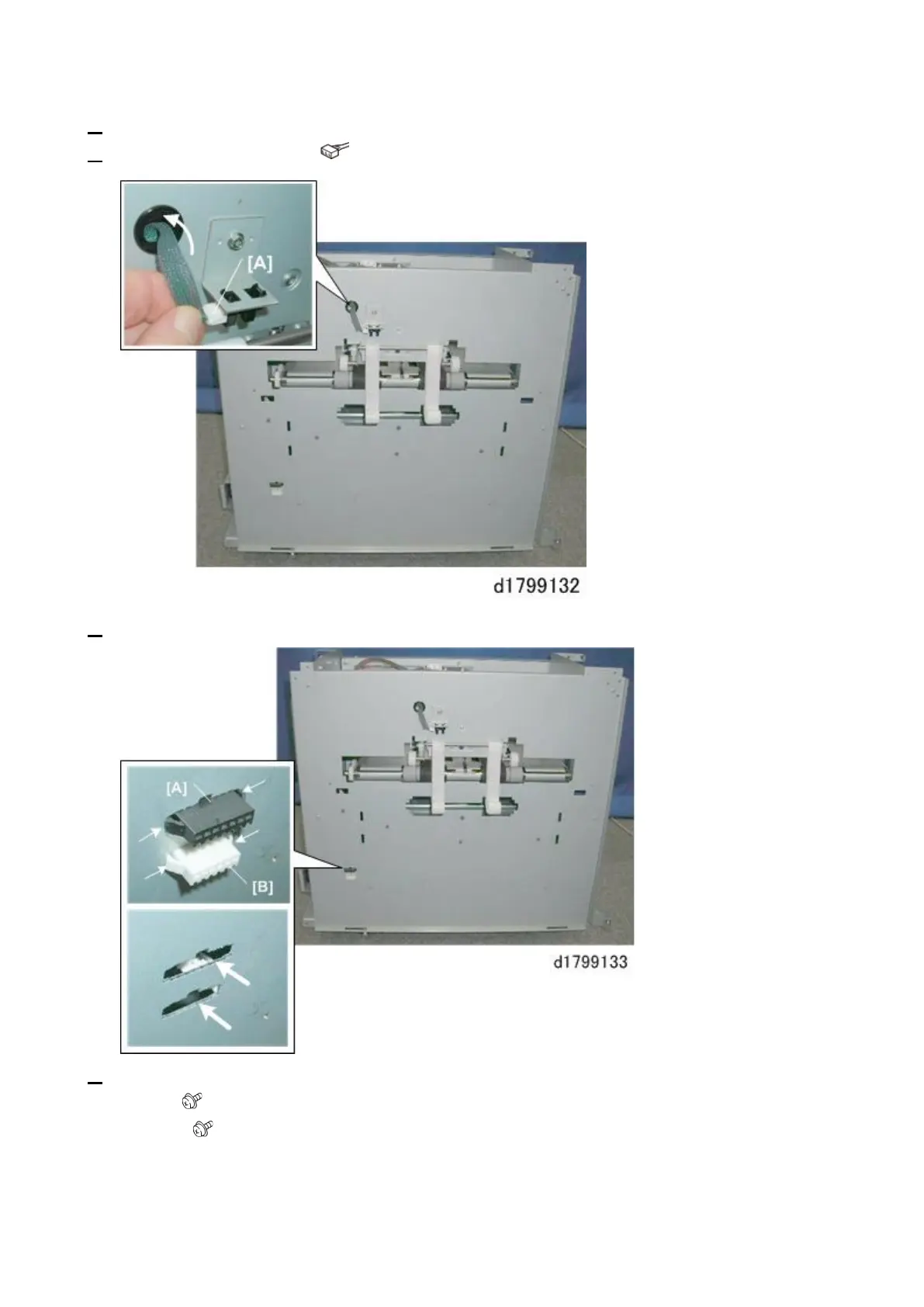

7. Disconnect the sensor [A]. ( x1).
8. Disconnect the connectors on the sensor. Push in the connectors [A] [B].
9. Remove the left cover plate:
[A] Left ( x7)
[B] Front ( x2)
