2.Replacement and Adjustment
26

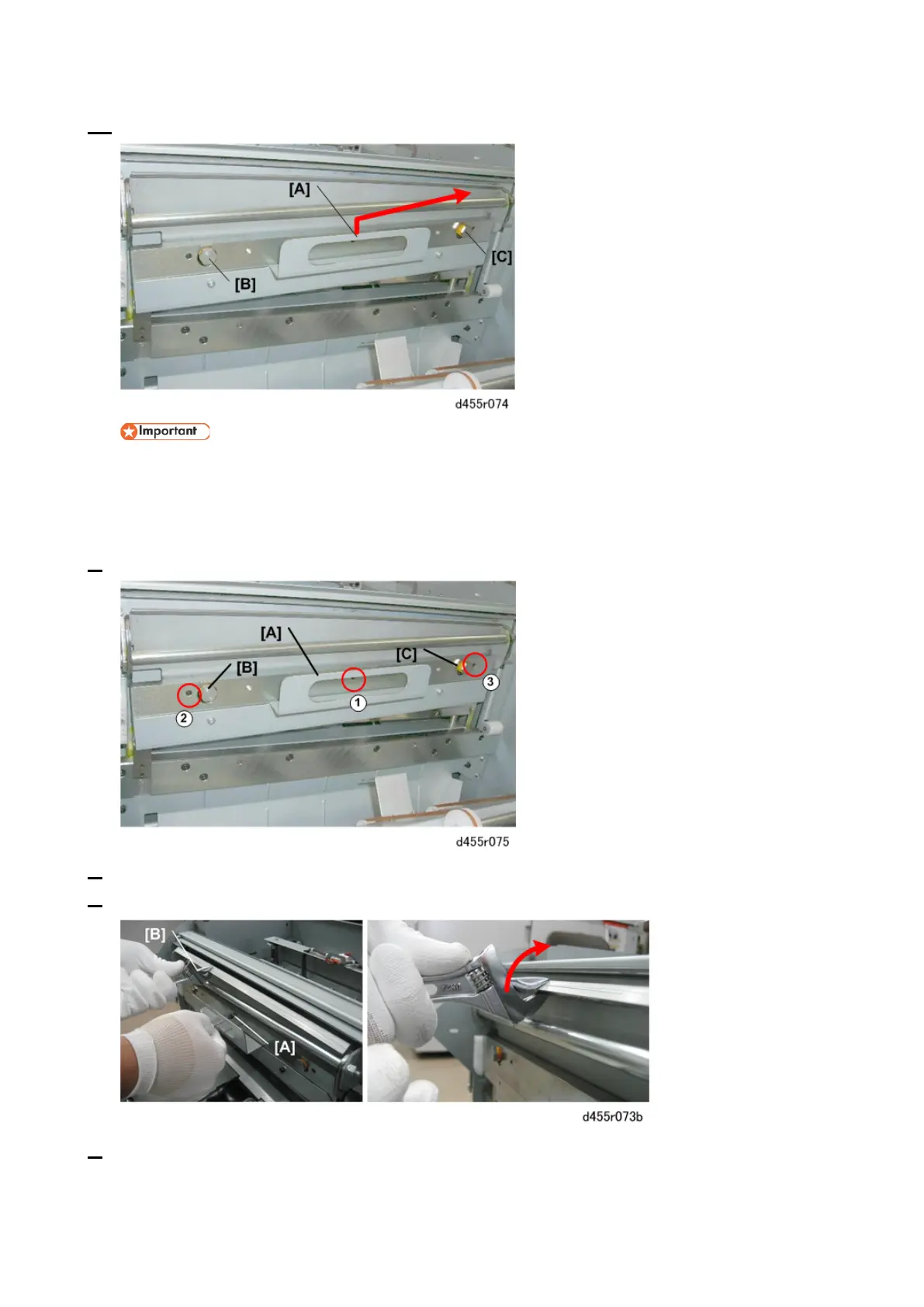

10. Grip the handle [A] and slowly lift the blade off the heads of the large hex bolts [B] and [C].
• Obey local laws and regulations regarding the disposal of items such as the used
trimming blade.
Re-installation
1.
Grip the new blade by the handle [A] and set it on the heads [B] and [C] of the hex bolts.
2. Position the screw [A] at the first hole.
3. Raise the plate with the wrench [B].
4. Insert the first screw in the hole, then turn it until the screw is firmly attached. Do not tighten it
completely.
To Next Page
