2.Replacement and Adjustment
39

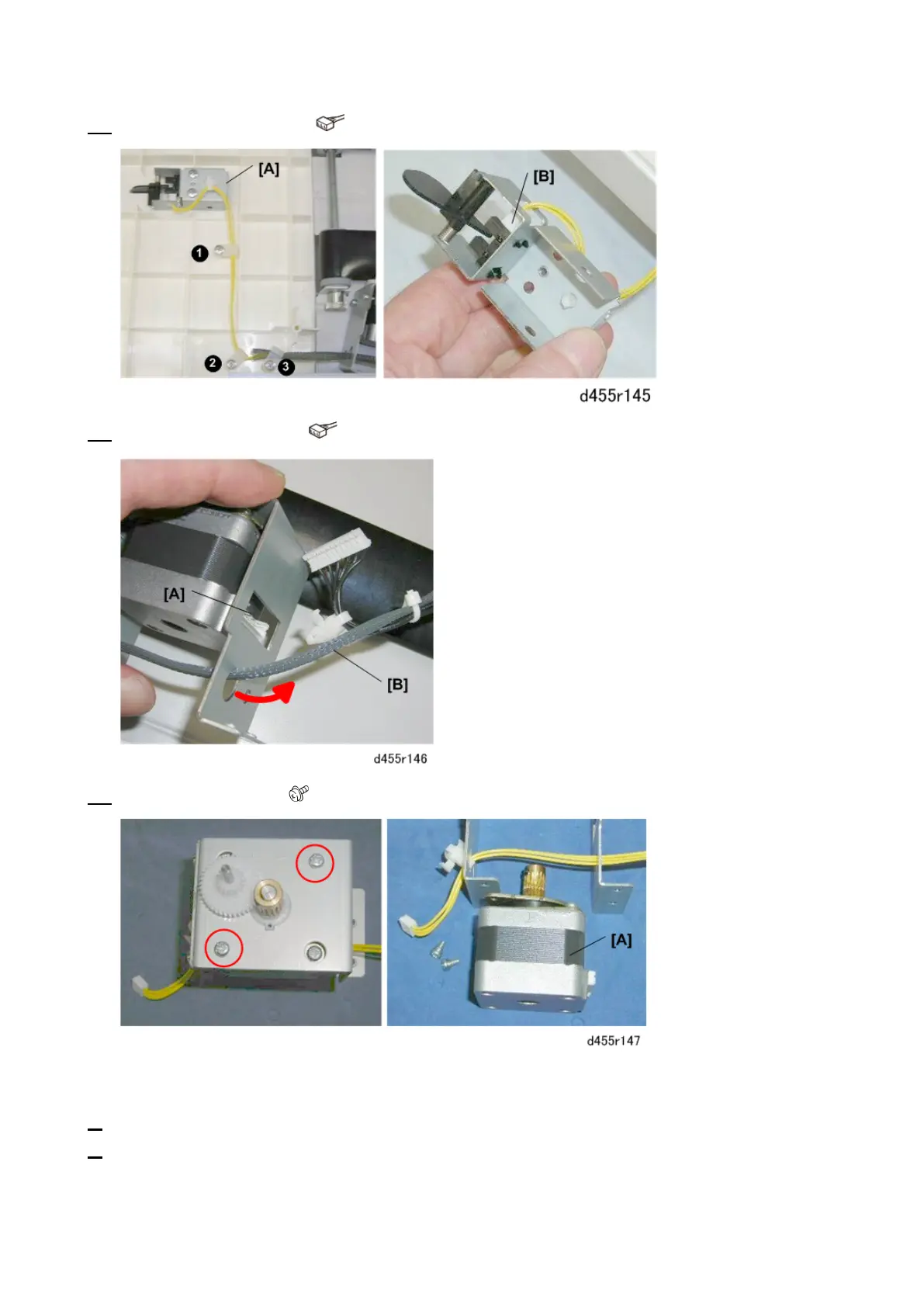

11. Disconnect the sensor [B] ( x1)
12. Disconnect the motor [A] ( x1). Pull the harness [B] through the hole.
13. Remove the motor [A] ( x2).
Re-installation
1.
Position the motor behind the frame.
2. Align the notch on the motor with the tooth [A].
