Ricoh TR5050 - Page 44

2.Replacement and Adjustment
40
3. Press the motor against the frame and re-fasten the screws ( x2).

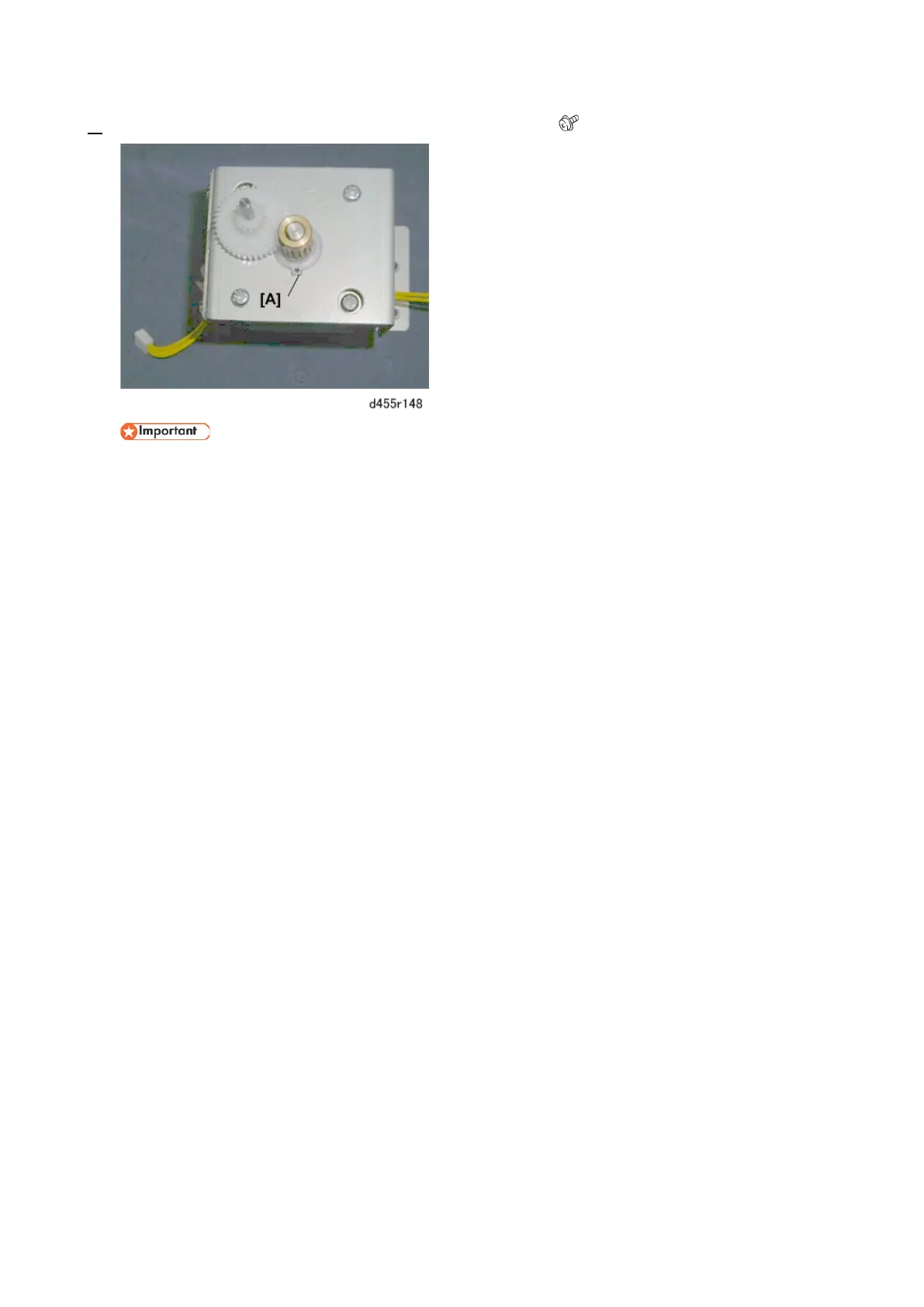

• The tooth must be fitted properly in the notch, so that the motor mount is flat against the
back of the frame. Otherwise the motor will not be straight and the gears will not mesh
properly.
