Ricon Mirage F9T User Manual

32DF9T02.C
1 - 8

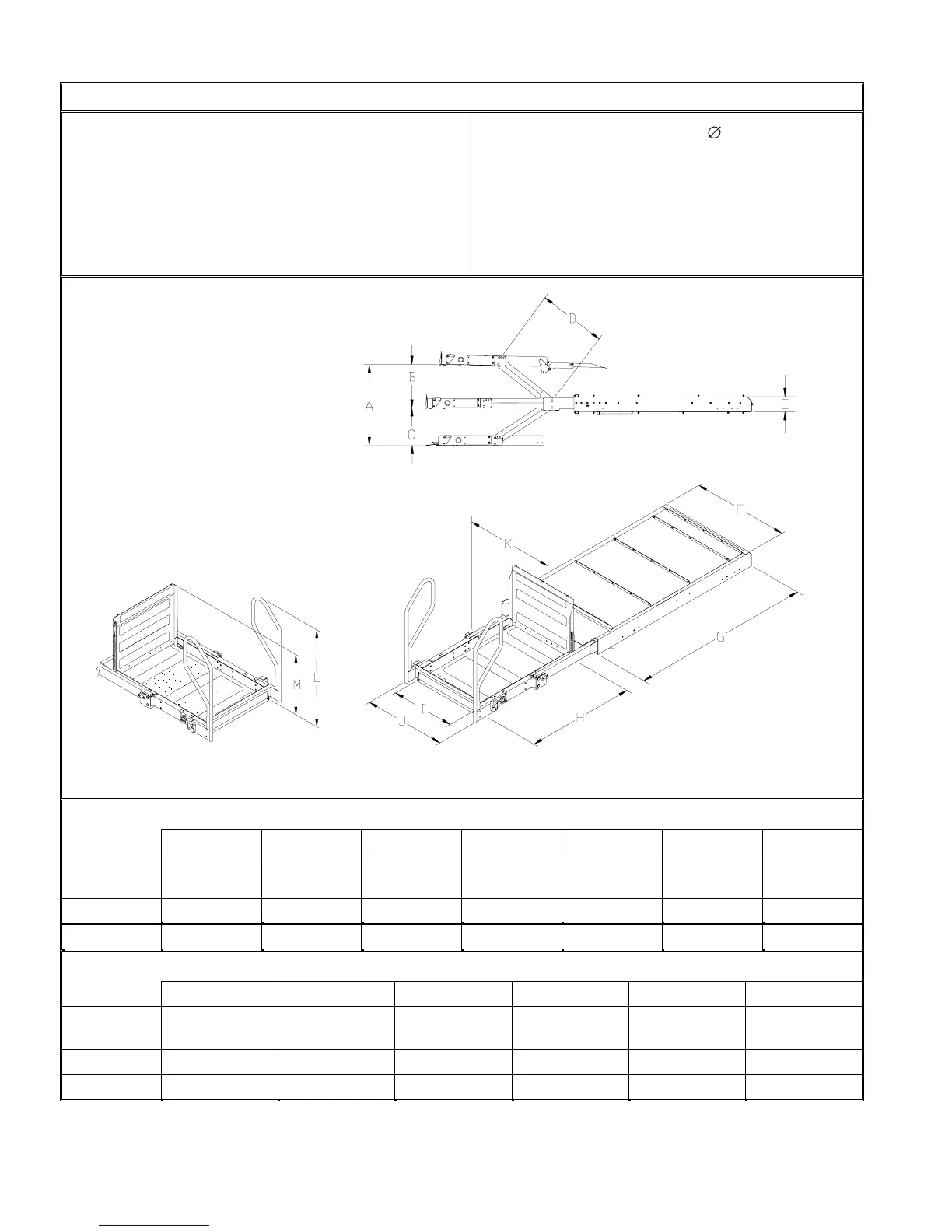

E. LIFT SPECIFICATIONS AND DIMENSIONS
MIRAGE F9T TRANSIT USE WHEELCHAIR AND STANDEE LIFT
Power.... electro-hydraulic (power-up/gravity-down)
Operating voltage range: 12 VDC ....... 11—14 volts
24 VDC ....... 21—27 volts
Pump rating: @ 12 VDC......... 1800 psi, 1250 watts
@ 24 VDC......... 1800 psi, 1250 watts
Hydraulic cylinder..................
3.0”, single acting
Rated load capacity................................... 660 lbs
Manual backup - up ........................... hand pump
Manual backup - down ..... pressure release valve
Lift Weight .................................... approx. 700 lbs
DIMENSIONS – inches
A B C D E F G
Model
Floor to
ground travel
Travel Above Travel Below Arm Length Enclosure
Height
Enclosure
Width
Enclosure
Length
F9T-DE/EX
40 17.5 21.8 30.3 9 42 81
F9T-SW/SG
39.3 17.5 21.8 30.3 9 42 81
DIMENSIONS – inches
H I J K L M
Model
Usable Platform
Length
Usable Platform
Width
Clear Entry
Width
Width Traveling
Frame
Handrail Height Bridgeplate
Height
F9T-DE/EX
48 32 30/35.5 41.4 32.0 10.5
F9T-SW/SG
48 32 30 41.4 31.5 24.5
