Ricon Mirage F9T User Manual

32DF9T02.C
4 - 3
C. TRAVELLING FRAME AND ROLLSTOP
The carriage, lifting frame, and platform are referred to as a “travelling frame” when assembled together.
1. ROLLSTOP MAINTENANCE
a. Rollstop Lubrication
1) Deploy platform using control pendant ( /OUT), and then support.
WARNING!
•• WEAR PROTECTIVE CLOTHING AND EYE PROTECTION AT ALL TIMES.
BATTERIES CONTAIN ACID THAT CAN BURN. IF ACID COMES INTO CON-
TACT WITH SKIN, IMMEDIATELY FLUSH AFFECTED AREA WITH WATER AND
WASH WITH SOAP.
•• WORK IN A PROPERLY VENTILATED AREA. DO NOT SMOKE OR USE AN
OPEN FLAME IN THE VICINITY OF BATTERY.
••• • DO NOT LAY ANYTHING METALLIC ON TOP OF BATTERY.
2) Disconnect positive battery cable at vehicle battery compartment.

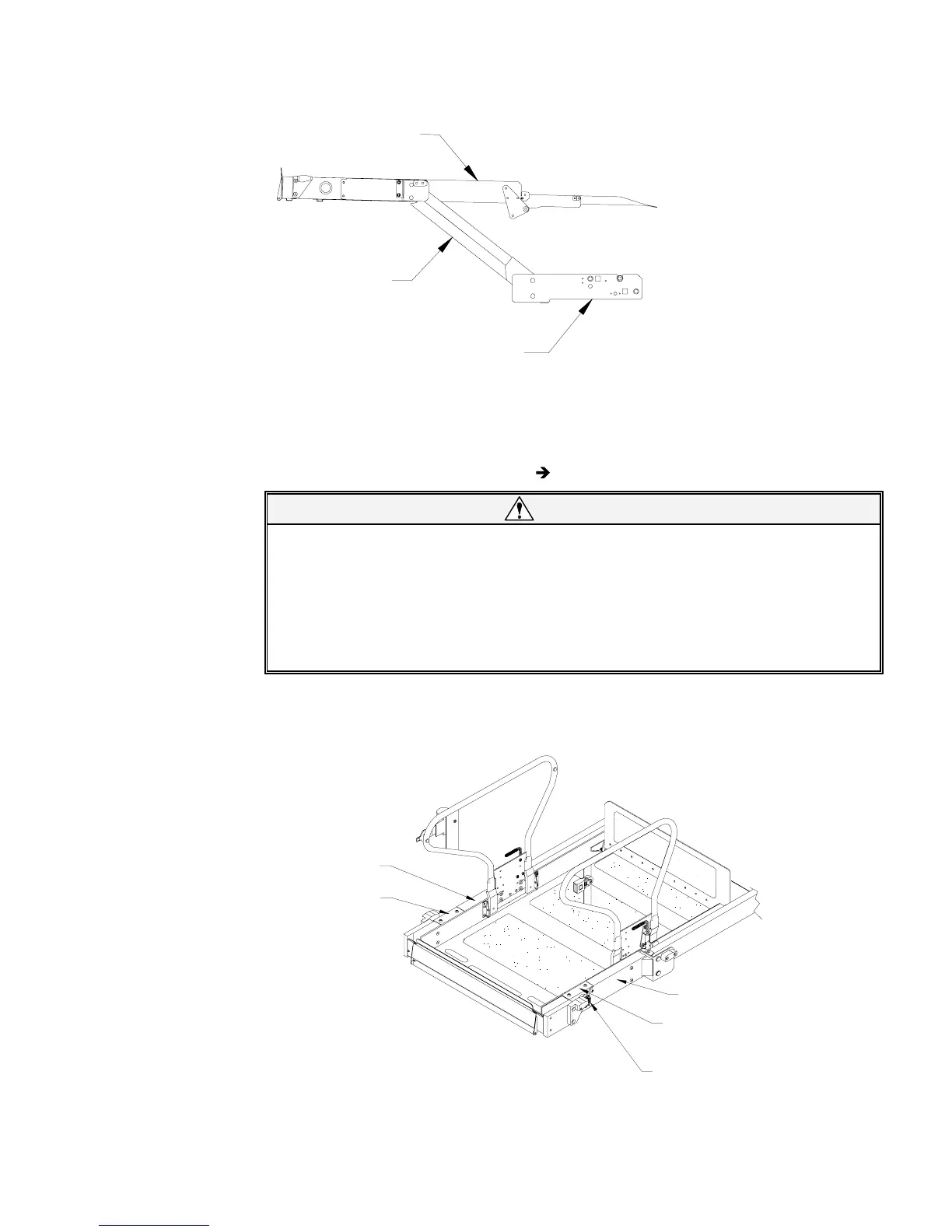

3) Refer to
Figure 4-3. Remove left and right rollstop covers (four screws and washers, each
side).
LEFT ROLLSTOP
COVER
LEFT ROLLSTOP
RELEASE BRACKET
MANUAL ROLLSTOP
CONTROL KNOB
RIGHT ROLLSTOP
ACTUATOR BRACKET
RIGHT ROLLSTOP
COVER
FIGURE 4-3: ACCESS COVERS FOR ROLLSTOP MECHANISM
PLATFORM
CARRIAGE
LIFTING
FRAME
FIGURE 4-2: TRAVELLING FRAME
