Ricon Mirage F9T User Manual

32DF9T02.C
4 - 2
B. LIFT ACCESS FOR SERVICE
Access to internal lift components is from beneath the enclosure. A hinged access panel is located on the
bottom of the enclosure, near the front.
1. Deploy platform using control pendant (
/OUT), and support.
WARNING
!
•• WEAR PROTECTIVE CLOTHING AND EYE PROTECTION AT ALL TIMES.
BATTERIES CONTAIN ACID THAT CAN BURN. IF ACID COMES INTO CON-
TACT WITH SKIN, IMMEDIATELY FLUSH AFFECTED AREA WITH WATER AND
WASH WITH SOAP.
•• WORK IN A PROPERLY VENTILATED AREA. DO NOT SMOKE OR USE AN
OPEN FLAME IN THE VICINITY OF BATTERY.
•• DO NOT LAY ANYTHING METALLIC ON TOP OF BATTERY.
2. Disconnect positive battery cable at vehicle battery compartment.
WARNING
!
THE SERVICE ACCESS PANEL IS HINGED ALONG THE REAR EDGE AND SHOULD
BE HELD UP WHILE REMOVING THE RETAINING SCREWS AT THE FRONT EDGE.
THIS WILL PREVENT PANEL FROM FALLING AND CAUSING INJURY OR DAMAGE.

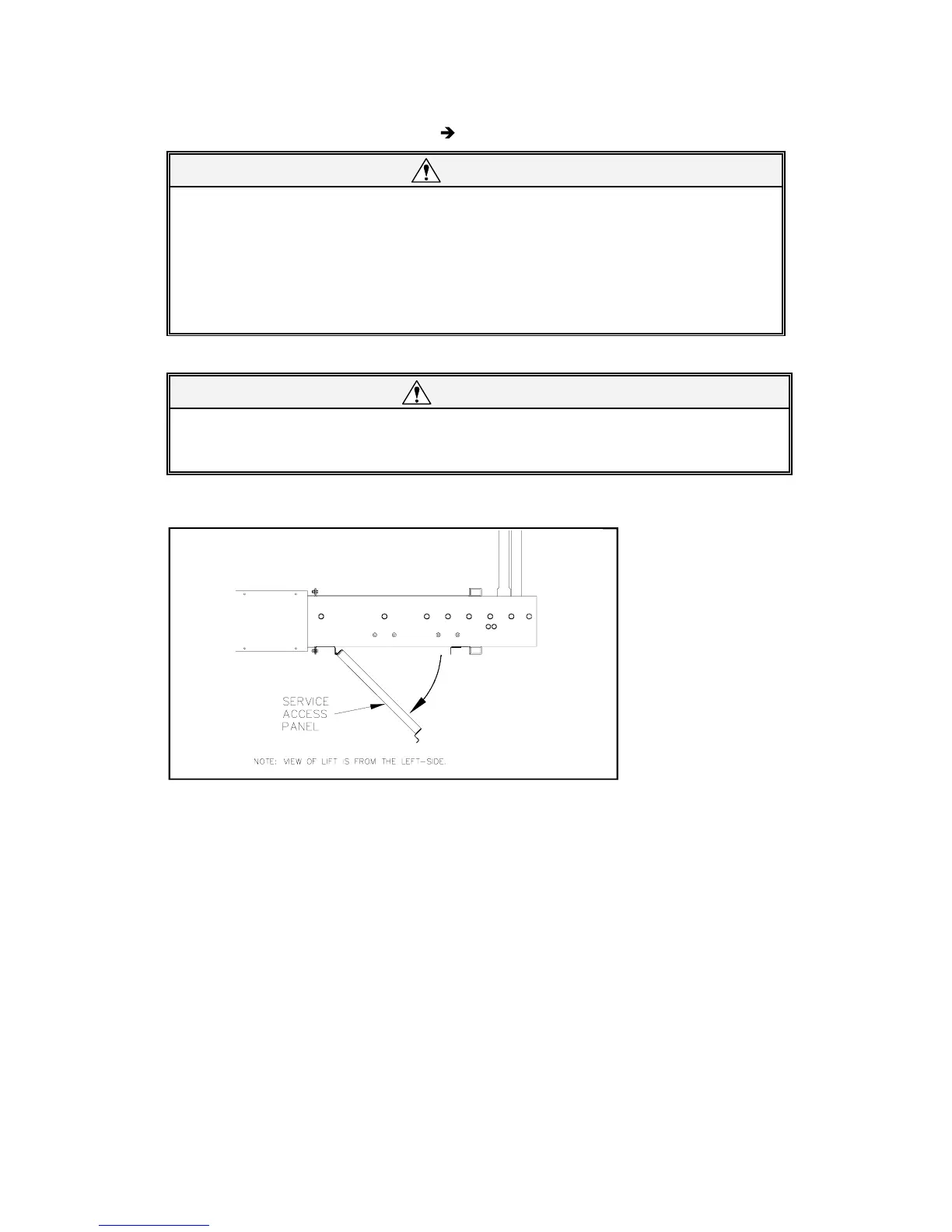

3. Refer to Figure 4-1. Hold service access panel up, remove the two retaining screws and lock-nuts at
front edge of panel, and then lower panel.
FIGURE 4-1: SERVICE ACCESS PANEL—OPEN
