32DF9T02.C
4 - 8
3. CARRIAGE MAINTENANCE
Refer to Figure 4-10. There are two large carriage rollers on each side of the carriage, and four small
guide rollers on the top. These rollers require lubrication on a periodic basis, dependant upon usage
and climate. Refer to the appropriate Mechanic Maintenance Checklist in the Maintenance chapter.
The large side rollers carry the weight of the travelling frame. They have grease fittings and must be
lubricated with Aeroshell #22, or equivalent.
The guide rollers can be lubricated by spraying a light grease (ZEP PLS, p/n 497C, Curtisol® Red
Grease p/n 88167, or equivalent) into the interior
of the roller.
4. PLATFORM REMOVAL
Refer to end of this section for re-installation notes.
a. Deploy platform using control pendant (
/OUT).
b. Refer to Figure 4-11. Remove lifting frame and lower arm assembly set screws at left and right
sides of platform.
GUIDE ROLLERS
CARRIAGE ROLLERS
2 EA
4 EA
CARRIAGE
ROLLERS
2 EA

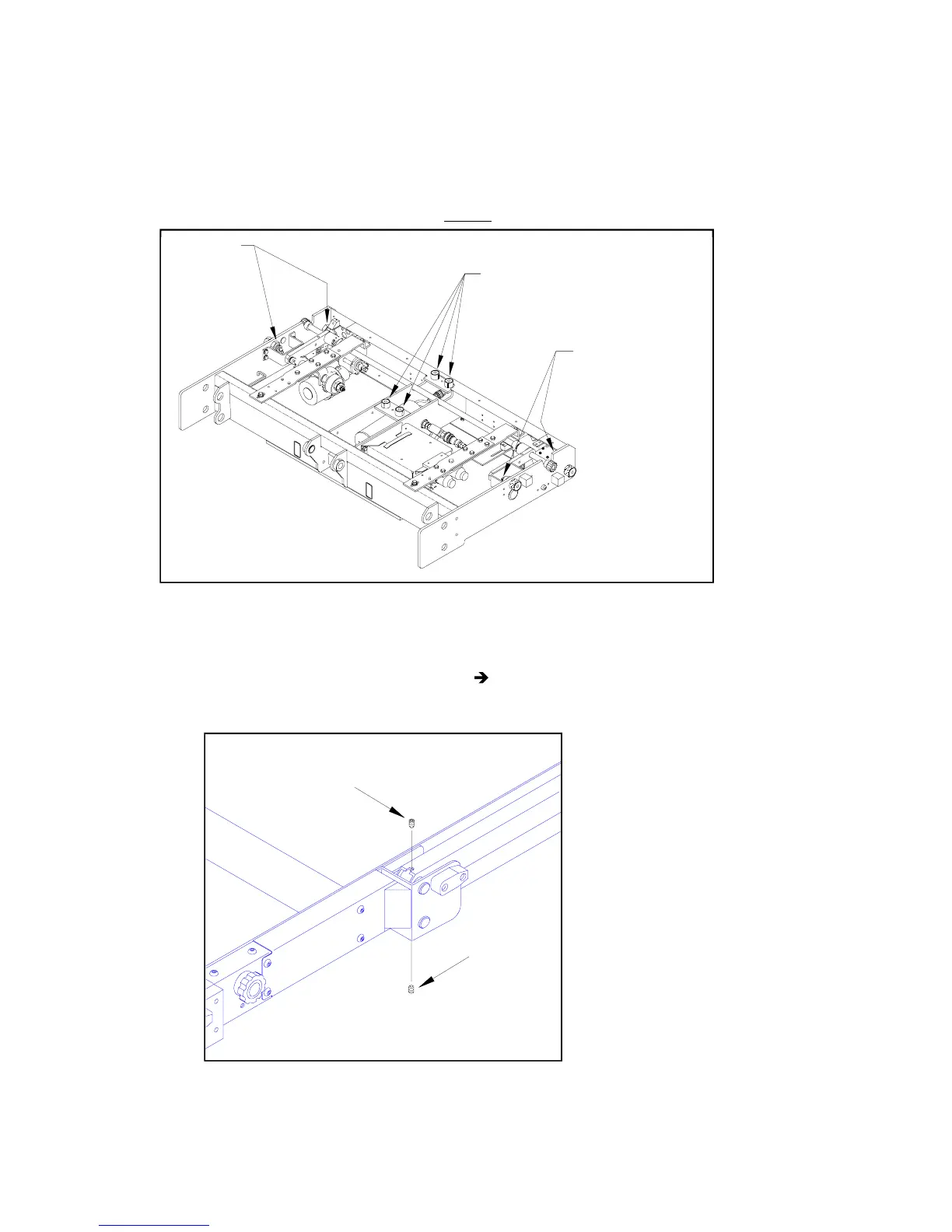

FIGURE 4-10: CARRIAGE ROLLER LUBRICATION
FIGURE 4-11: LIFTING FRAME AND
LOWER ARM SET SCREWS
LIFTING
FRAME
SET SCREW
LOWER ARM
ASSEMBLY
SET SCREW
