32DF9T02.C
2 - 8
7) Refer to Figure 2-5. The mating connector for the programming switch is attached to the
underside of the controller bracket. The connector is protected with a removable plug.
Connect programming switch to connector.
8) Press the OUT switch three times (OUT switch is upper portion of OUT/IN rocker switch on
control pendant). Press the programming switch button for approximately ten seconds to
program stow height. Disconnect programming switch and replace plug.
NOTE: The programming switch is enabled for a period of 5 minutes after the OUT switch is
pressed three times. The programming mode is ended when any other switch is used
during this period.
NOTE: The following two steps might lower the platform to a point slightly below the programmed
stow height, which is acceptable.
9) Raise platform (use pendant) at least one foot above stow height.
10) Stow platform from this raised position and stop its movement when platform has entered
enclosure approximately six inches.
NOTE: The following two steps might raise platform to a point slightly above the programmed stow
height, which is acceptable.
11) Deploy platform (use pendant) and lower it at least one foot below stow height.
12) Stow platform from this lowered position and stop its movement when platform has entered
enclosure approximately six inches.
13) Repeat steps nine and ten.
b. Program the Intermediate Height (Dedicated Entry model, only)
CAUTION!
Ricon recommends that stow height be programmed before intermediate height.
NOTE: This procedure may require use of manual back-up pump to raise platform because the
/UP button (on pendant) may be disabled. The /DOWN button can be used to lower
platform.
1) Deploy platform (use pendant).
NOTE: The platform must be fully deployed before controller can accept an intermediate height
value.
2) Raise platform to height preferred for intermediate position; this height must be at least two
feet above stow height.
3) Refer to
Figure 2-5. The mating connector for the optional programming switch is attached
to the underside of the controller bracket. The connector is protected with a removable
plug. Connect programming switch to connector.
4) Press the OUT switch three times (OUT switch is upper portion of OUT/IN rocker switch on
control pendant). Press the programming switch button for approximately ten seconds to
program intermediate height. Disconnect programming switch and replace plug.

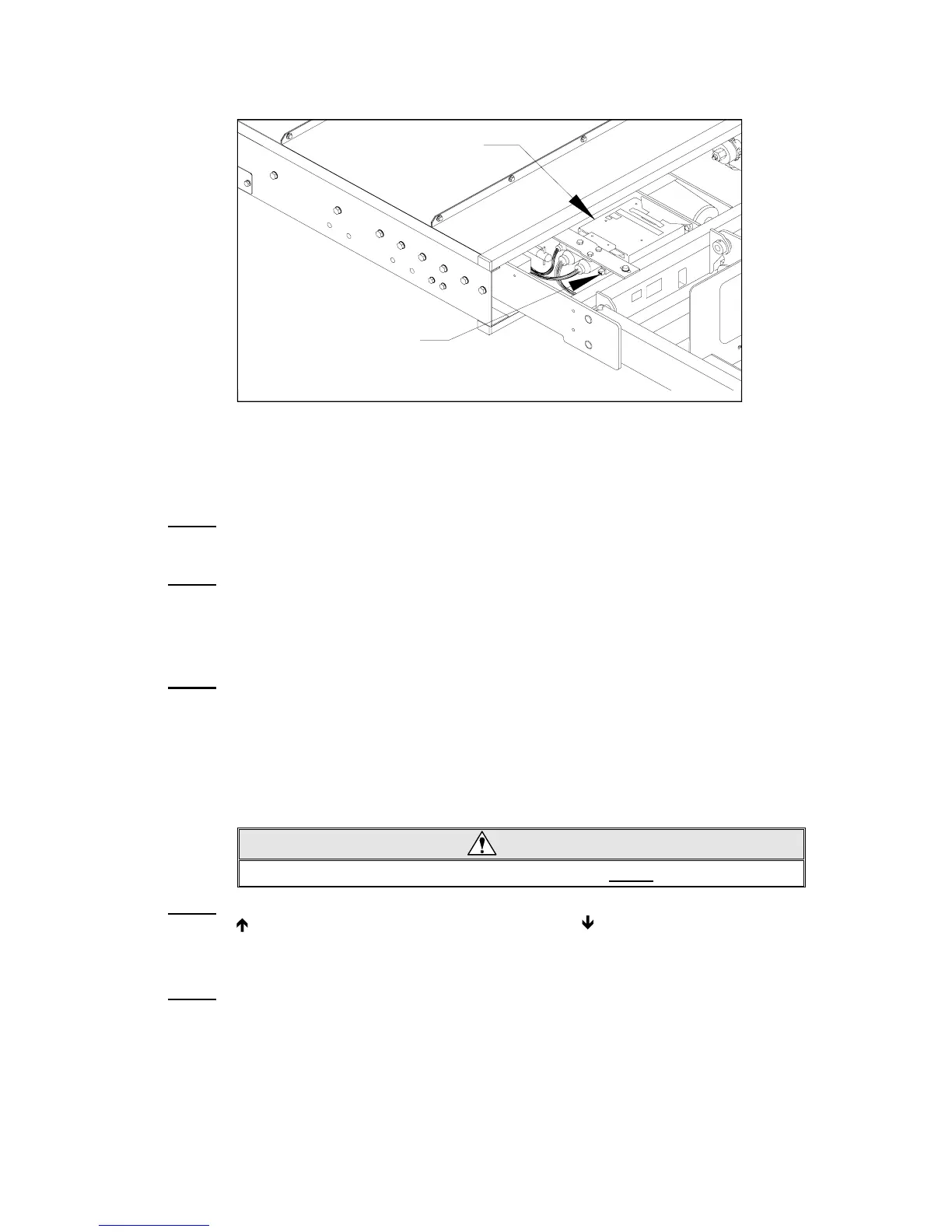

FIGURE 2-5: PROGRAMMING SWITCH CONNECTOR
[Right side pullbox model is shown; left side model is reversed]
PROGRAMMING SWITCH
CONNECTOR
CONTROLLER
