V. F9T SPARE PARTS
his chapter contains parts illustrations and parts lists for the RICON Mirage F9T Transit Use Wheelchair Lift.
Spare parts for both the Dedicated Entry model (DE) and the Stepwell model (SW) are included. Each exploded
view of a major lift assembly shows smaller assemblies, components, and kits referenced with numbers. The ac-
companying parts list has the part reference number, a part description, the quantity required for one major assembly,
and the Ricon part number. Dimensions included in the parts descriptions are in inches, unless otherwise noted. Also,
note that some parts are used exclusively for one application. These parts are identified at the end of their description
with either a “SW” or “DE” designation.
NOTE: To order a part–locate needed part on an exploded diagram, note its reference number, find this reference num-
ber on the associated parts list (following page), and order the part number in the far right column. Most kits
contain a single part (plus hardware, if applicable). Therefore, you may need to order more than one kit if the
part is used more than once on a major assembly.
SPECIAL TOOLS
Controller Programming Switch ............................................................................................................... 17885
PARTS DIAGRAMS .........................................................................................................................PAGE
FIGURE 5-1 F9T STEPWELL MODEL DECALS—LOCATIONS AND PART NUMBERS ............................ 5-2
FIGURE 5-2 F9T DEDICATED ENTRY MODEL DECALS—LOCATIONS AND PART NUMBERS ............. 5-3
FIGURE 5-3 F9T PUMP BOX ASSEMBLY.................................................................................................…5-4
FIGURE 5-4 F9T LIFTING FRAME ASSEMBLY............................................................................................ 5-6
FIGURE 5-5 F9T ENCLOSURE ASSEMBLY................................................................................................. 5-8
FIGURE 5-6 F9T PLATFORM ASSEMBLY, DEDICATED ENTRY ............................................................. 5-10
FIGURE 5-7 F9T PLATFORM ASSEMBLY, STEPWELL ............................................................................ 5-12
FIGURE 5-8 F9T PLATFORM ASSEMBLY, LEFT SIDE DETAIL ............................................................... 5-14
FIGURE 5-9 F9T PLATFORM ASSEMBLY, RIGHT SIDE DETAIL ............................................................. 5-16
FIGURE 5-10 F9T BRIDGEPLATE ASSEMBLY, DEDICATED ENTRY........................................................ 5-18
FIGURE 5-11 F9T BRIDGEPLATE ASSEMBLY, STEPWELL ...................................................................... 5-20
FIGURE 5-12 F9T CARRIAGE ASSEMBLY—SHEET 1 ............................................................................... 5-22
FIGURE 5-13 F9T CARRIAGE ASSEMBLY—SHEET 2 ............................................................................... 5-23
FIGURE 5-14 F9T PENDANT ASSEMBLY.................................................................................................... 5-26
T

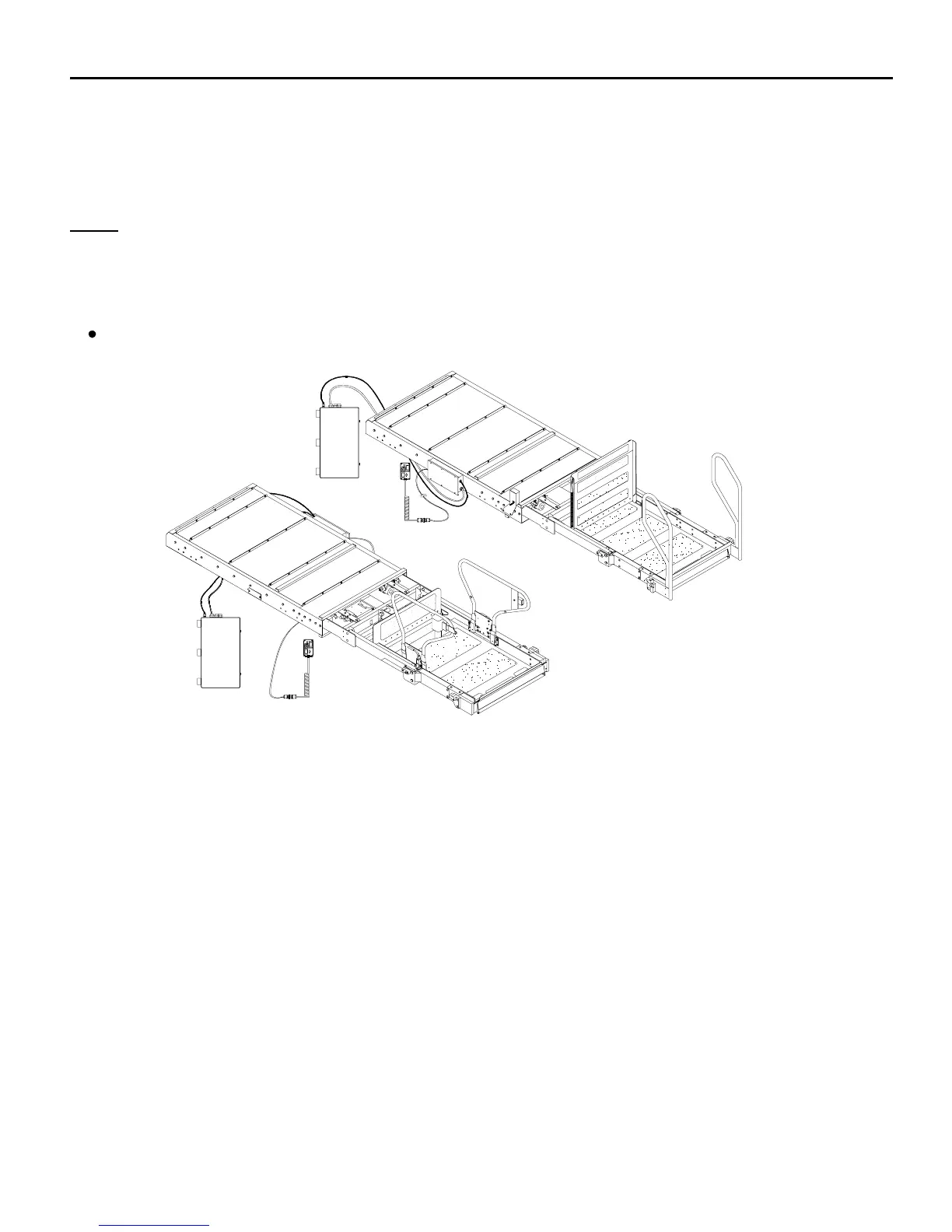

DEDICATED ENTRY MODEL (DE)
STEPWELL MODEL (SW)
