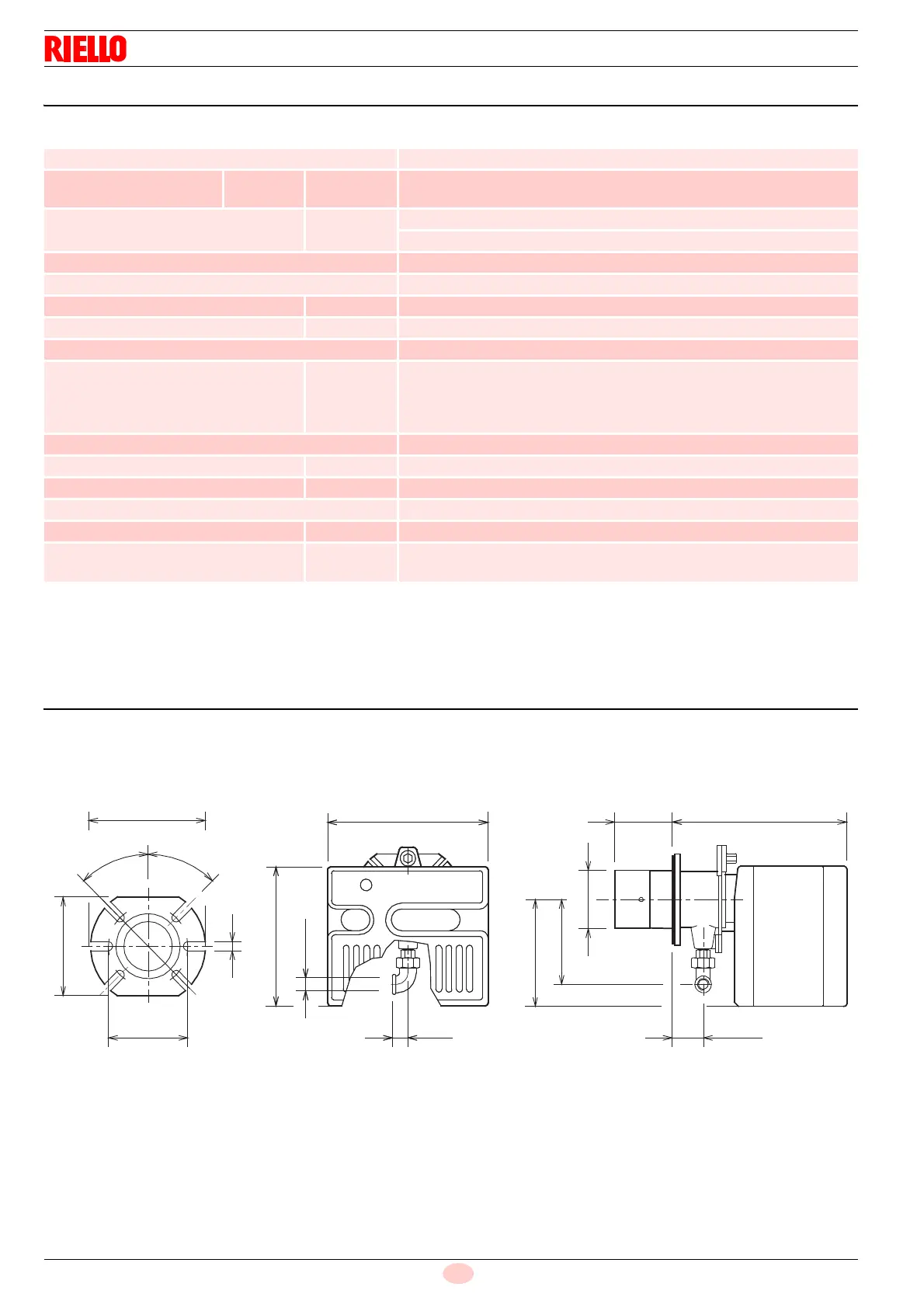

Riello 40 FS - Technical Data; Maximum Dimensions

20063732
8
GB
Technical description of the burner
4.4 Technical data
Tab. C
(1)
Reference conditions: Room temperature 20°C - Gas temperature 15°C - Barometric pressure 1013 mbar - Altitude 0 m a.s.l.
(2)
Sound pressure measured in manufacturer's combustion laboratory, with burner operating on test boiler and at maximum rated output. The sound
power is measured with the “Free Field” method, as per EN 15036, and according to an “Accuracy: Category 3” measuring accuracy, as set out in
EN ISO 3746.
4.5 Maximum dimensions
The maximum dimensions of the flange and burner are given in
Fig. 1.
Model RIELLO 40 FS10
Type 564T30
Heat output (Hi)
(1)
min - max
kW
kcal/h
42  116
36,000  100,000
Fuel
Family 2
NCV 8  12 kWh/m
3
– 7,000 10,340 kcal/m
3
Pressure: min. 18 mbar – max. 360 mbar
Operation Intermittent (FS1)
Use Boilers: water and diathermic oil
Ambient temperature °C 0 - 50
Combustion air temperature °C max 60
Electrical supply 1/230V/50Hz
Fan motor rpm - rad/s
V - Hz
W
A
2800 - 294
230 - 50
90
0.75
Ignition transformer Primary 230V / 1.8A - Secondary 8 kV / 30 mA
Capacitor F 4
Absorbed electrical power kW 0.13
Protection level IP40
Weight kg 16
Noise levels
(2)
Sound pressure
Sound power
dB(A)
63.1
74.7
Fig. 1
Flange Burner
305 110 346
185
33
61
4
5
°
4
5
°
Ø 105
262
160
Rp 3/4
204
142
D4251
130
11
