Technical description of the burner
4.6 Maximum dimensions

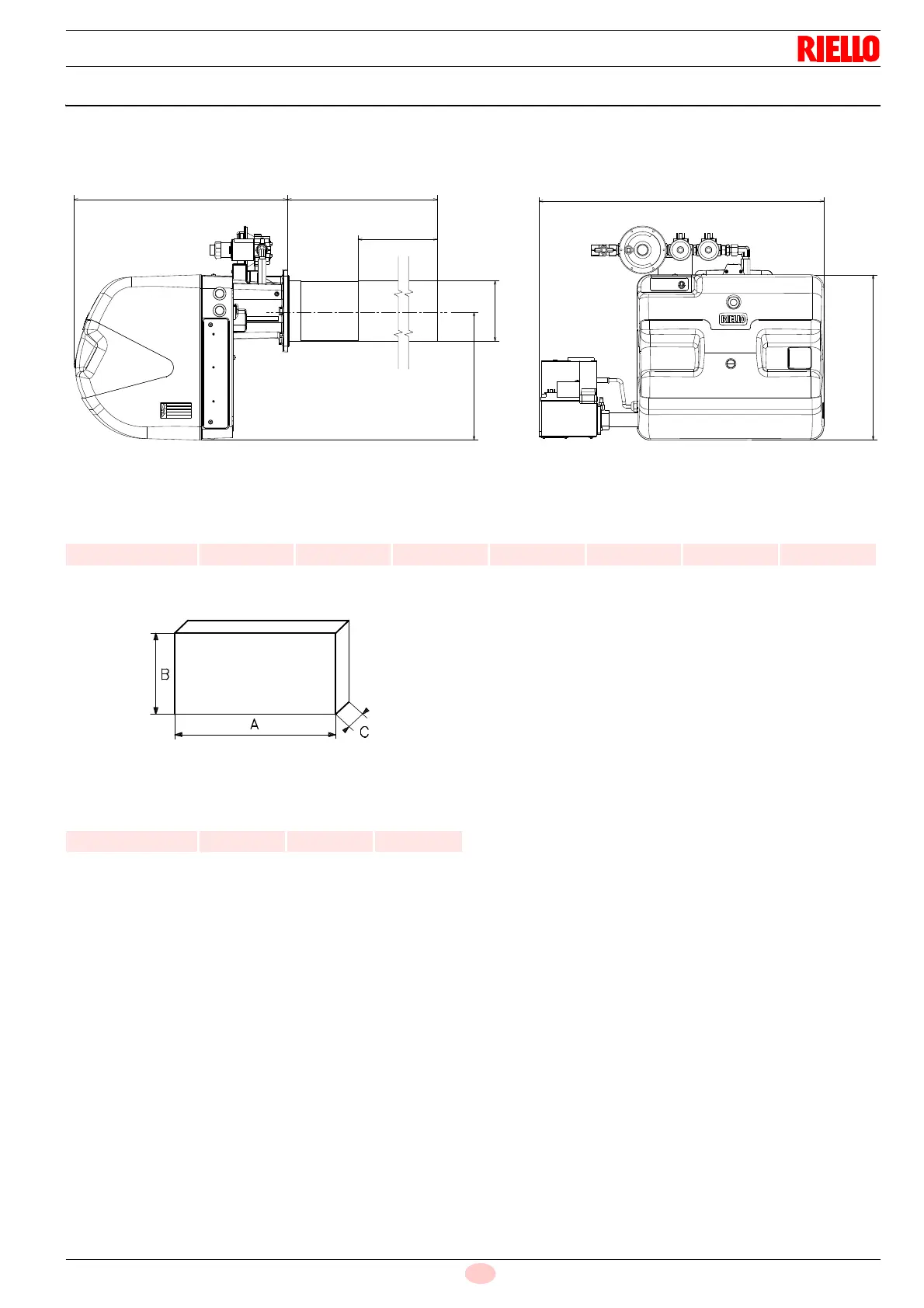

The maximum dimensions of the burner and flange are shown in
Fig. 1.
Tab. D
Tab. E
Fig. 1
L
H
T
TX
D
E
P
20160386
mm H L P T TX D E
RX 180-250 S/PV 390 640 503 465 320 119 306
mm A B C
RX 180-250 S/PV 1218 564 485
D88
Fig. 2
