Riello 908T4 - Adjustment Pilot

13
20160576
GB
Technical description of the burner

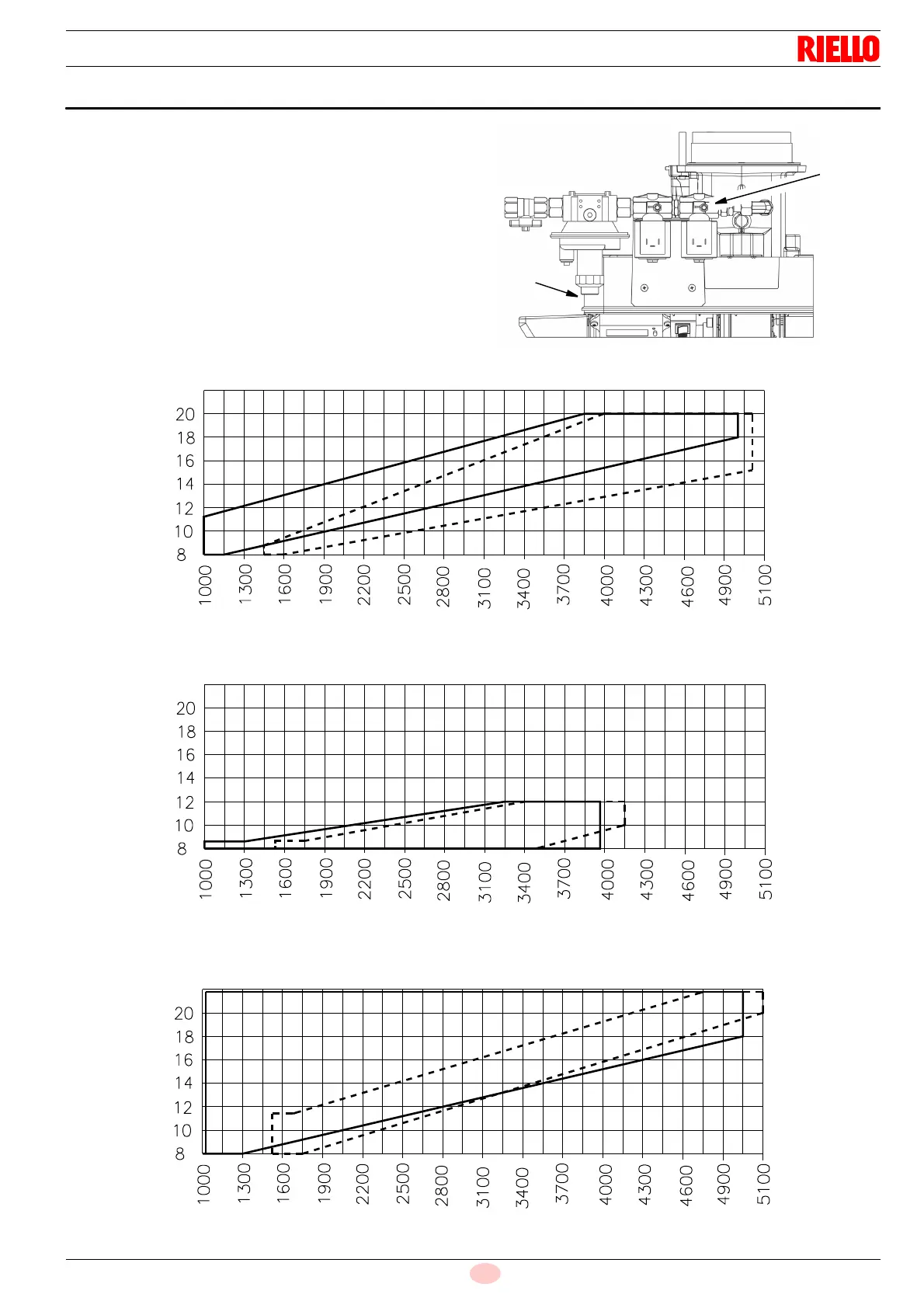

4.12 Adjustment pilot
The diagrams allow to choose the optimal gas pressure at the pi-
lot according to the revolutions at the ignition (PO) and the CO
2
to which you want to calibrate it.
The pressure test point to be used is shown in
Fig. 6.
S9796
Fig. 6
Pilot
pressure
test point
Pressure
adjuster
20160391
RX 180/PV G20
RX 180/PV GPL
RX 180/PV G25
Pressure outlet gas pilot - mbar
No. of motor turns/min.
Pressure outlet gas pilot - mbarPressure outlet gas pilot - mbar
No. of motor turns/min.
No. of motor turns/min.
Fig. 7
