Riello 908T4 - Securing the Burner to the Boiler

20160576
24
GB
Installation

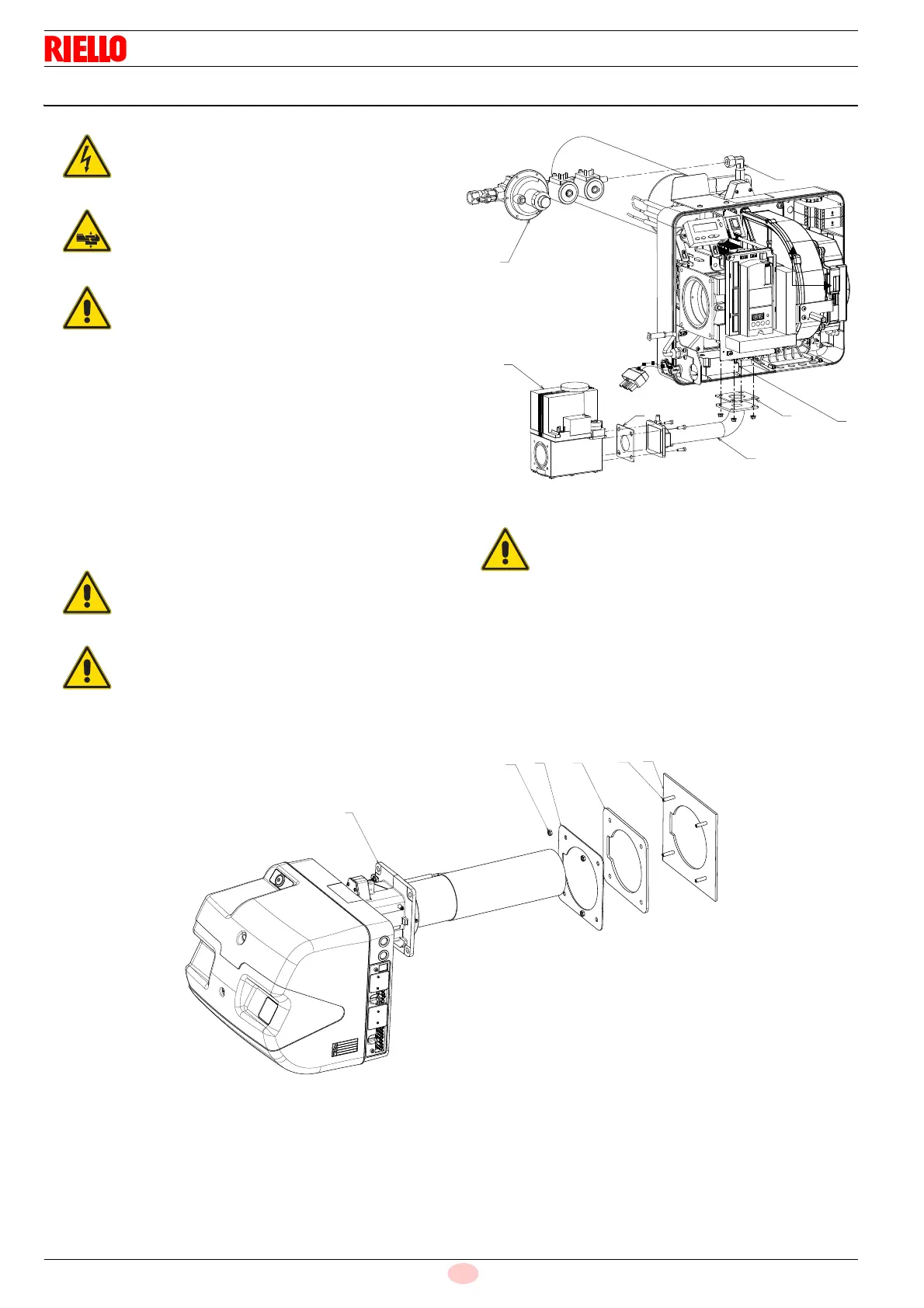

5.7 Securing the burner to the boiler
In order to fix the burner to the boiler, proceed as follows:
 connect the high voltage cables to the transformer
1)(Fig. 20), and the ionisation probe lead to the appropriate
cable emerging from the control box.
 Fix the gas train unit 2)(Fig. 20) and the gas pipe (3) with the
screws, nuts and the washers supplied as standard equip-
ment. Interpose the gaskets (5) as in Fig. 20.
 Assemble the pilot train supplied as standard 4)(Fig. 20).
 Check that the sealing ogive is inside the connector 8).
 Insert the pilot train 4)(Fig. 20) on connector 6) and tighten
the nut fully home.
 Install the gas train following the instructions on pag. 26.
 Screw the studs 2)(Fig. 21) onto the boiler plate 1).
 Position the refractory gasket 3).
 Position the silicone rubber gasket 4).
 Fix the flange of the burner (Fig. 21) to the boiler plate and
tighten the nuts 5)(Fig. 21).
DANGER
All the installation, maintenance and disassembly
operations must be carried out with the electricity
supply disconnected.
Provide an adequate lifting system.
WARNING
The seal between burner and boiler must be air-
tight.
WARNING
Be aware of the presence of the gasket 5)(Fig. 20)
and the gas seal.
WARNING
Use a suitable sealant and check the general gas
seal during operation, in particular with respect to
tube 3)(Fig. 20).
WARNING
During this operation, take care not to touch the
electrode unit.
1
2
5
5
3
4
6
Fig. 20
20160382
1
2
3
4
5
6
Fig. 21
D8666
