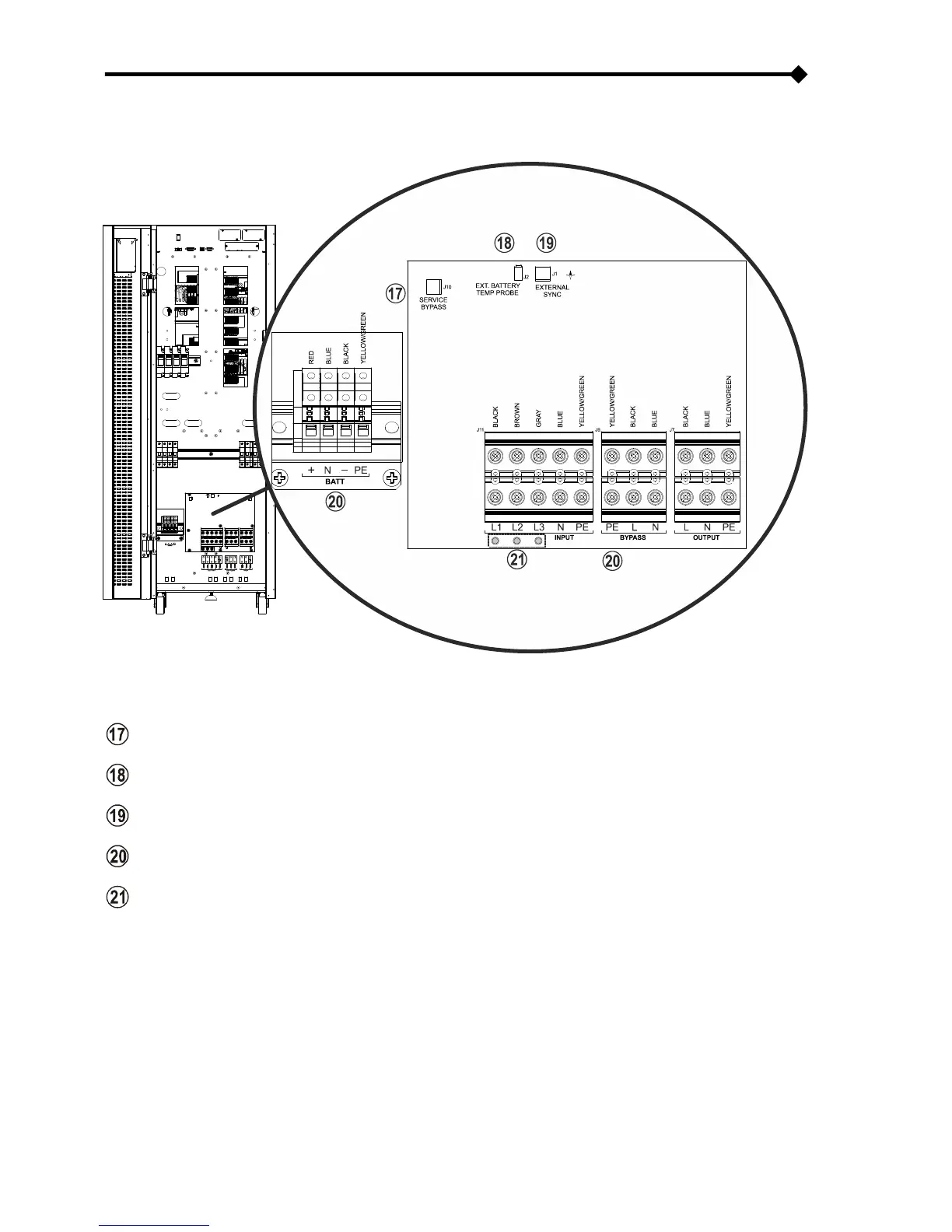

VIEW OF THE MSM CONNECTIONS
Connection for remote maintenance bypass command
Connection for external Battery Box temperature probe
Connection for external synchronization signal
Power connections: BATTERY, INPUT, SEPARATE BYPASS (optional), OUTPUT
Area for the single-phase short-circuit bar
