Rigol DHO800 Series Quick Guide

1
2
6
3
8
9
10
11
12
14
15
16
5
4
7

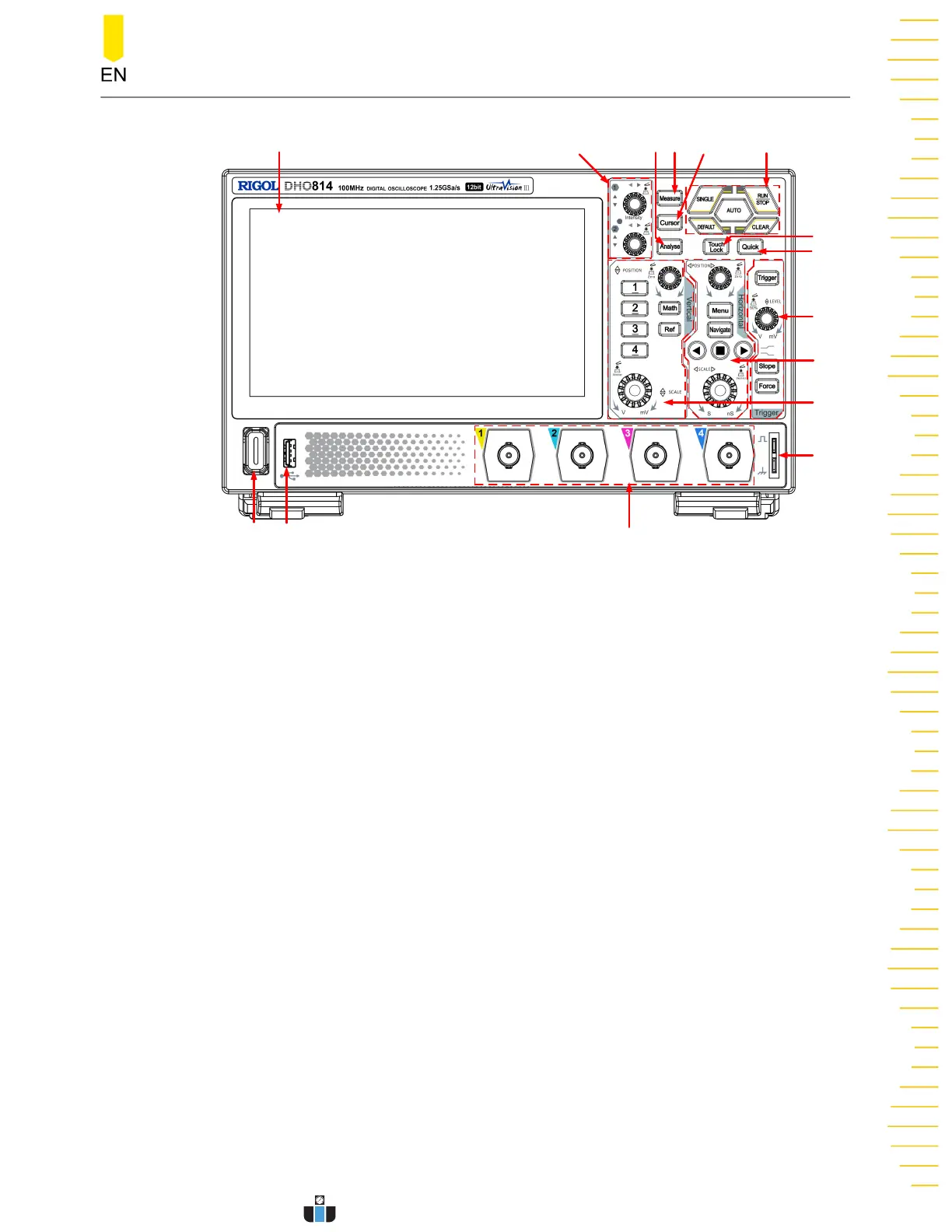

Figure 4.4 Front Panel (4-channel Model)
1
7'' Capacitive Touch Screen 9 Trigger Controls
2 Multipurpose Knobs 10 Horizontal Controls
3 Analyse Key 11 Vertical Controls
4 Measure Key 12 Probe Compensation Signal
Output Terminal/Ground Terminal
5 Cursor Key 13 External Trigger Input Terminal (for
two-channel models only)
6 Common Tools Keys 14 Analog Channel Input Terminals
7 Touch Lock Key 15 USB HOST Port
8 Quick Action Key (Self-defined
function)
16 Power Key
Product Overview
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
11
www.calcert.com sales@calcert.com1.888.610.7664
0
5
10
15
20
25
30

Rigol DHO800 Series Specifications

General

Channels	2 or 4 analog channels
Vertical Resolution	12-bit
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	1 ns/div to 1000 s/div
Power Supply	100-240 VAC, 50/60 Hz
Waveform Capture Rate	1, 000, 000 wfm/s
Interfaces	USB Host, USB Device, LAN
Digital Channels	Optional 16-channel MSO
Protocols Decoding	I2C, SPI, UART, CAN, LIN
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse, Video, Slope, Pattern, Duration, Timeout, Runt, Window
