Rigol DHO800 Series

4.3 Rear Panel Overview
3
2
4
6
5
1
7
8

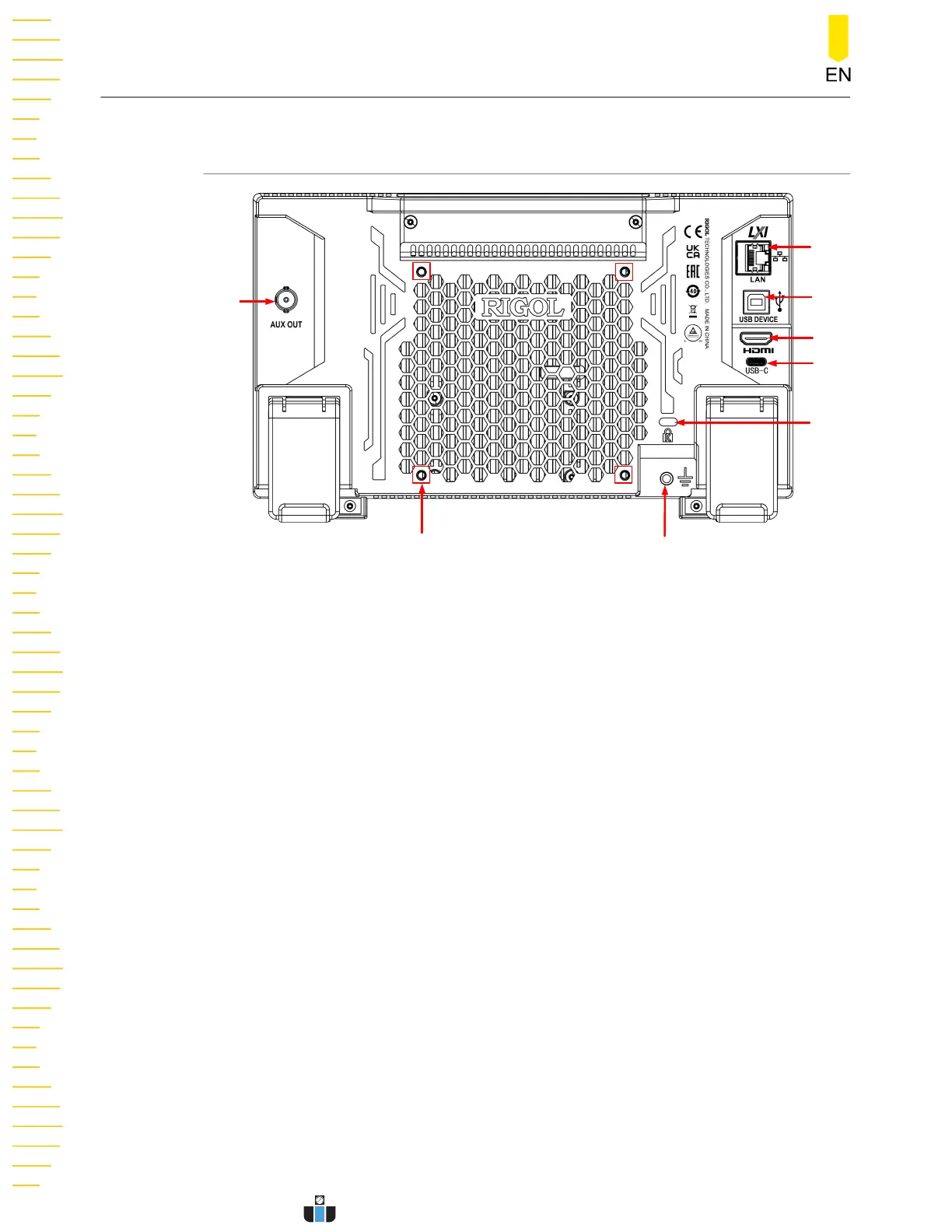

Figure 4.5 Rear Panel
1
AUX OUT Interface
2 LAN Port
3 USB DEVICE Port
4 HDMI Connector
5 USB Type-C Power Connector
6 Security Lock Hole
7 Ground Terminal
8 Mounting Screws (VESA 100 x 100)
