Rigol DM3000 Series User Manual

RIGOL
© 2007 RIGOL Technologies, Inc.
User‟s Guide for DM3000 Series
3-6

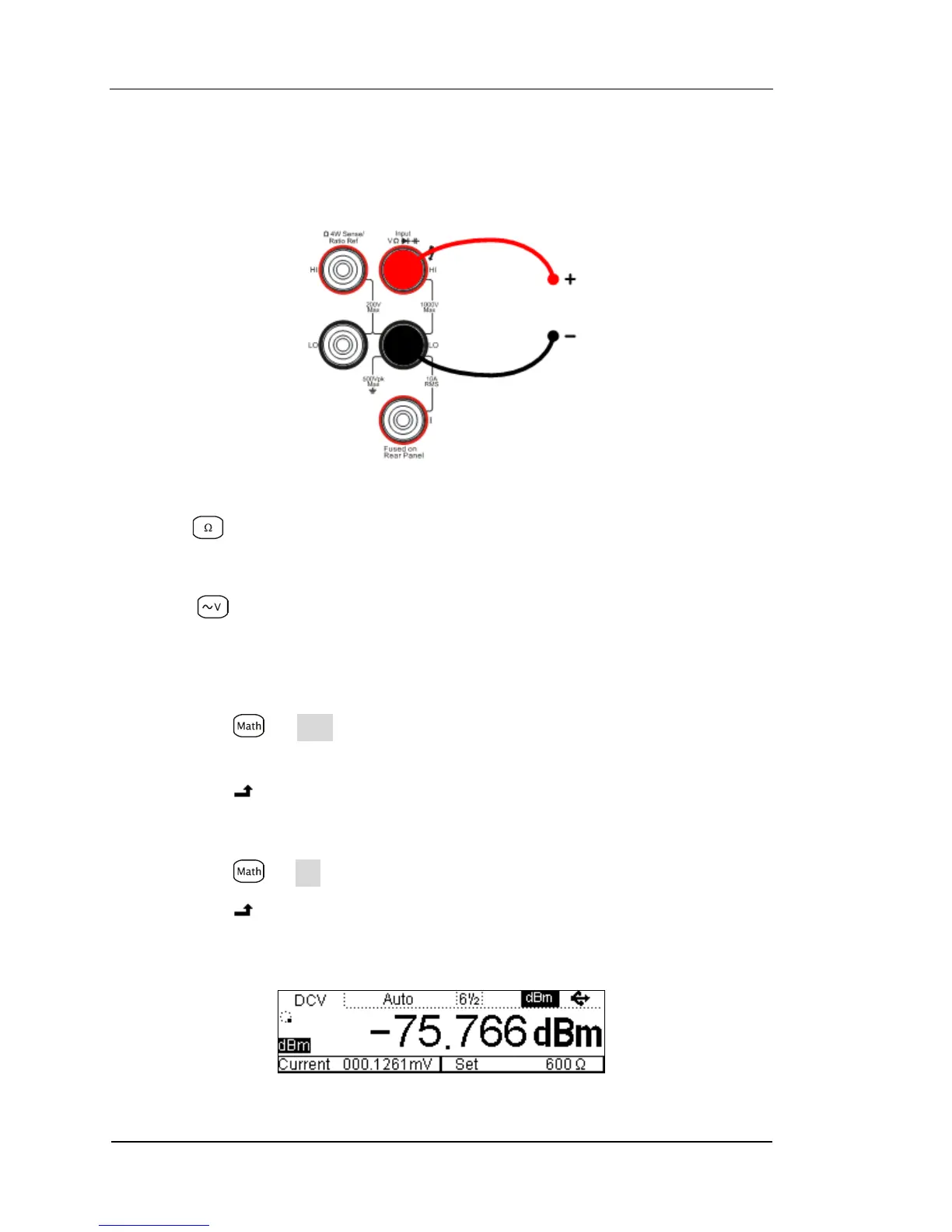

Example 3: dBm Measurement
Do these steps as follow:
1. Connect test leads into the circuit as shown below:
Figure 3- 5 Connect the Test Leads
2. Press button, select Resistance (2WR) measurement function. Choose an
appropriate measurement range. Write down the reading count.
3. Press button, select AC Voltage measurement function. Choose an
appropriate measurement range.
4. Set the dBm measurement function parameters.
(1). Press  dBm to set the Resistance measurement value as the dBm
setting value.
(2). Press , save all changes, back to a higher level menu.
5. Start dBm measurement.
(1). Press  ON to turn on dBm measurement function.
(2). Press , and finish this setting.
6. Lead test leads into circuit and start to measure. The display is the dBm of the
setting resistance.
Figure 3- 6
Circuit
