2. Limit Measurement
Use the Limit test function to perform pass/fail testing with respect to specified
upper and lower limits. The limits can be set to any value between 0 and ± 120% of
the highest range of the current function. The upper limit must be positive than the
lower limit.
Press  Limit, the display shows:

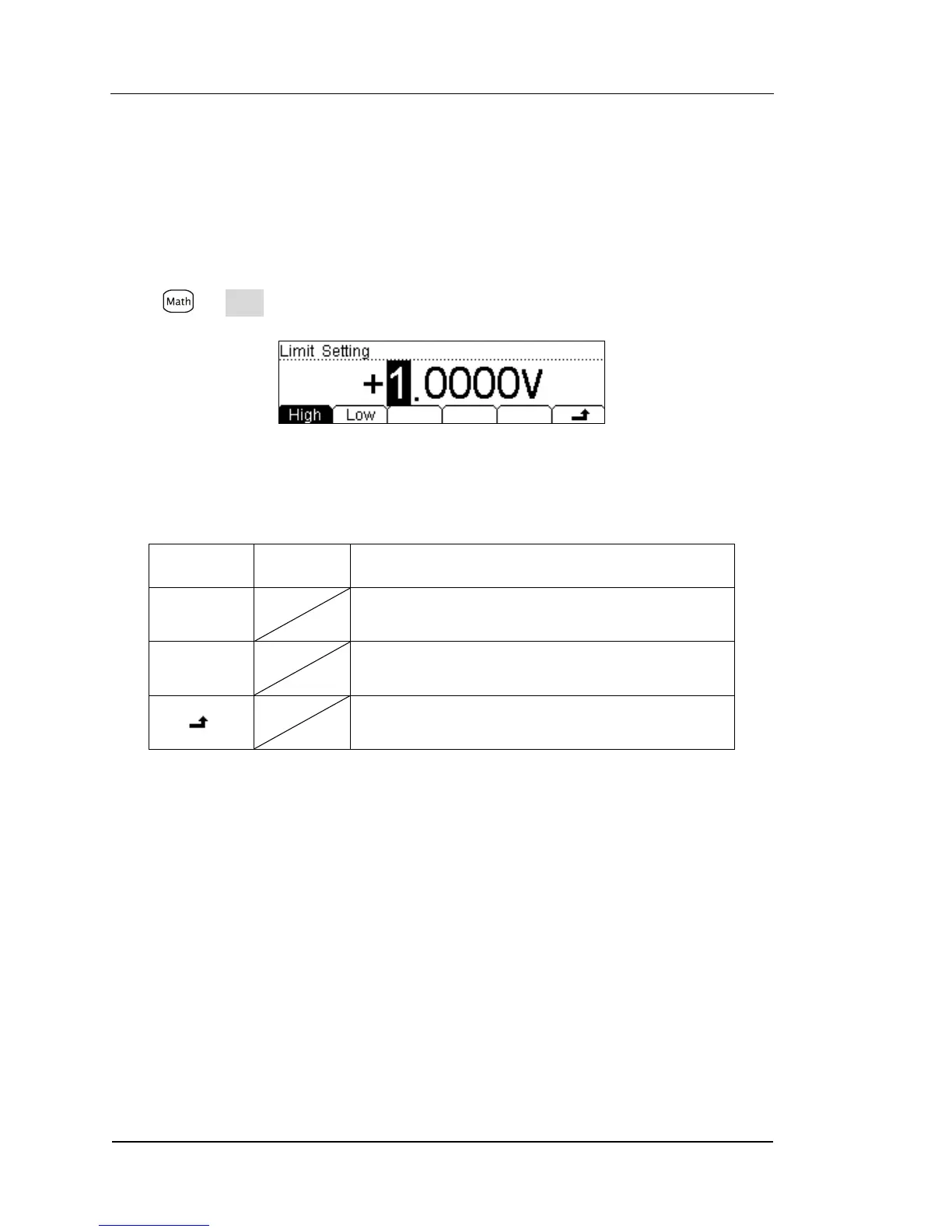

Figure 2- 15
Table 2- 12 Limit Measurement Menu Function Description
The range of Limit function:
(1). The limit value scope is 0%~± 120% of the current measurement range.
(2). The upper limit value should be always bigger than the lower limit value.
Function
Menu
Settings
Description
High
Set the desired Upper limit.
Low
Set the desired Lower limit.
Save all changes, back to a higher level menu.
