User‟s Guide for DM3000 Series
3-9

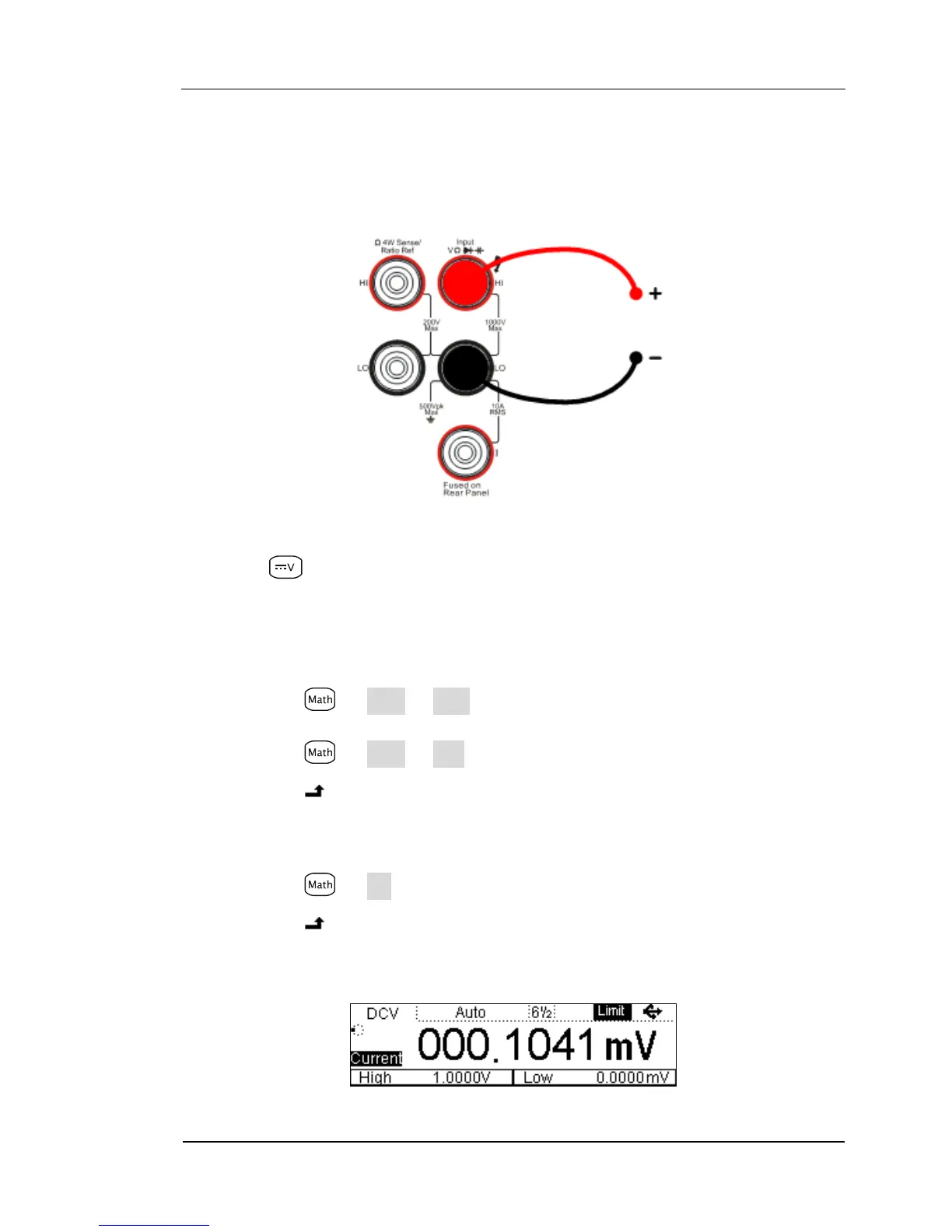

Example 5: Limit Test
Do these steps as follows:
1. To measure a DC Voltage. Connect test leads as shown below:
Figure 3- 9 Measure DC Voltage
2. Press button, select DC Voltage measurement function. Choose an
appropriate measurement range.
3. Set the Limit measurement function parameters.
(1). Press  Limit  High, Set up the upper value.
(2). Press  Limit  Low, Set up the lower value.
(3). Press , save all changes, back to a higher level menu.
4. Start Limit measurement.
(1). Press  ON, turn on Limit measurement function.
(2). Press to finish this setting.
5. Lead test leads into circuit and start to measure.
Figure 3- 10
DC Voltage
