Rigol DM3000 Series User Manual

RIGOL
© 2007 RIGOL Technologies, Inc.
User‟s Guide for DM3000 Series
2-10
Frequency Measurement
Frequency measurement function is used for measuring the frequency of AC signal
(voltage and current) only.

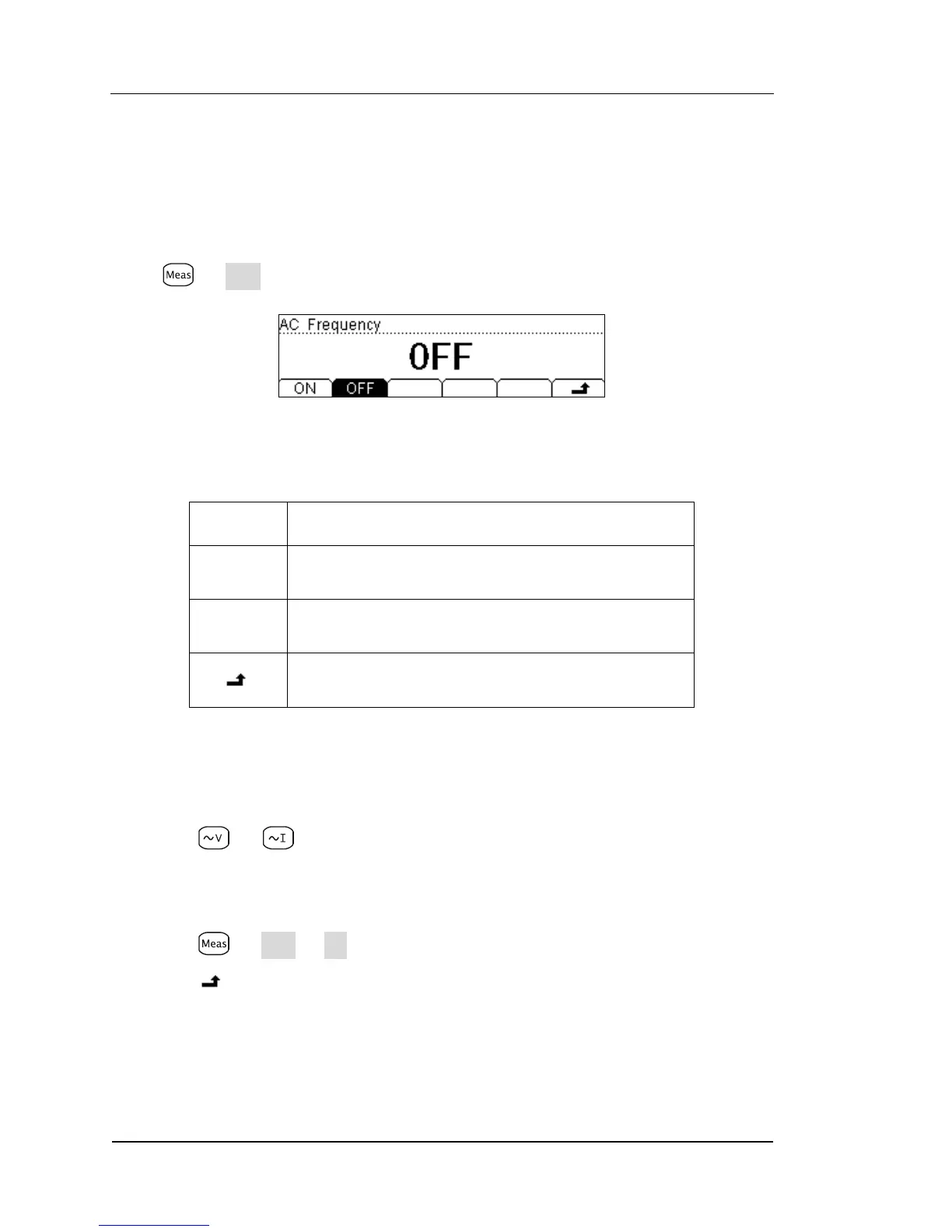

Press  Freq, the display shows:
Figure 2- 7
Table 2- 7 Ratio Measurement Menu Description
Function
Menu
Description
ON
Activate the Frequency Measurement Function
OFF
Deactivate the Frequency Measurement Function
Save all changes, back to a higher level menu.
Basic measurement:
1. Connect test leads as shown in Figure 2-9; red test lead to the HI Terminal, black
test lead to the LO Terminal.
2. Press or to select the AC voltage or current measurement function.
3. Choose the appropriate range.
4. Set up the AC Frequency Measurement.
Press  Freq  On, to start the AC Frequency Measurement.
Press to save all changes, back to a higher level menu.
