User‟s Guide for DM3000 Series
2-18
4. dBm Measurement
This function applies to AC voltage and DC voltage measurements only.
The dBm function is logarithmic, and is based on a calculation of power delivered to
a reference resistance, relative to 1 milliwatt.
Press  dBm, the display shows:

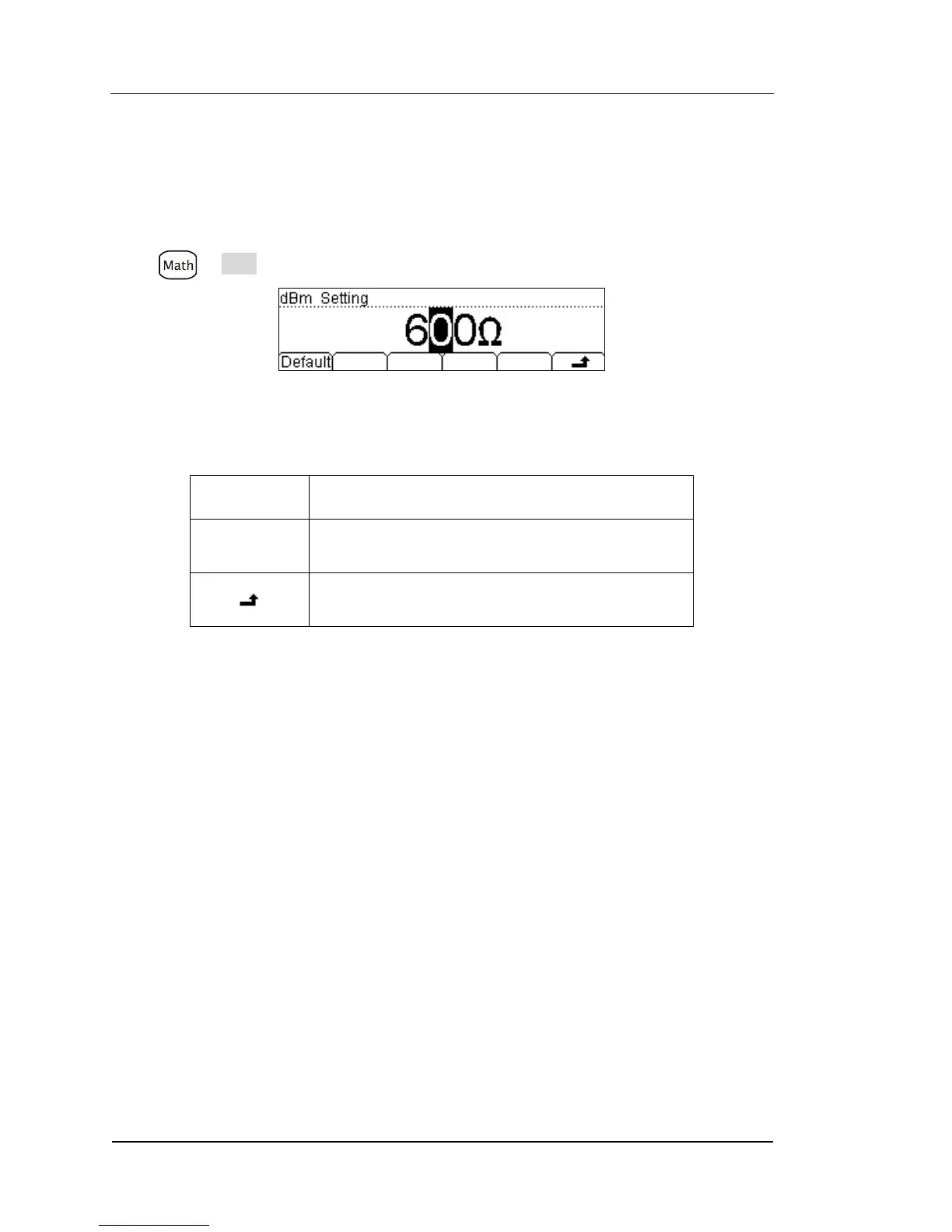

Figure 2- 17
Table 2- 14 dB Measurement Function Menu Function Description
Function
Menu
Description
Default
Use the default value.
Save all changes, back to a higher level menu.
The computation method of the dBm:
dBm = 10 x Log
10
[ (Reading
2
/ R
REF
) / 0.001W ]
R
REF
expressed measuring the resistance value in the actual electric circuit.
