Auto Triggering
Auto triggering takes continuous measurement at the highest sample rate for the
specified measurement configuration (function, range, resolution, and so forth).
Auto trigger is the default trigger mode at system power up.

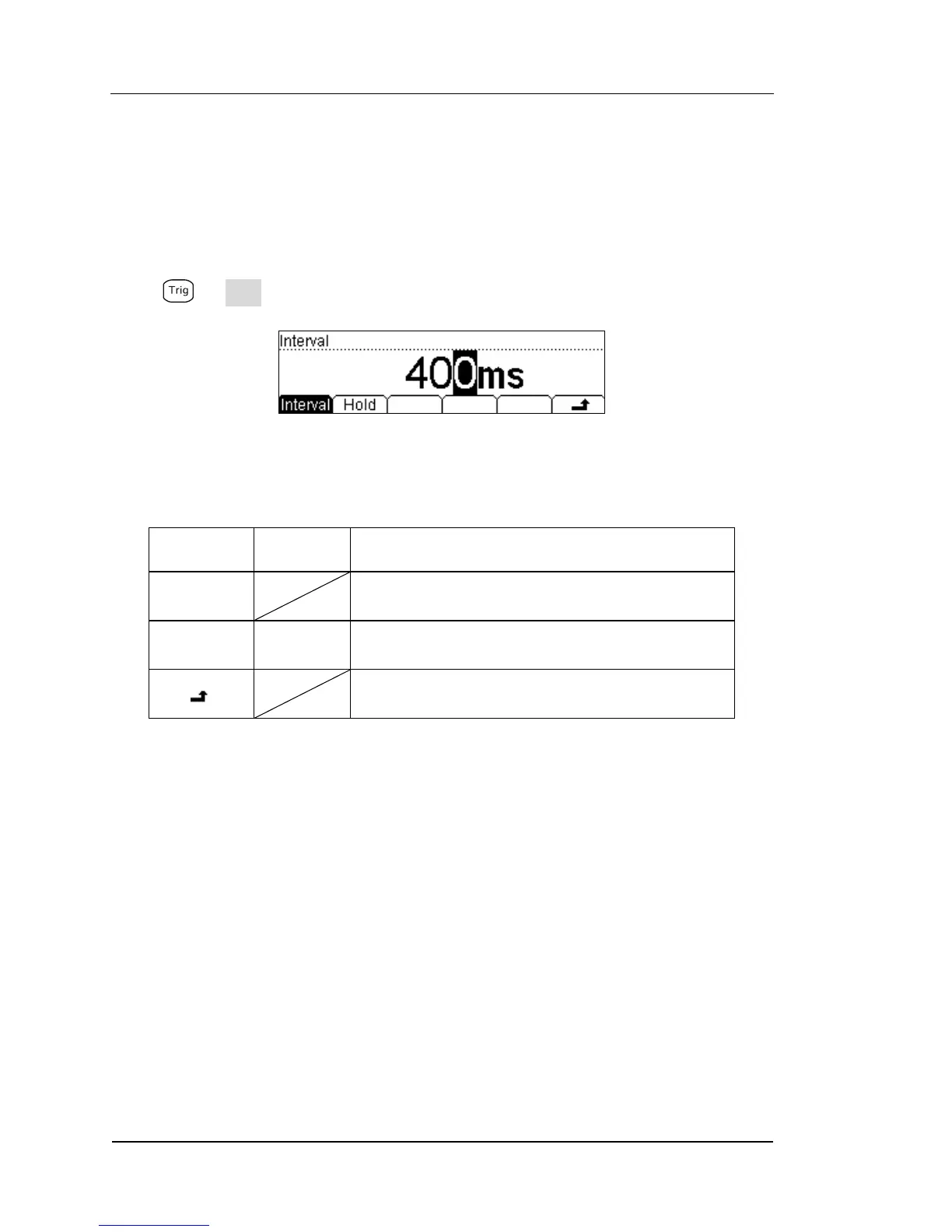

Press  Auto, the display shows:
Figure 2- 19
Table 2- 16 Auto Trigger Function Menu Description
Interval time:
The delay between the trigger signal and the first sample taken. This is useful in
applications when the input signal settles before taking a reading, or for pacing a
burst of readings.
 The trigger delay may be set from 400 to 2000 ms.*
 The continuity and diode test functions ignore the trigger delay.
 The default trigger delay automatically set if no specified value entered.
 If a trigger delay entered, it will is used for all measurement functions (except
continuity and diode test).
*NOTE:
The trigger interval time is 400~2000ms (6 1/2), 200~2000ms (5 1/2) and
100~2000ms (4 1/2). The range of the interval time will be different in different
resolving index.
Function
Menu
Setting
Description
Interval
Set interval time in 400~2000ms.*
Hold
ON/OFF
Set turn the Reading Hold function ON or OFF.
Save all changes, back to a higher level menu.
