RIGOL

User‟s Guide for DM3000 Series

2-29

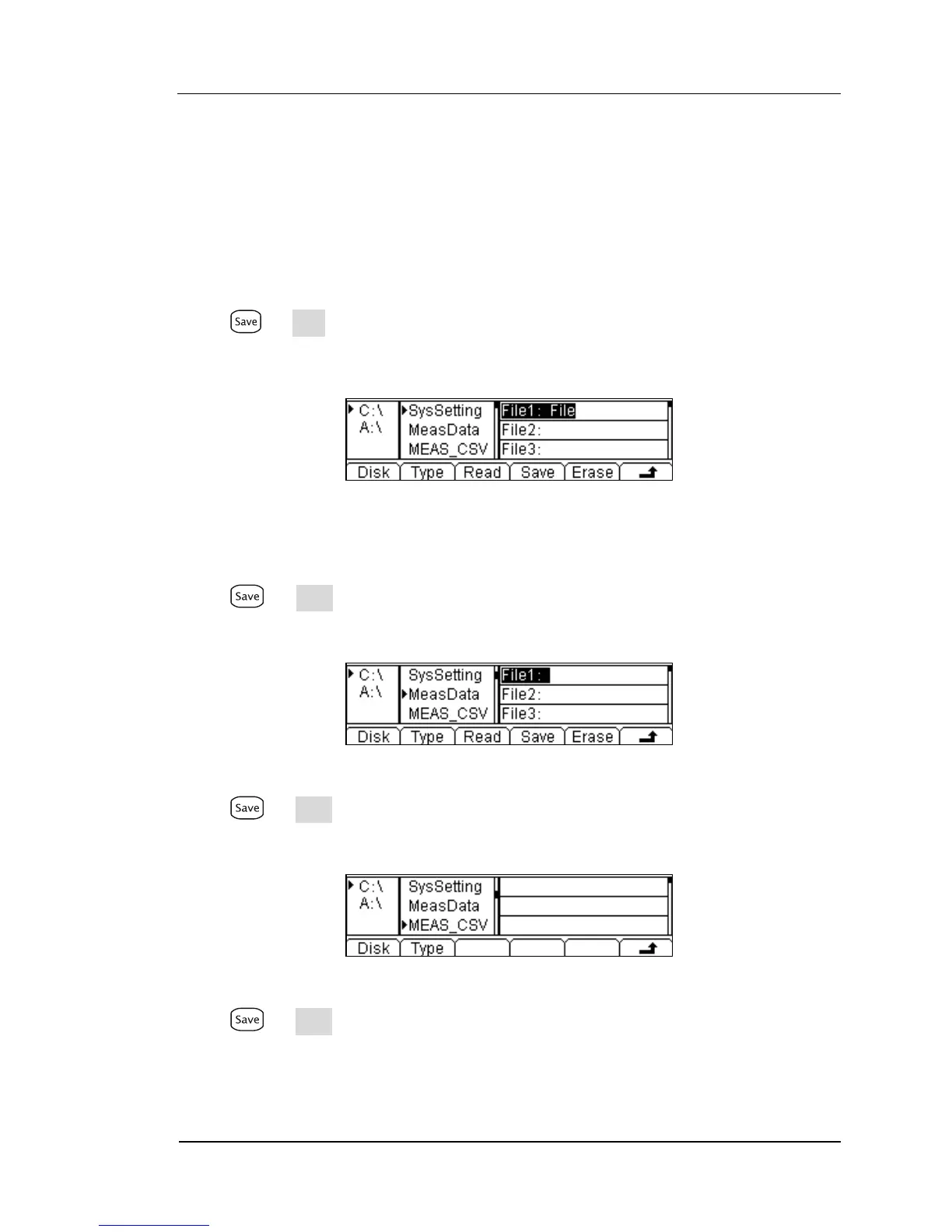

Document Storage

In local/U-disk storage area, you allowed to save, load and delete parameter, data

and sensor documents.

Choose the storage area of the files

Press  Disk, choose Local storage or U-Disk rout. Choose C:\, and the default

fype is “SysSetting”.

Figure 2- 27 The Local storage interface

Choose the storage type of the files

Press  Type, choose the type “MeasData” of the files, into the menu shown

below:

Figure 2- 28

Press  Type, choose the type “MEAS_CVS” of the files, into the menu shown

below:

Figure 2- 29

Press  Type, choose the type “LOG_CVS”, “Datalog”, “Sensor”, “SensorData”,

“ScanTask” of the files, into the menu shown below:
