To Measure Capacitance
The DM3058/DM3058E Digital Multimeter has the ability to test Capacitance up to
10000μF.
Following practice provides you a guide to get familiar with the Capacitance
measurement technique.
Operating Steps:
1. Press
to enter into Capacitance measurement interface.

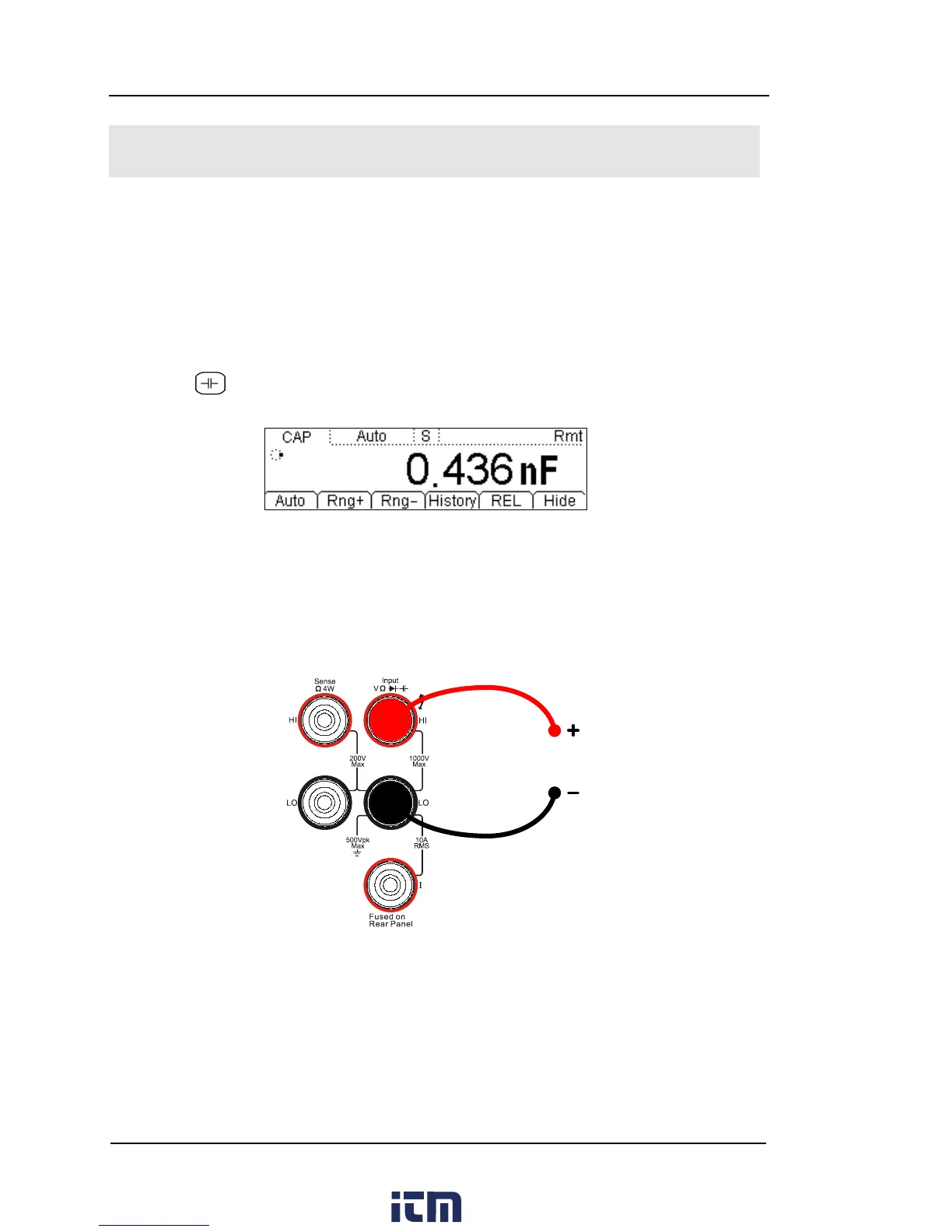

Figure 2-23
Capacitance Measurement Interface
2. Connect red lead to both terminal Input-HI and anode of the capacitance and
black lead to both terminal Input-LO and cathode of the capacitance as the
figure below.
Figure 2-24 Sketch map for connecting
