To Measure Frequency and Period
The Frequency or Period of a signal could be obtained by Secondary Function
during testing its voltage or current or by function button
. The following
practice provides a guide to get familiar with the Frequency and Period
measurement.
To Measure Frequency
Operating Steps:
1. Press
to enter into the following interface.

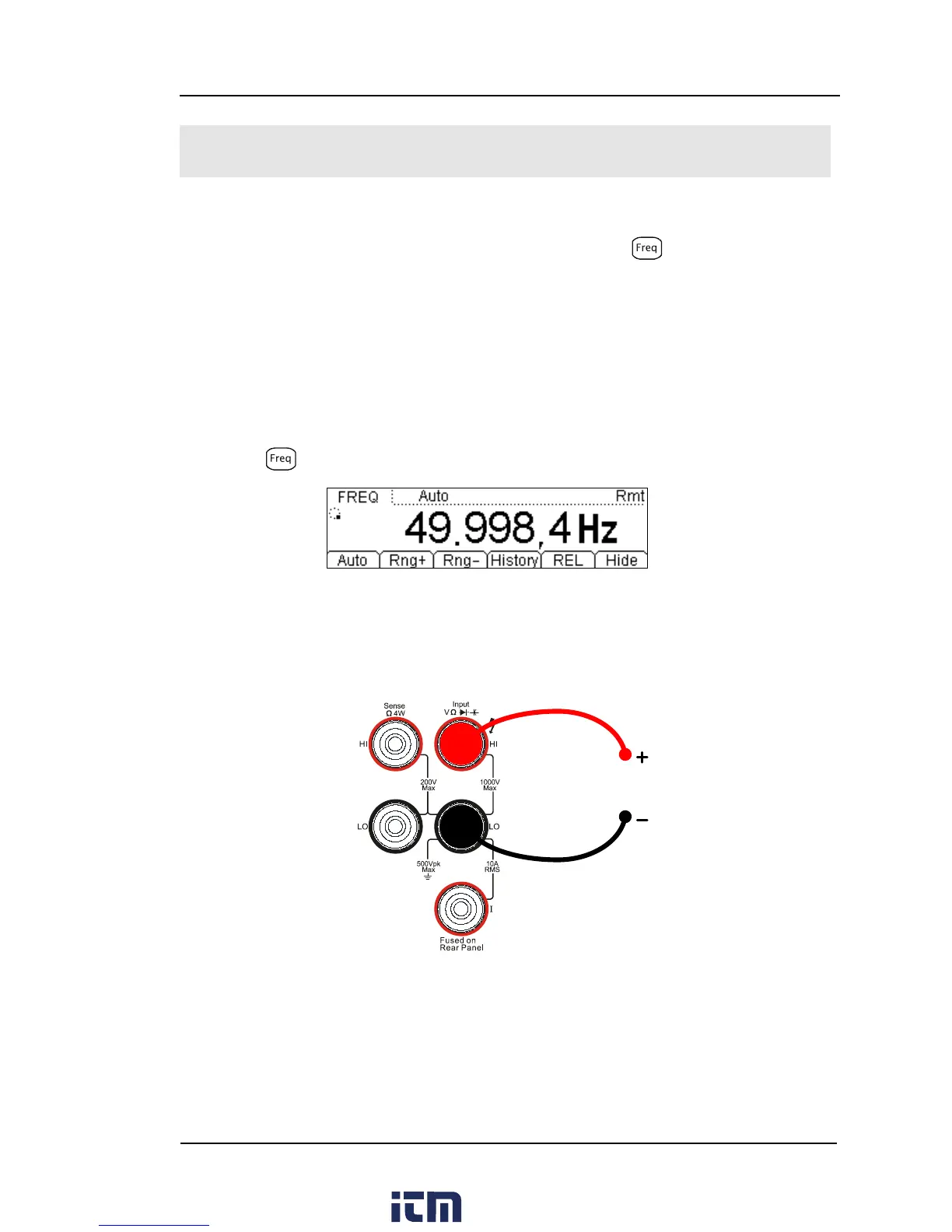

Figure 2-30 Frequency Measurement Interface
2. Connect test leads as the figure below. Red test lead connects with terminal
HI; Black test lead connects with terminal LO.
Figure 2-31 Sketch map for connecting
