RIGOL Chapter 3 Remote Control
3-6 DP800 User’s Guide

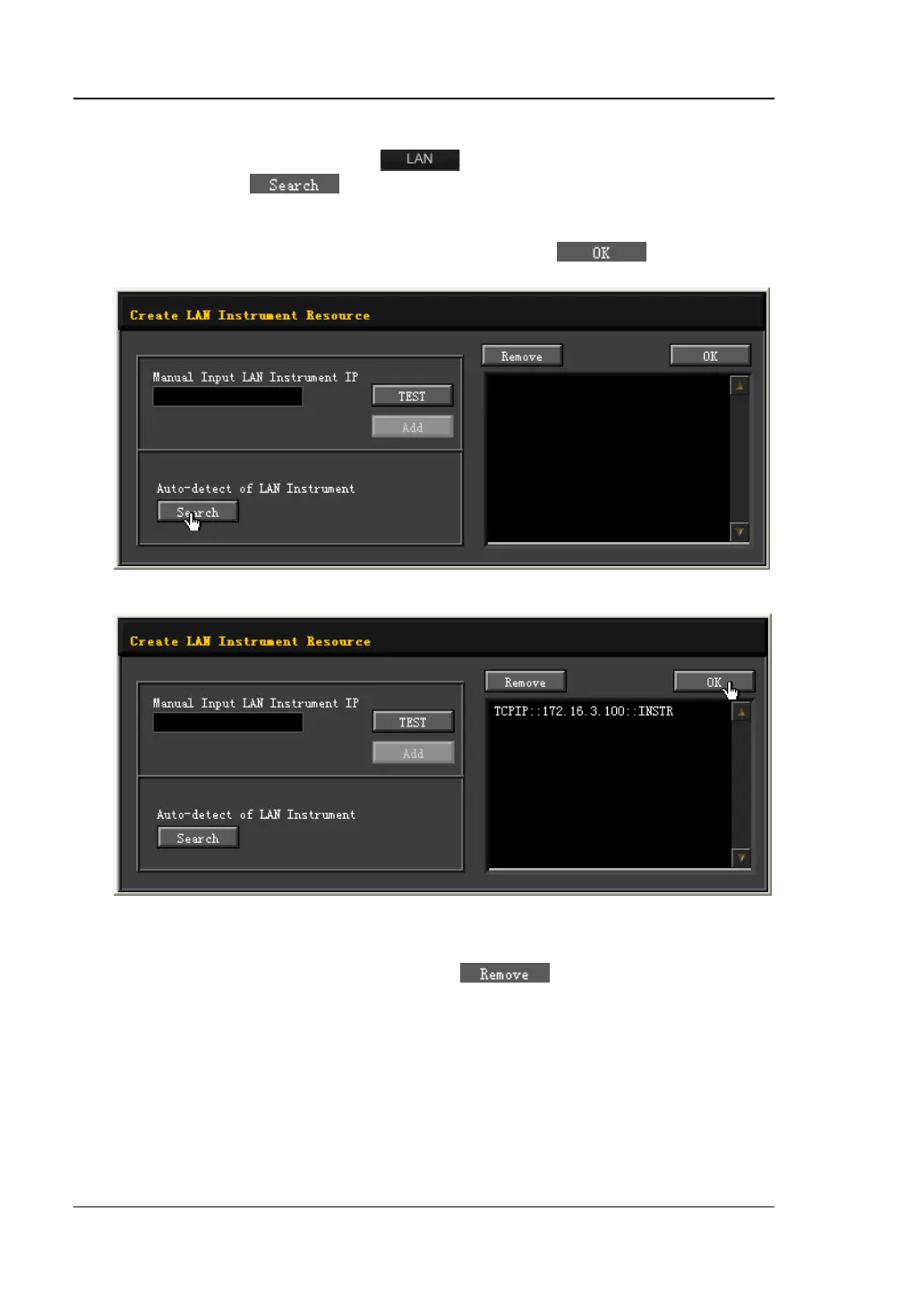

3. Search for device resource
Start up Ultra Sigma and click
. The window as shown in figure (a) is
displayed. Click
and the software will search for the instrument
resource currently connected to the PC or the local area network of the PC via
the network cable. The resource name of the instrument found is displayed at
the right of the window as shown in figure (b). Click
to add the
resource.
(a)
(b)
Note: If you want to remove the unwanted resource, click the corresponding
resource name to select it and then click
.
