RIGOL Chapter 1 Quick Start
1-16 DP800 User’s Guide
User Interface
DP800 series power supply provides three kinds of display modes (normal, waveform
and dial). The default is normal. You can press Display  Disp Mode to select
different display mode. This section introduces the user interface layout under the
normal display mode (as shown in the figure below and
Table 1-4 on the next page).

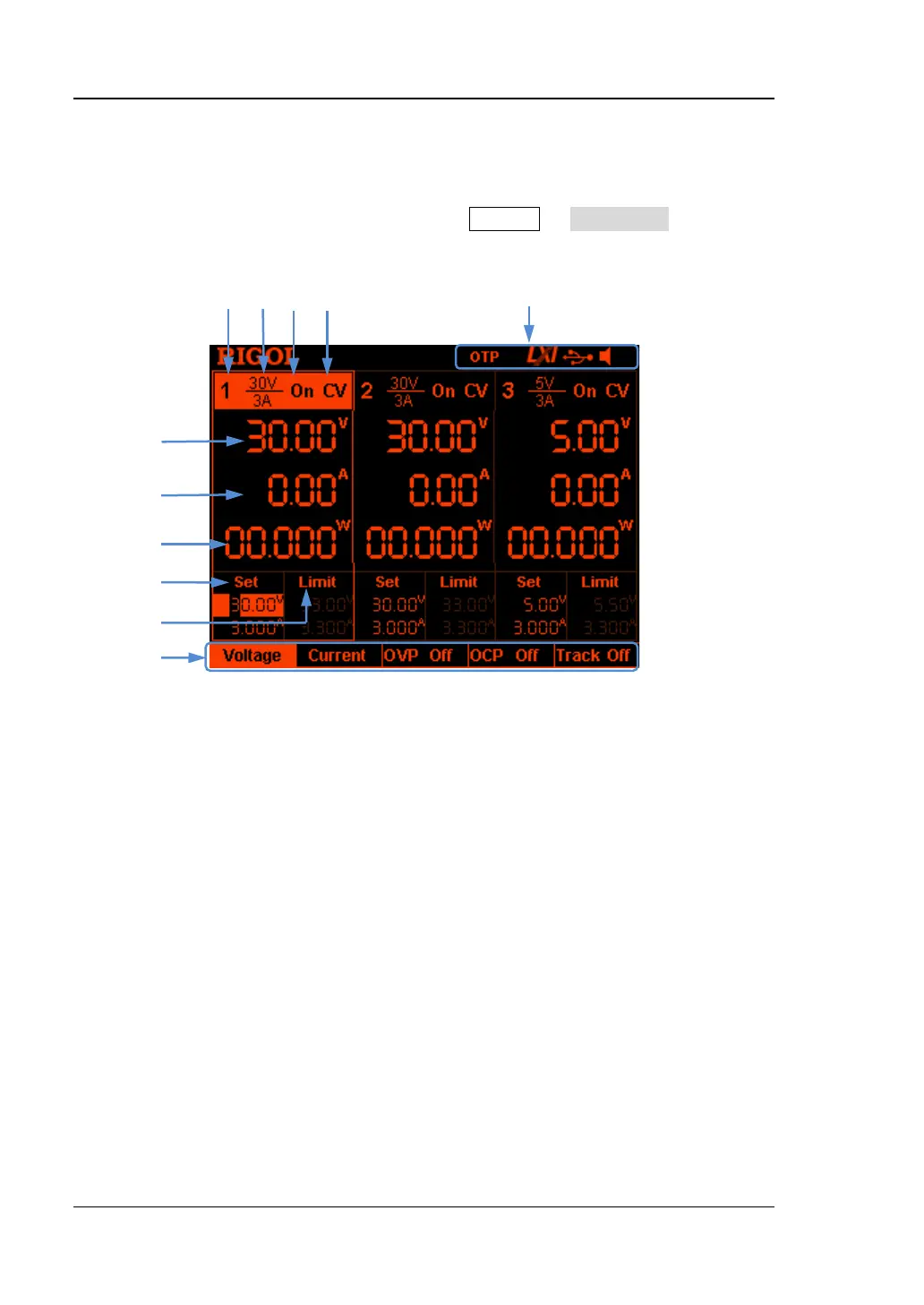

Figure 1-6 User Interface (Normal Display Mode)
1 2 3 4 5
6
7
8
9
10
11

Rigol DP832 Specifications

General

Number of Outputs	3
Output Voltage Range CH1/CH2	0-30V
Output Voltage Range CH3	0-5V
Output Current Range CH1/CH2	0-3A
Output Current Range CH3	0-3A
Total Power	195 W
Power per Channel CH1/CH2	90 W
Power per Channel CH3	15 W
Voltage Resolution	1 mV
Current Resolution	1 mA
Interfaces	USB, RS232
Display	3.5 inch TFT LCD
