Rigol DP832 User Manual

RIGOL Chapter 2 Front Panel Operations
2-42 DP800 User’s Guide

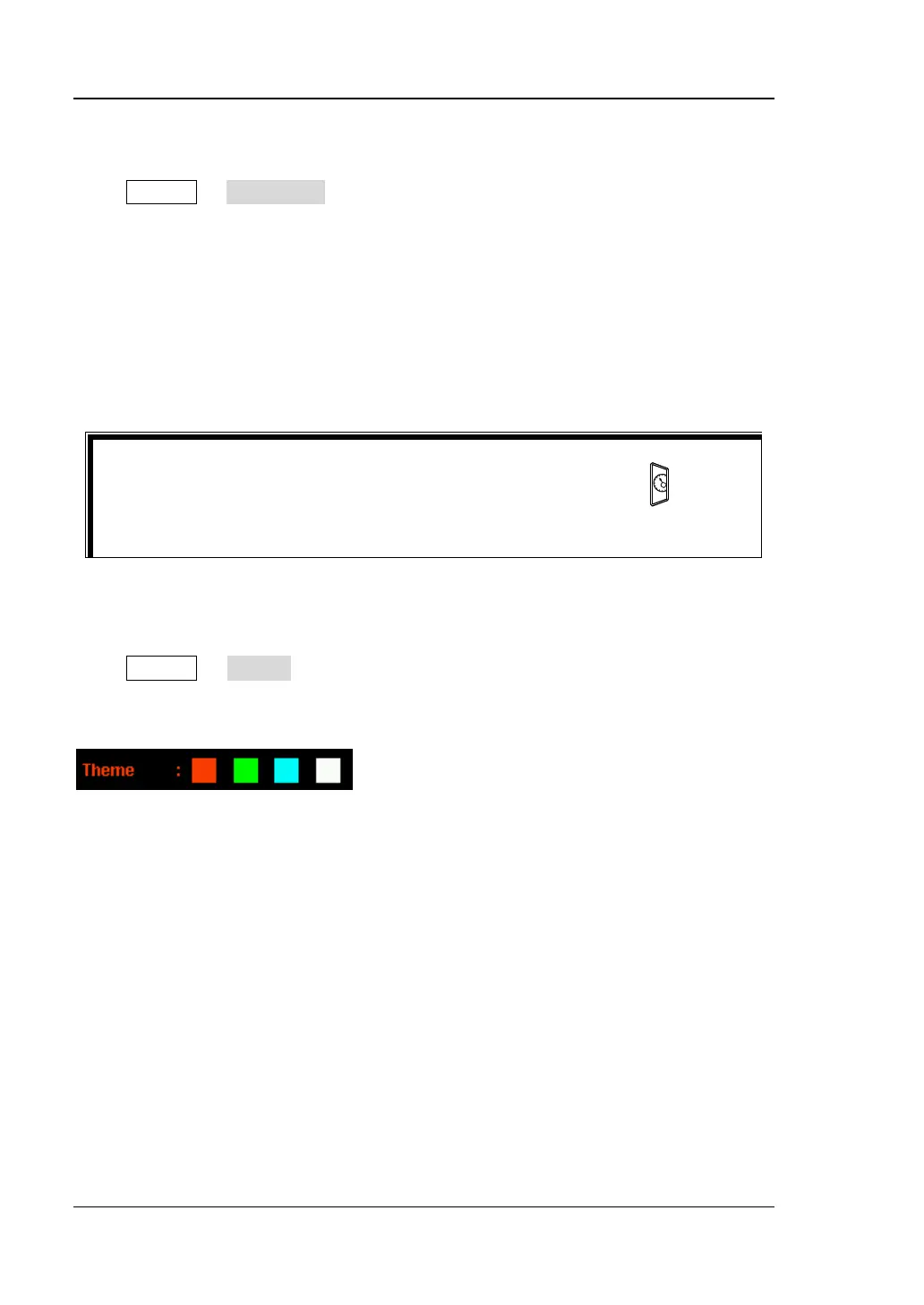

Display Mode
Press Display  Disp Mode to set the display mode to "Normal", "Waveform" or
"Dial". The default is normal display mode. This setting is stored in the non-volatile
memory and will not be affected by factory reset.
 Normal: display the voltage, current and power values of all the channels in
number form.
 Waveform: display the voltage, current and power values of the channel
currently selected in waveform and number forms.
 Dial: display the voltage, current and power value of the channel currently
selected in dial and number forms.
Tip
When the current display mode is "Normal" or "Waveform", press at the
front panel to quickly switch between the current display mode and dial display
mode.
Display Theme
Press Display  Theme and use the left/right direction key to set the display
theme to orange, green, blue or white. The default is green. This setting is stored in
the non-volatile memory and will not be affected by factory reset.

Rigol DP832 Specifications

General

Number of Outputs	3
Output Voltage Range CH1/CH2	0-30V
Output Voltage Range CH3	0-5V
Output Current Range CH1/CH2	0-3A
Output Current Range CH3	0-3A
Total Power	195 W
Power per Channel CH1/CH2	90 W
Power per Channel CH3	15 W
Voltage Resolution	1 mV
Current Resolution	1 mA
Interfaces	USB, RS232
Display	3.5 inch TFT LCD
