Chapter 2 Front Panel Operations RIGOL
DP800 User’s Guide 2-41
Display Setting
Press Display at the front panel to enter the interface as shown in the figure below.
You can set the screen brightness, contrast, RGB luminance, display mode and
display theme. Besides, you can also define the start-up interface.

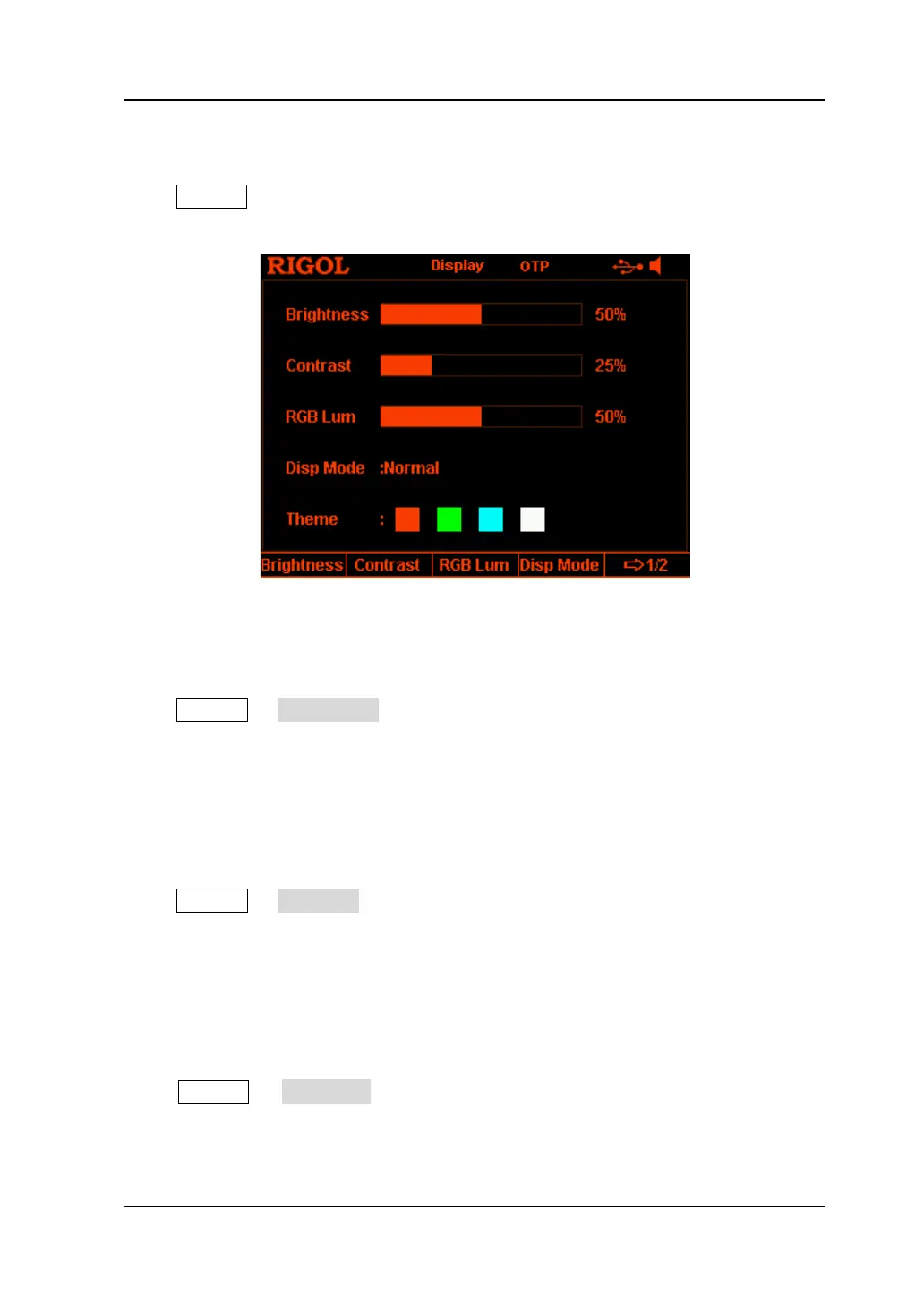

Figure 2-8 Display Setting Interface
Brightness
Press Display  Brightness and use the knob, left/right direction key or numeric
keyboard to set the brightness of the screen. The range is from 1% to 100% and the
default is 50%. This setting is stored in the non-volatile memory and will not be
affected by factory reset.
Contrast
Press Display  Contrast and use the knob, left/right direction key or numeric
keyboard to set the contrast of the screen. The range is from 1% to 100% and the
default is 25%. This setting is stored in the non-volatile memory and will not be
affected by factory reset.
RGB Luminance
Press Display  RGB Lum and use the knob, left/right direction key or numeric
keyboard to set the RGB luminance of the screen. The range is from 1% to 100%
and the default is 50%. This setting is stored in the non-volatile memory and will not
be affected by factory reset.

Rigol DP832 Specifications

General

Number of Outputs	3
Output Voltage Range CH1/CH2	0-30V
Output Voltage Range CH3	0-5V
Output Current Range CH1/CH2	0-3A
Output Current Range CH3	0-3A
Total Power	195 W
Power per Channel CH1/CH2	90 W
Power per Channel CH3	15 W
Voltage Resolution	1 mV
Current Resolution	1 mA
Interfaces	USB, RS232
Display	3.5 inch TFT LCD
