RIGOL Chapter 1 Quick Start
1-8 DP800 User’s Guide

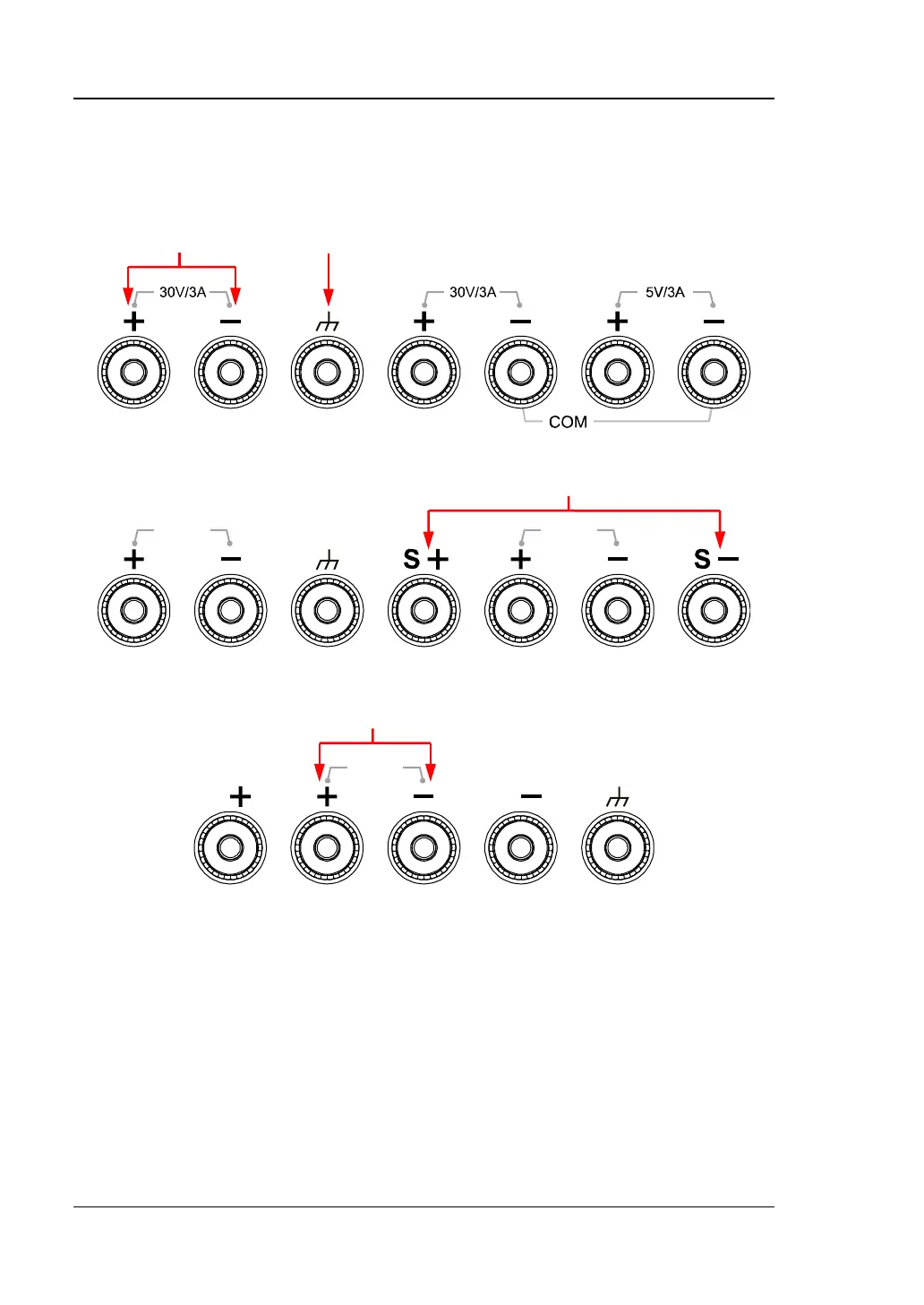

7. Output Terminals
The output terminals of different models of DP800 series are different.
DP832:
DP821:
8V/10A60V/1A
DP811:
S S
Output
(1) Channel output terminals: used to output the voltage and current of the
channel.
(2) Ground terminal: this terminal is connected to the instrument chassis and
ground wire (the ground terminal of the power cord) and is in grounded
state.
(3) Sense terminals: used to detect the actual voltage at the load terminal so as
to compensate for the voltage drop caused by the load lead.
(1)
(3)
(1) (2)

Rigol DP832 Specifications

General

Number of Outputs	3
Output Voltage Range CH1/CH2	0-30V
Output Voltage Range CH3	0-5V
Output Current Range CH1/CH2	0-3A
Output Current Range CH3	0-3A
Total Power	195 W
Power per Channel CH1/CH2	90 W
Power per Channel CH3	15 W
Voltage Resolution	1 mV
Current Resolution	1 mA
Interfaces	USB, RS232
Display	3.5 inch TFT LCD
