12. Event Table
The event table displays the decoded data and the corresponding line number
and time in table format. It can be used to observe relatively longer decoded
data. Press Evt.Table EventTable to select “ON” (Note: This operation is
only available when MATH Decode1 / Decode2 Decode is set to “ON”)
to enter the event table interface as shown in Figure 8-2.
Format: set “Data” display format in the event table to HEX, DEC or ASC.
Focus: press this key and turn to browse the “Data” item.
View: select the display form of the event table. If “Packets” is selected, the
time and data are displayed in the event table; if “Details” is selected, the
detailed data of the specified row will be displayed in the event table; if
“Payload” is selected, all data of the specified column will be displayed in the
event table. When different view is selected, the export format of the data table
will change accordingly.
Data: select the data column to be viewed in the “Datails” or “Payload” view. It
is valid for the decoder of multiple data output.
Order: select the display type of decoding result in the event table to “Ascend”
or “Descend”.
Export: if an USB storage device is currently connected to the instrument, press
this softkey to export the data table to the external USB storage device in CSV
format (“Packets” is selected) or HEX format (“Payload” or “Details” is selected).

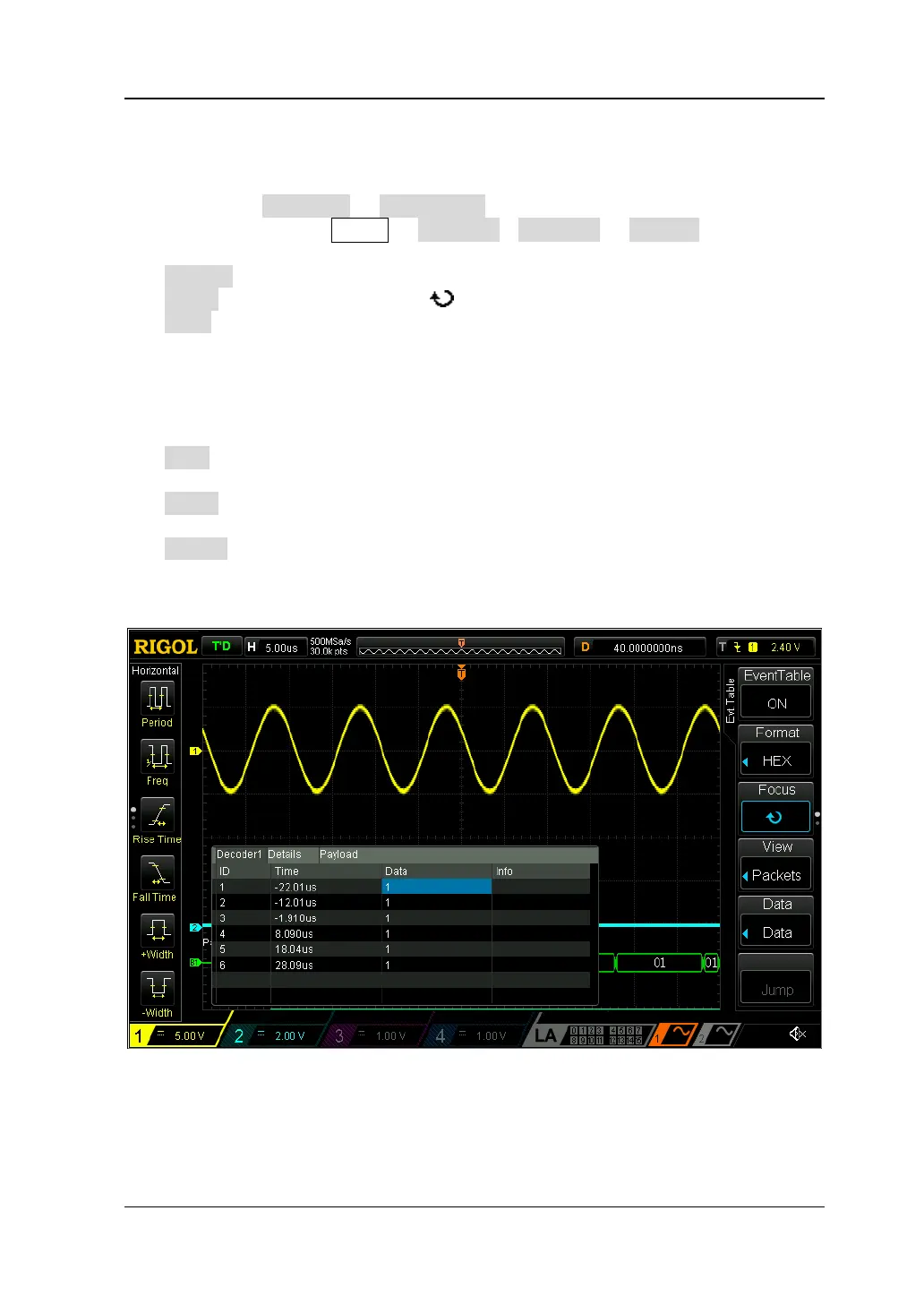

Figure 8-2 Parallel Decoding Event Table
To Next Page
