Rigol MSO5000-E Series Service Guide

RIGOL Chapter 1 Disassembly and Assembly
1-2 MSO5000-E Service Guide
Exploded View Drawing
You need to get a basic understanding of the main parts of the instrument before disassembling and
assembling the instrument. When disassembling or assembling the instrument, please follow the
procedures and take care not to scratch the surfaces of the instrument. This manual mainly introduces
the disassembly and assembly methods for the MSO5000-E series digital oscilloscope. The exploded
view drawing of MSO5152-E is shown in Figure 1-1. For the replacement parts list, refer to Table 1-1.

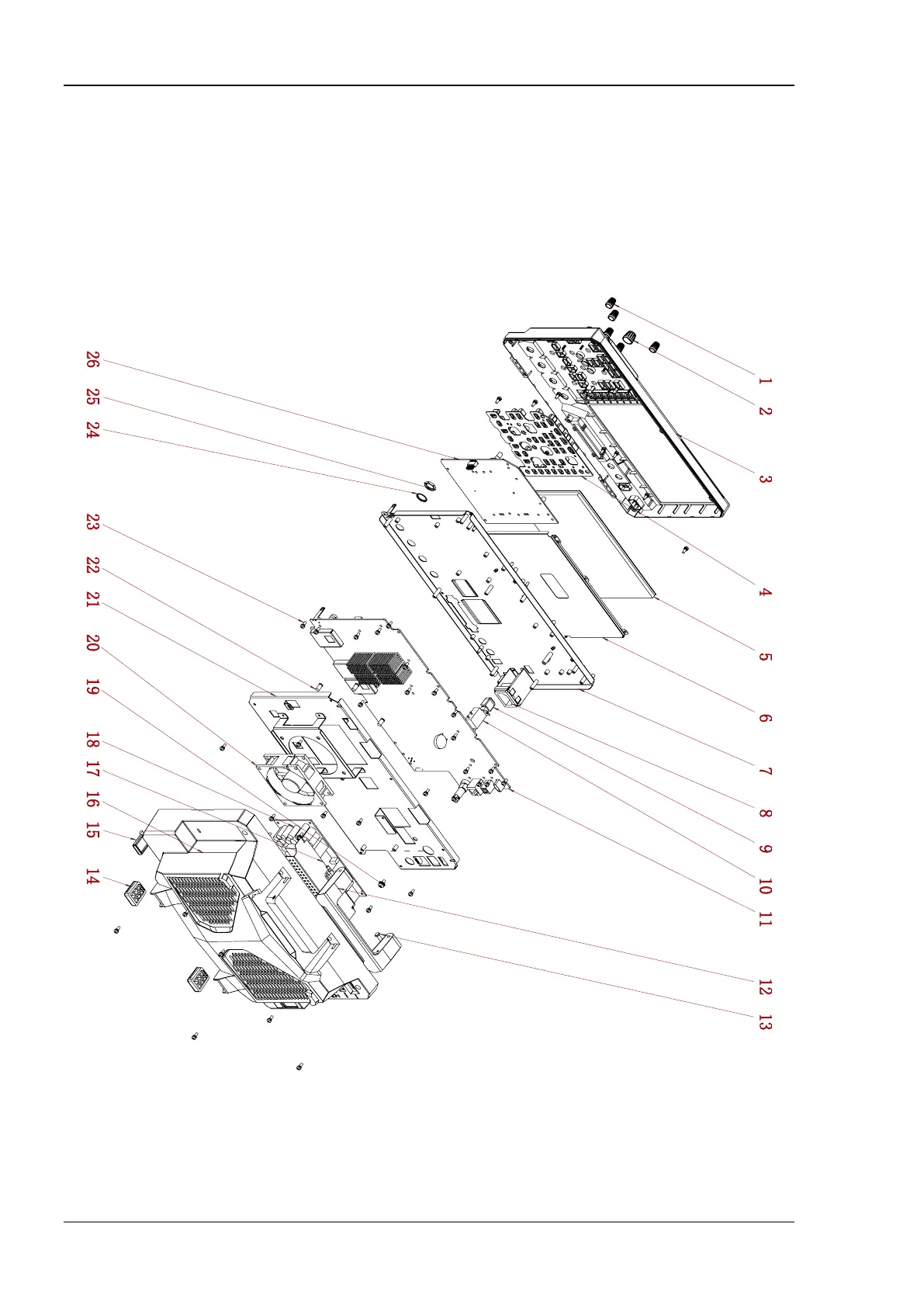

Figure 1-1 Exploded View Drawing of MSO5152-E

Rigol MSO5000-E Series Specifications

General

Brand	Rigol
Model	MSO5000-E Series
Category	Test Equipment
Language	English
