Disassemble the Rear Panel Components

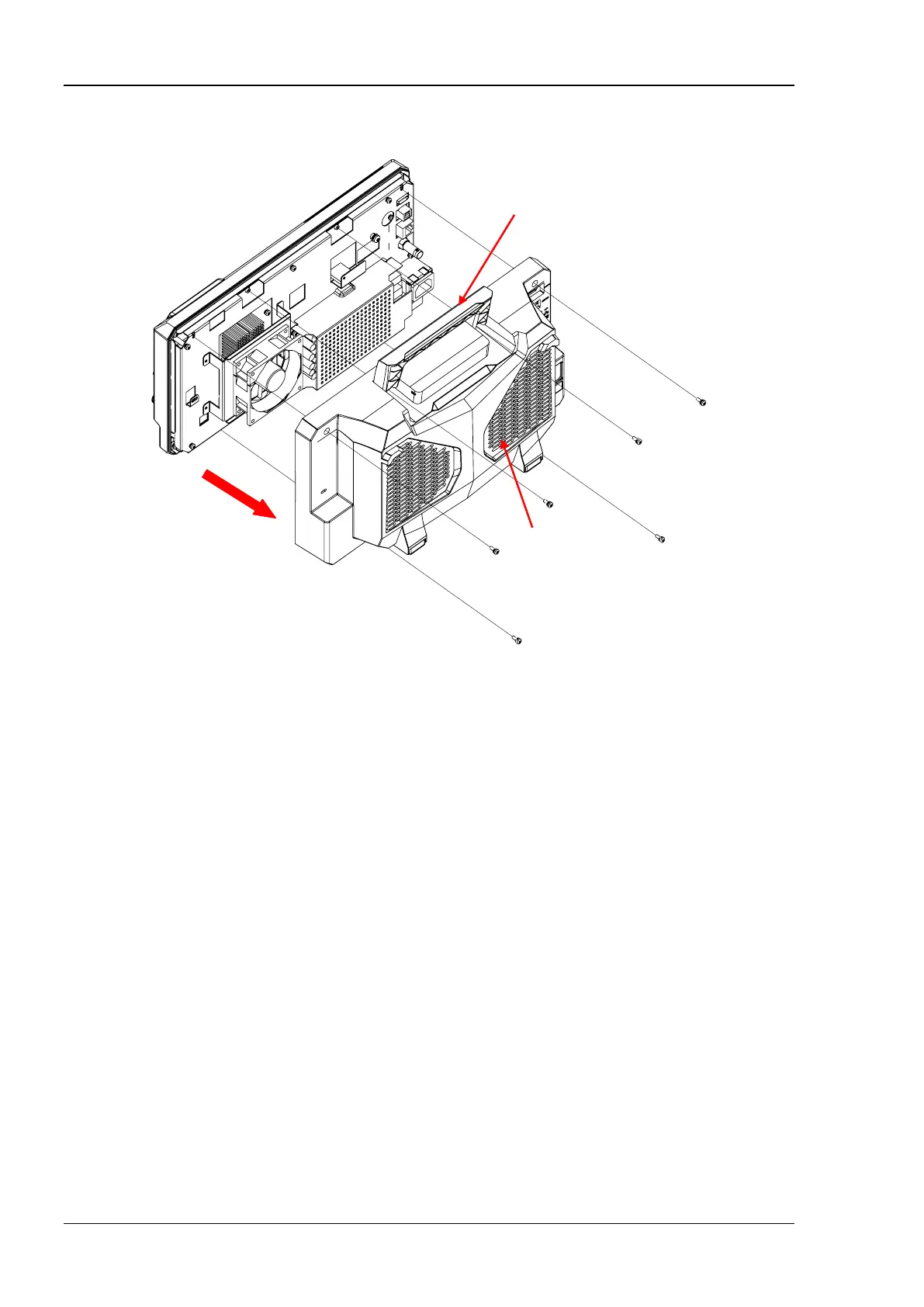

Figure 1-2 Disassemble the Rear Panel Components
Part Description:
① 2 screws (M3x8 torx pan head combination screw, used for fastening the handle)
② 2 screws (M3x8 torx pan head combination screw, used for fastening the rear panel at the top)
③ 2 screws (M3x8 torx pan head combination screw, used for fastening the rear panel at the
bottom)
Disassembly Steps:
1. Use the T10 screwdriver to remove 2 screws (①) that secure the handle.
2. Use the T10 screwdriver to remove 2 screws (②) at the top of the rear panel.
3. Use the T10 screwdriver to remove 2 screws (③) at the bottom of the rear panel.
4. Remove the rear panel components in the arrow direction (as shown in the figure above).
①
①
②
②
Rear Panel Components
Handle
③
③
