Rinnai I Series Installation Manual

Rinnai 16 I Series Evap AC IM
5.12 CONNECTING DUCT WORK TO THE EVAPORATOR MODULE
•
The ductwork should not inhibit walkway access to existing services, as this may result in an occupational health
and safety (OH&S) hazard.
•
Refer to AS 4254 for the installation requirements of ductwork in buildings�
•
The outlet pop sizes on the Evaporator Module are 18” / 450mm
•
The ductwork shall be hung off the support platform and joists as shown below�
•
The minimum recommended duct length shall be no less than 6m and include 2 x 90° turns; one a minimum of
1m from the fan connection and another for connection onto the register�
•

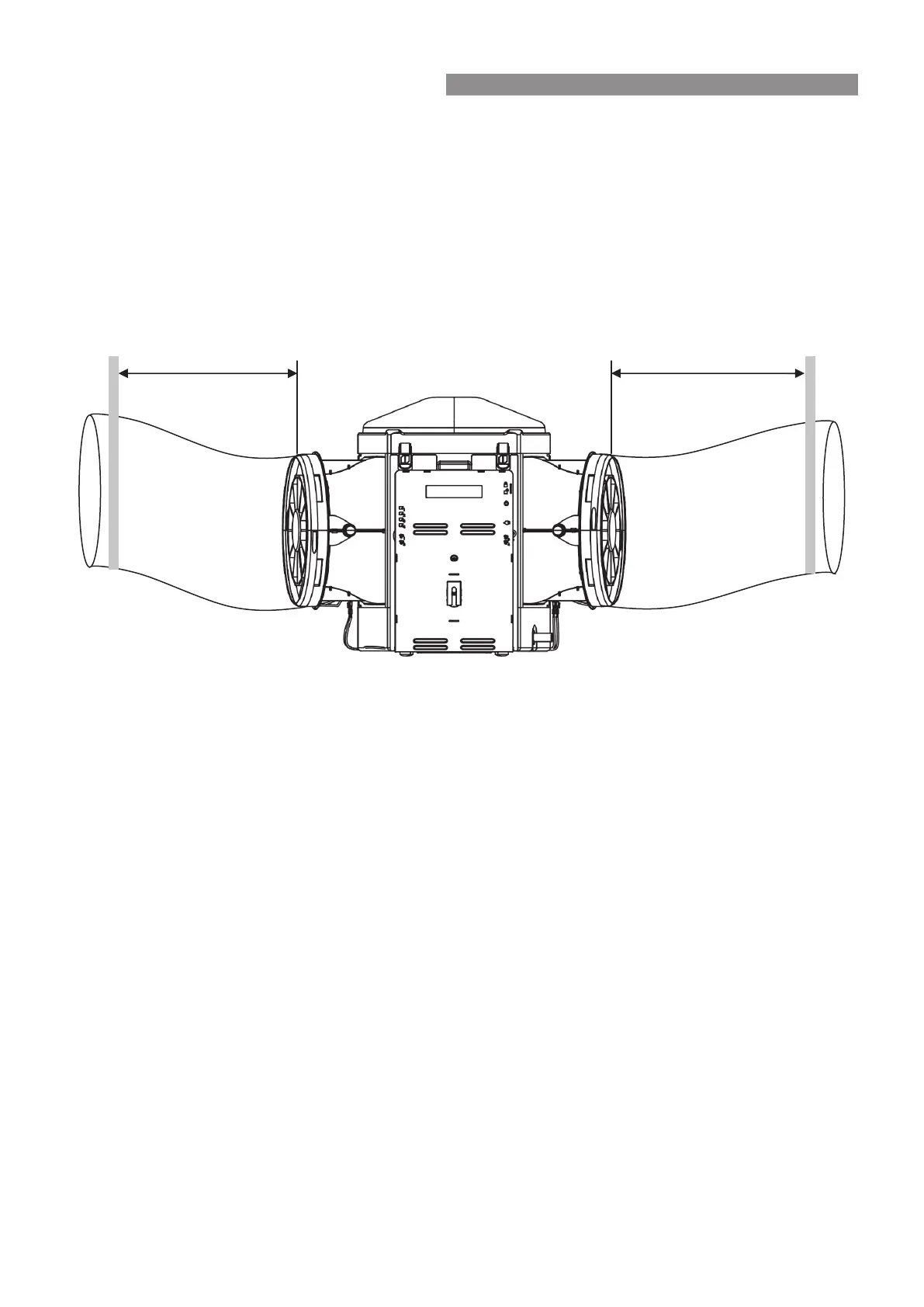

The installation shall have at least 1m of straight ø450mm duct on each fan connection as shown in the diagram
below�
PP PP
+DQJLQJ6WUDS +DQJLQJ6WUDS
5. EVAPORATOR MODULE INSTALLATION
