HOT WATER DELIVERY TEMPERATURE
Local regulations and or the requirements of AS/NZS 3500 MUST BE addressed regarding the temperature
limitations of hot water supplied to areas used primarily for personal hygiene. The temperature of water to these
areas may be limited to 50°C or less.
To ensure these regulations and or requirements are met the system MUST BE installed in accordance with the
"Installation Congurations" below.

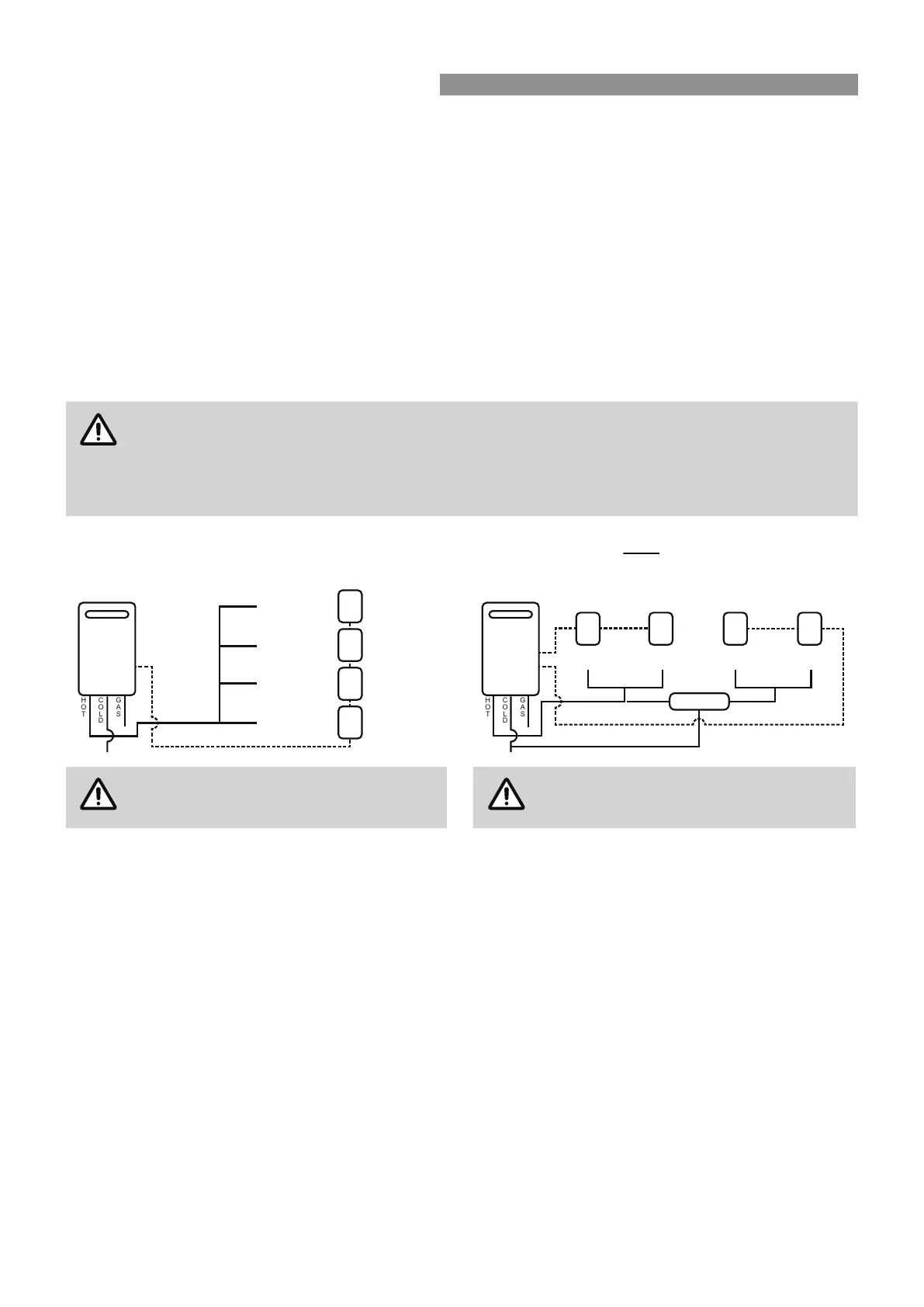

Installation Congurations
If the appliance is marked to state that it delivers water not exceeding 50°C, local regulations may permit installation
without a Temperature Limiting Device. Installations without a Temperature Limiting Device are shown in Diagram
1 below. If you are unsure about your local regulations contact your regulating authority or Rinnai.
If the appliance is NOT marked to state that it delivers water not exceeding 50°C, or your local regulations require
installation with a Temperature Limiting Device then install the appliance in accordance with Diagram 2 below.
IMPORTANT
If the appliance is to deliver water primarily for the purposes of personal hygiene in an early
childhood centre, primary or secondary school, nursing home or a similar facility for the care of
young, aged, sick or disabled persons as dened in AS/NZ 3500 a Temperature Limiting Device
(TLD), such as a Tempering Valve may be required even if the appliance is set to 50º C or less.
For these types of applications contact Rinnai.
50º C
KITCHEN
Water controller
(optional)
Water controller
(optional)
Water controller
(optional)
Water controller
(optional)
LAUNDRY
BATHROOM
ENSUITE
H
OT
C
O
LD
G
AS
Diagram 1 : 50°C Appliance
KITCHEN
Water controller
(optional)
Water controller
(optional)
LAUNDRY BATHROOM
Water controller
(optional)
Water controller
(optional)
ENSUITE
TLD
H
OT
C
O
LD
G
AS
Diagram 2 : NOT a 50°C Appliance
NOTE
Minimum length of pipe from hot outlet
to nearest hot water tap 2 metres.
NOTE
TLD = Temperature Limiting Device.
Universal water controllers are available as an optional extra and will function as described in the Operation
Section of this manual. Refer to "Water Controllers Limitations" on page 25 to conrm the maximum number and
combination of water controllers that can be tted.
For detailed installation information of Universal water controllers refer to the "Water Controller Installation" chapter
of this manual starting on page 25.
Operation and Installation information for Deluxe and Wireless water controllers is provided with the water
controllers or visit www.rinnai.com.au.
