pressing of the ENTER button the decimal point starts blinking. Now you can make changes using the cursor
buttons (UP/DOWN). Press ENTER again to acknowledge the entries made. The decimal point is no longer
blinking. Using the cursor buttons you can continue scrolling in the menu. Same procedure analogously ap-
plies to the code menus described below.
All the following display screens show the default setting. If the actual indication on the controller differs from
what is shown here, the default setting has been changed in individual codes to suit a specific application.

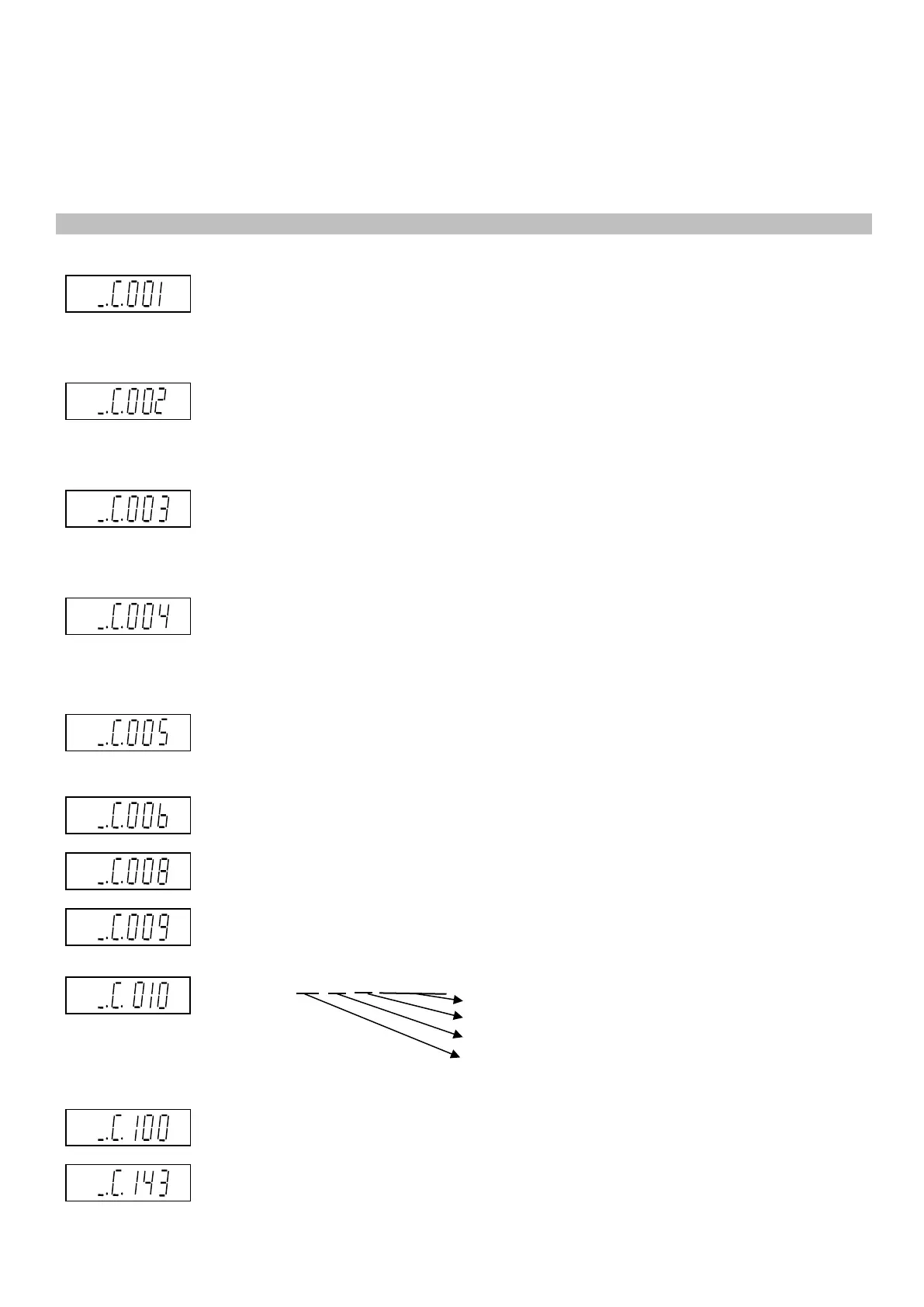

Settings for channel 1
In this sub-menu you can set or limit the following functions for channel 1:
- Vibrating amplitude
- External enabling, signal direction of external enabling input
- Soft start and stop delay
Settings for channel 2
In this sub-menu you can set or limit the following functions for channel 2:
- Vibrating amplitude
- External enabling, signal direction of external enabling input
- Soft start and stop delay
- Selection of vibratory or belt feeder drive
Sealing a setpoint
In this sub-menu you can lock the setpoints (vibrating amplitude) of the main menu. It is no longer
possible to change the setpoints for channel 1 and channel 2 in the main menu. This avoids
accidental changes to performance parameters. You can only make any changes now through
codes C001 and C002.
Setting the sensor input 1
This is the sub-menu for activation of sensor input 1. In addition you can set the following func-
tions:
- Invert input signal direction
- Start delay
- Stop delay
Setting the sensor input 2
This is the sub-menu for activation of sensor input 2. In addition you can set the following func-
tions:
- Invert input signal direction
- Start delay
- Stop delay
Choosing the sensor links
In this sub-menu you can link the sensors activated by codes C004 and C005 with one another.
Setting the cycle watchdog
Here you can set which sensor input is to be monitored and how the controller is to react to an
error.
Show status
This sub-menu serves for checking of the set vibrating frequency and of the sensor inputs.
Calling-up the software version
Definition: 411. 57. 10. 23.11.99
Date
Version No.
Device type
Internal No.
Device type:
59 = ESK 2001
58 = ESG 2001
57 = ESK 2000
56 = ESG 2000
Setting the feed rate by external voltage input 0-10V or potentiometer
Saving parameters
You can save the (application-specific) settings previously made in various sub-menus under 143.
5.4. Description of individual codes for controller programming.
