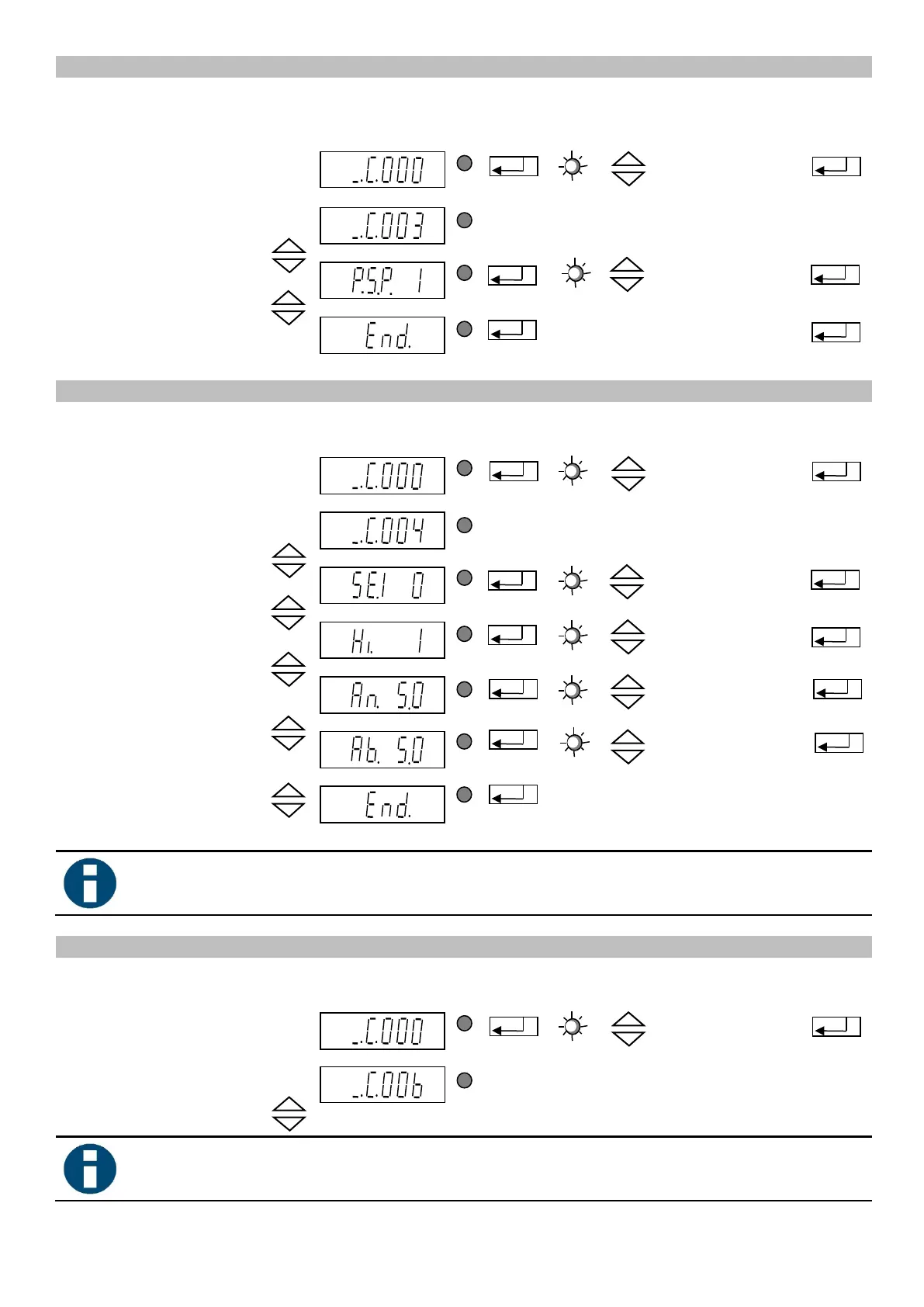

Objective: Sealing-in the setpoints in the main menu. A direct change of the values is no longer possible.

You can only make changes now through codes C001 and C002.

Select code

KANAL l

KANAL 2

CODE

Set code

Code C003

Setpoint (vibrating ampli-

tude)

1 = adjustable

0 = input

inhibited

Return

Save and return to

main menu

Objective: Activating and setting the sensor inputs

Select code

Set code

Code C004

Sensor 1 input

I = active

0 = not active

Invert input

signal direction

I = Start = 24V DC

0 = Stop = 24V DC

Delay of sensor status

CLEAR, Start delay

0 - 60 sec.

Delay of sensor status

OPERATED, Stop delay

0 - 60 sec.

Return

Save and return to

main menu

Same applies analogously to code C005 (sensor input 2).

Objective: Linking of the two previously activated sensor inputs.

Select code

Set code

Code C006

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

5.5.2. Code C003 Seal setpoint

5.5.3. Code C004 sensor input 1 and code C005 sensor input 2

5.5.4. Code C006 Sensor linkage

You can activate only one of the eight sensor links.
