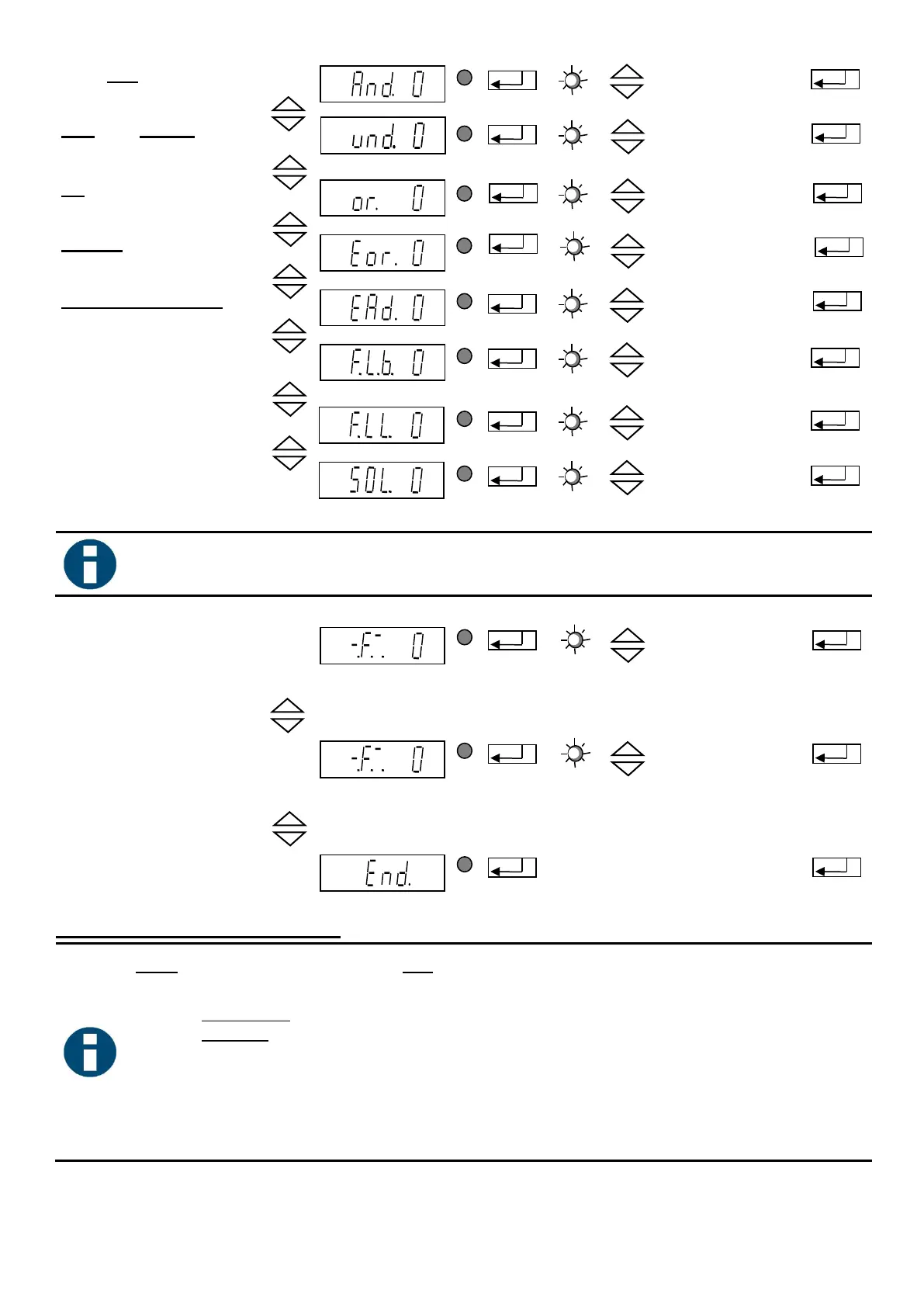

Logic with blowing-off
the exit tracks
I = active
0 = not active
AND logic without blowing
off the exit tracks
(Version No. 10 and higher)
I = active
0 = not active
I = active
0 = not active
I = active
0 = not active
AND / S2 logic
(Version No. 10 and higher)
I = active
0 = not active
Level check with external
controller
I = active
0 = not active
Level check with indicator
light
I = active
0 = not active
I = active
0 = not active
Channel 2 follows chan-
nel 1
I = active
0 = not active
(both channels
operate
independently)
Channel 1 follows chan-
nel 2
I = active
0 = not active
(both channels
operate
independently)
Save and return to
main menu
Brief description of individual links
Use the following two links to set priority of the channels.
AND logic of the two sensor inputs with blowing-off the exit track.
Example:
Twin-track feeders with accumulation checker.
Track 1 (sensor 1) full = Blow-off track 1 (relay K1)
Track 2 still clear
Track 2 (sensor 2) full = Blow-off track 2 (relay K2)
Track 1 still clear
Track 1 + Track 2 full = Bowl feeder (channel 1) stop, about 4 sec. later blowing air
stop
