Rhein-Nadel Automation GmbH 19

VT-BA-ESK2001_EN_2023.docxVT-BA-ESK2001_EN_2023.docx

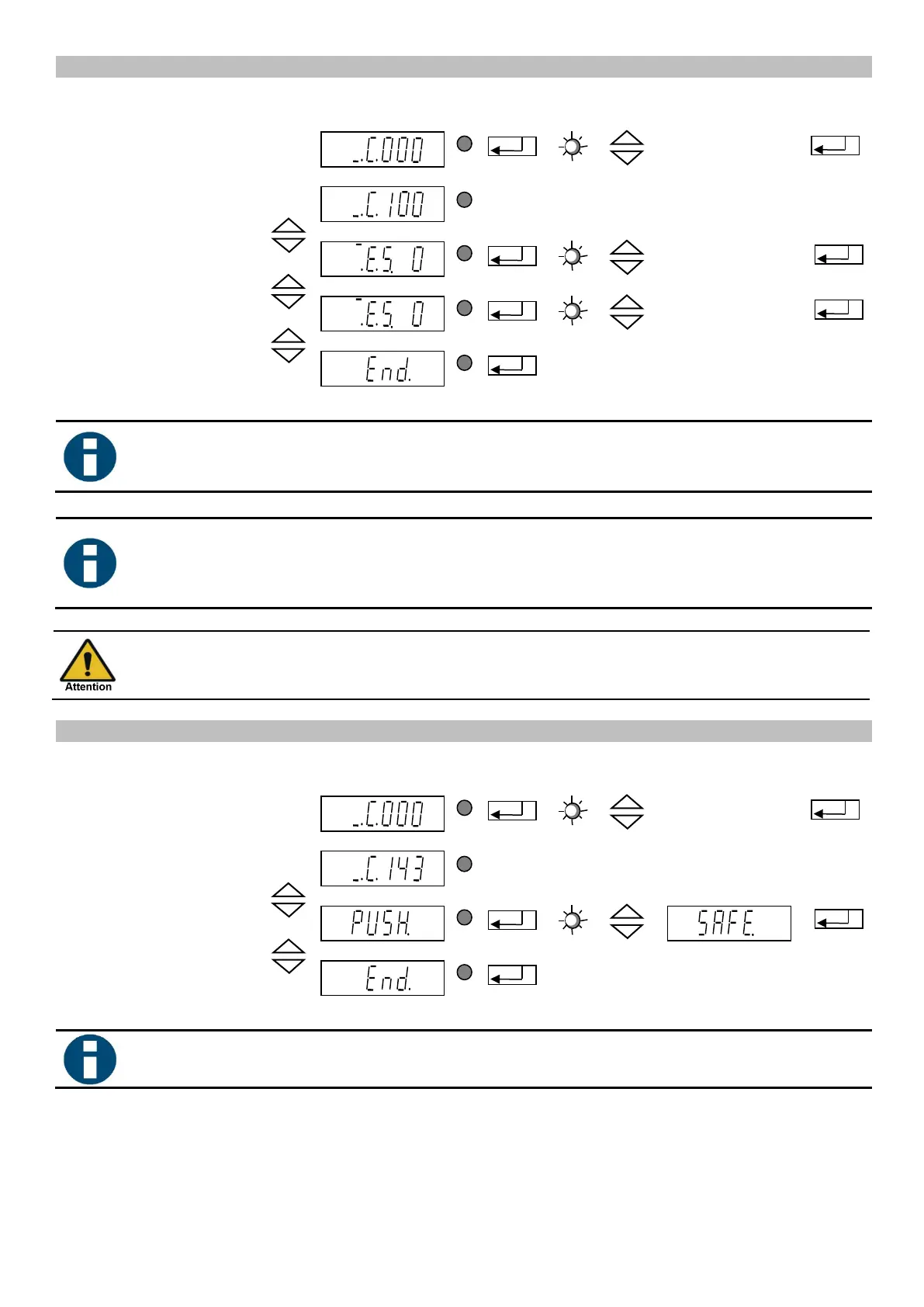

Objective: Setpoint change by external voltage

Select code

KANAL l

KANAL 2

CODE

Set code

Code C100

KANAL l

KANAL 2

CODE

External voltage applica-

tion to channel 1

KANAL l

KANAL 2

CODE

I = active

0 = not active

External voltage applica-

tion to channel 2

KANAL l

KANAL 2

CODE

I = active

0 = not active

Return

KANAL l

KANAL 2

CODE

Save and return to

main menu

Objective: Saving of application-specific parameters

Select code

KANAL l

KANAL 2

CODE

Set code

Code C143

KANAL l

KANAL 2

CODE

Save

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

Return

KANAL l

KANAL 2

CODE

Save and return to

main menu

5.5.8. Code C100 Setting the feed rate by external voltage input.

If external voltage application is activated the last digital feed rate set (%) constitutes the minimum

feed rate for 0 volt. Set the maximum feed rate for 10 volt by the P parameter in

C001 / C002.

Connect the external voltage to terminals 31, 32 and 33 in the controller.

Terminal 31 = +10V

Terminal 32 = E

Terminal 33 = 0V

Attention!

Before opening the device be sure to observe the safety directives in chapter 2.

5.5.9. Code C143 Saving parameters

Having pressed ENTER to acknowledge PUSH you can save the selected parameters sepa-

rately by pressing a cursor button.
