Inhibiting all setting functions

With the aid of this code you can disable all input facilities of the controller. It is no longer possible

to change any values. The only way now to enable the menu again is through this code.

Retrieving parameters

Inn this sub-menu you can return the controller to the default settings. You can also return to

application-specific settings, if previously saved.

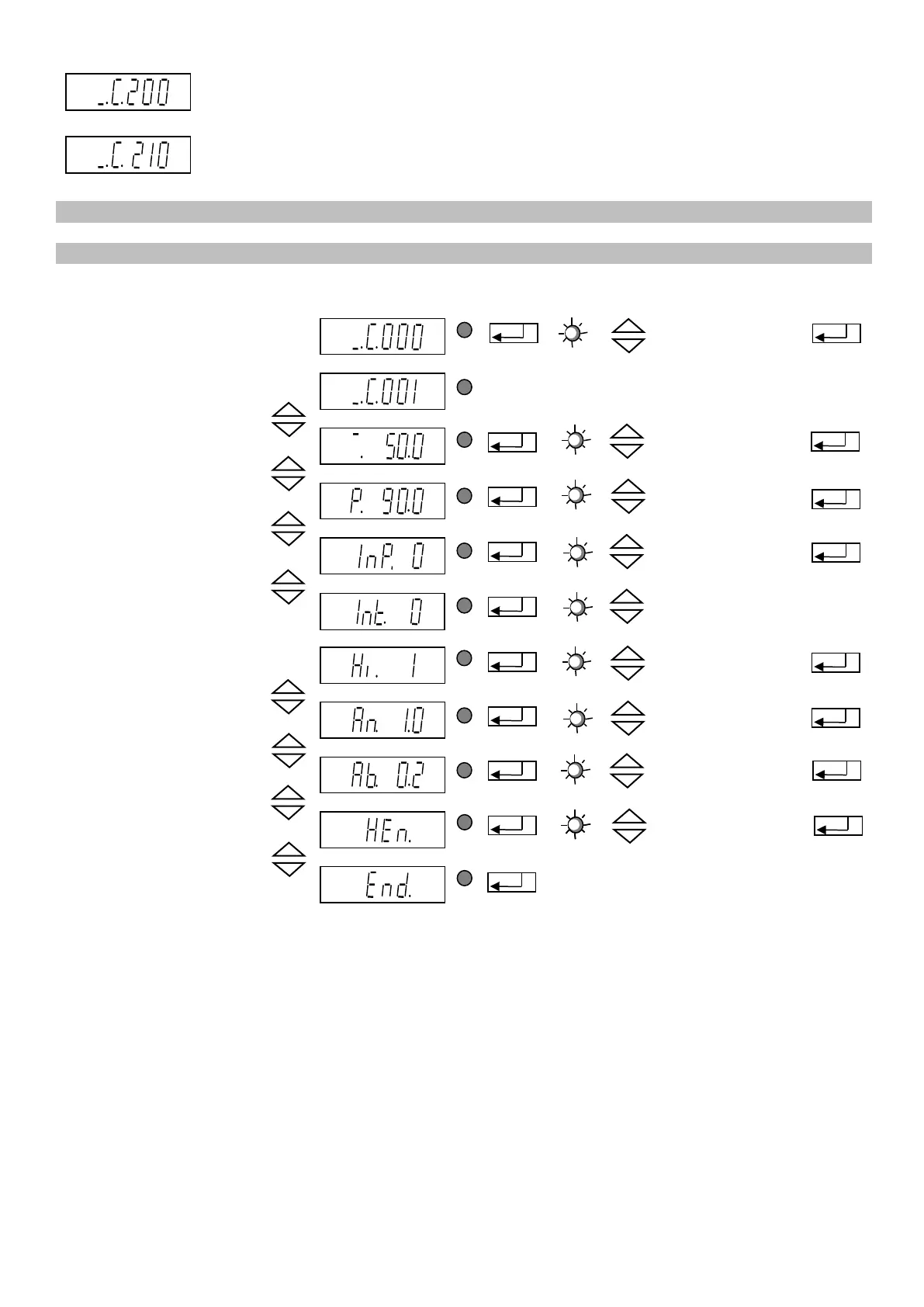

Objective: Setting and limiting the vibration amplitude, external enabling, soft start delay and soft stop delay.

Select code

KANAL l

KANAL 2

CODE

Set code

Code C001

KANAL l

KANAL 2

CODE

Set vibrating

amplitude

KANAL l

KANAL 2

CODE

0 - 100 %

Limit vibrating

amplitude

KANAL l

KANAL 2

CODE

50 - 100 % (*)

External enabling signal

KANAL l

KANAL 2

CODE

I = active

0 = not active

Delayed OFF (for channel

2 only)

InP = 1 und InT = 1

External enabling

signal direction

KANAL l

KANAL 2

CODE

I = Start = 24V DC

0 = Stop = 24V DC

Soft start time

KANAL l

KANAL 2

CODE

0 - 5 sec.

Soft stop time

KANAL l

KANAL 2

CODE

0 - 5 sec.

Select vibratory drive or

belt drive

KANAL l

KANAL 2

CODE

0 = vibratory drive

1 = belt drive

Return

KANAL l

KANAL 2

CODE

Save and return to

main menu

(*) For RNA feeders with 200 V magnets = 90 %

(1) Only for channel 2: After removal of the enabling signal channel 2 switches off with a delay (5 minutes).

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

5.5. Application-specific changes to default settings

5.5.1. Code C001 for channel 1 and code C002 for channel 2 (feed rate outputs)
