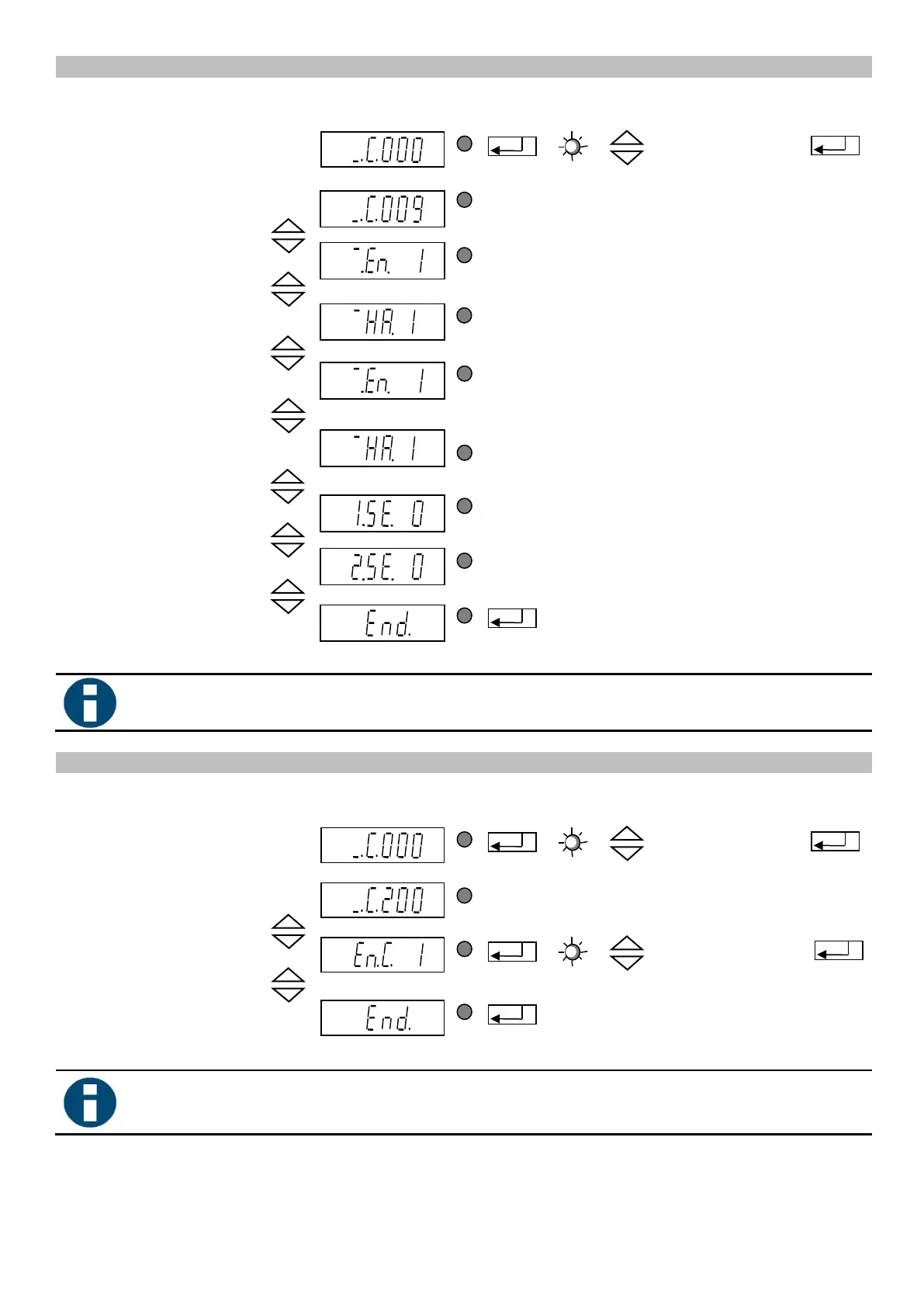

Objective: Checking of the set vibrating frequency and of the sensor inputs.

Select code

KANAL l

KANAL 2

CODE

Set code

Code C009

External enabling signal

Channel 1

I = active

0 = not active

Channel 1 vibrating fre-

quency

I = 50 Hz

0 = 100 Hz

External enabling

signal

Channel 2

I = active

0 = not active

Channel 2 vibrating fre-

quency

Only in controller mode

I = 50 Hz

0 = 100 Hz

Signal at sensor input 1

I = active

0 = not active

Signal at sensor input 2

I = active

0 = not active

Return

Save and return to

main menu

Objective: An (accidental) change of the set values by the user is not possible any more.

Select code

KANAL l

KANAL 2

CODE

Set code

Code C200

KANAL l

KANAL 2

CODE

Inhibiting the setting func-

tions

KANAL l

KANAL 2

CODE

I = enable

0 = disable

Return

KANAL l

KANAL 2

CODE

Save and return to

main menu

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

5.5.6. Code C009 Show status

Under menu item HA = half wave you can check whether the operating mode (100 - 50 Hz) is

selected correctly.

5.5.7. Code C200 Inhibiting all code entries

Only code C200 is accepted!!!

You can still change the setpoints for channels 1, 2 and 3 in the main menu (see under 4.3).
