Robe Painte - Technical Specifications

34
9. Technical Specications
Electrical
Power supply: electronic auto-ranging
Input voltage range: 100-240V, 50-60Hz
Fuse: T 6.3A/250V ~
Max. power consumption: 440W (power factor 0.98)
Mains input: - max. 16A (US 13A)
Optic
Light source: TE™ 310W HP White LED Engine:
Colour temperature: 6700K
Fixture total lumen output: 6.500 lm (goniophotometer)
Remotely selectable lter for CRI 90
Typical lumen maintenance: L70/B50 @ 50.000 hours
Light source warranty: 4 years or 20.000 hours
Colour wheel
9 dichroic lters (including one multicolour lter) + open
CMY colour mixing
Smooth CMY colour mixing system

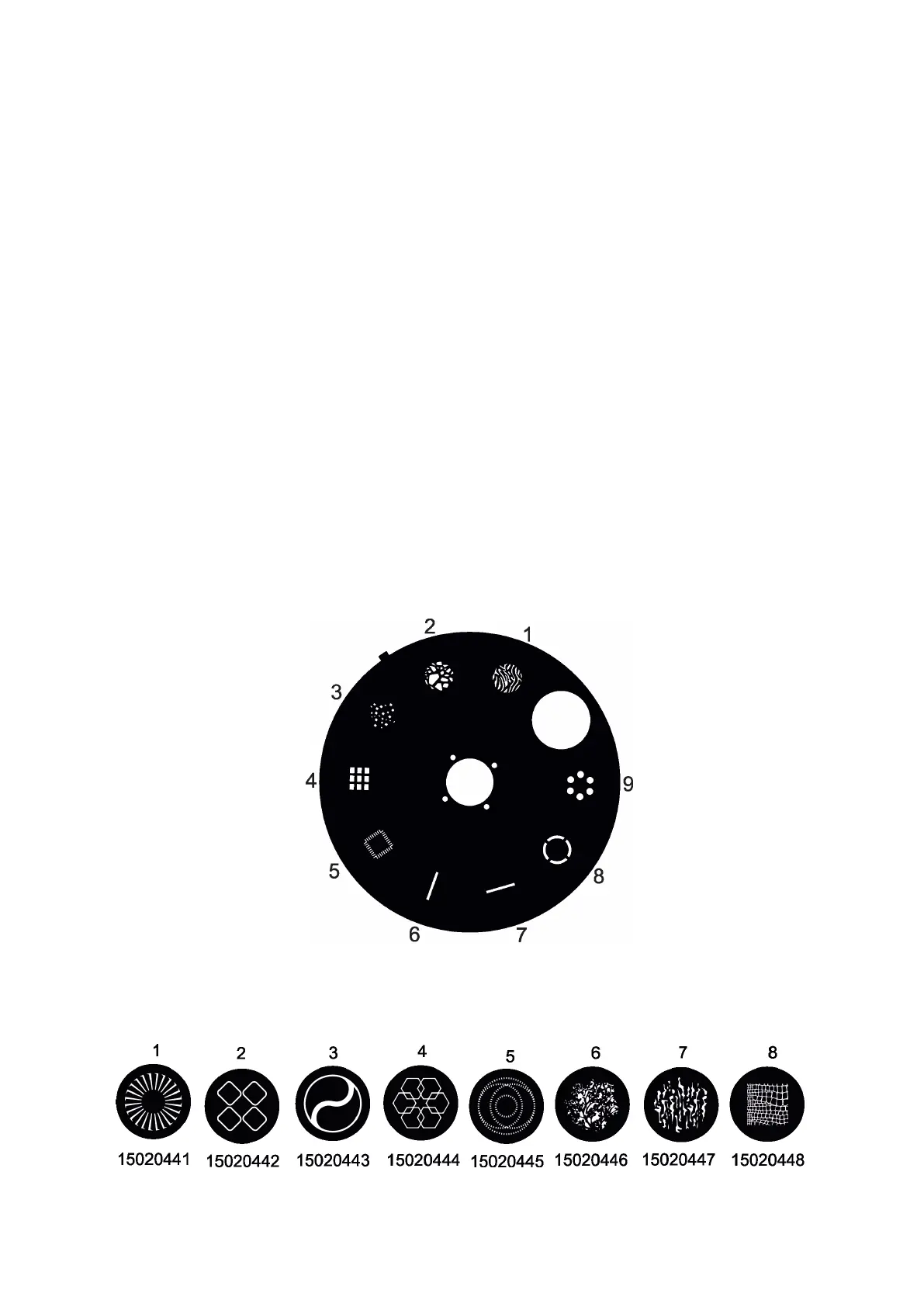

Static gobo wheel
9 metal gobos
Rotating gobo wheel
8 glass gobos can be indexed and rotated in both directions at di󰀨erent speeds
Gobo wheel continuous rotation
Glass gobos: outside diameter= 15.8
+0,15
mm, image diameter=12.5 mm, thickness=1.1-1.5 mm,
high temperature borooat or better glass
"Slot&lock" system for easy replacement of gobos
