12. Appendix
12.1Changing the LED light source
The Robin Painte allows you to change the LED light source and this way keep a high performance of the xture.
To change the LED light source.
1. Disconnect the xture from mains and allow it to cool about 30 minutes.

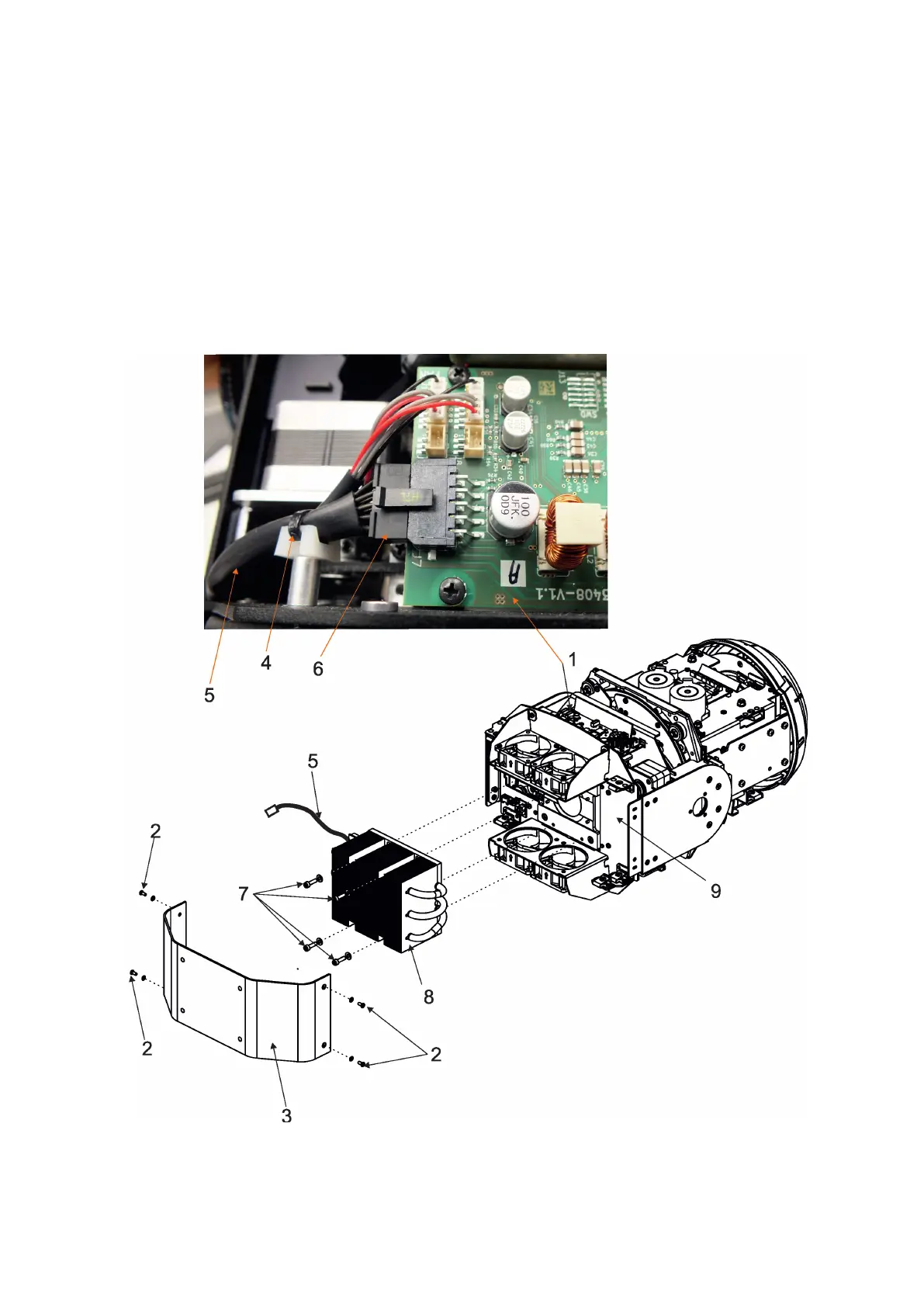

2. Remove both head covers of the xture and lock the head in a horizontal position in which you will have
access to the LED control PCB (1).
3. Remove the rear cover (3) of the head by unscrewing the four screws M3x8 (2) with star washers.
4. Cut o the cable binder (4) and release the LED source cable (5). Disconnect the cable connector (6) from the
the LED control PCB (1).
5. Unscrew the four socket cap screws M4x14 (7) with washers and carefully remove the LED module (8) from
the head (9).
