Robe Painte - Installation; Connection to the Mains

6
3. Installation
Fixtures must be installed by a qualied electrician in accordance with all
national and local electrical and construction codes and regulations.
3.1 Connection to the mains
For protection from electric shock, the xture must be earthed!
The Robin Painte is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC
power source from 100-240 Volts.
If you need to install a power plug on the power cable to allow connection to power outlets, install a ground-
ing-type (earthed) plug following the plug manufacturer’s instructions. If you have any doubts about proper
installation, consult a qualied electrician.
.
Core (EU) Core (US) Connection Plug Terminal Marking
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth
This device falls under class one and must be earthed (grounded)!

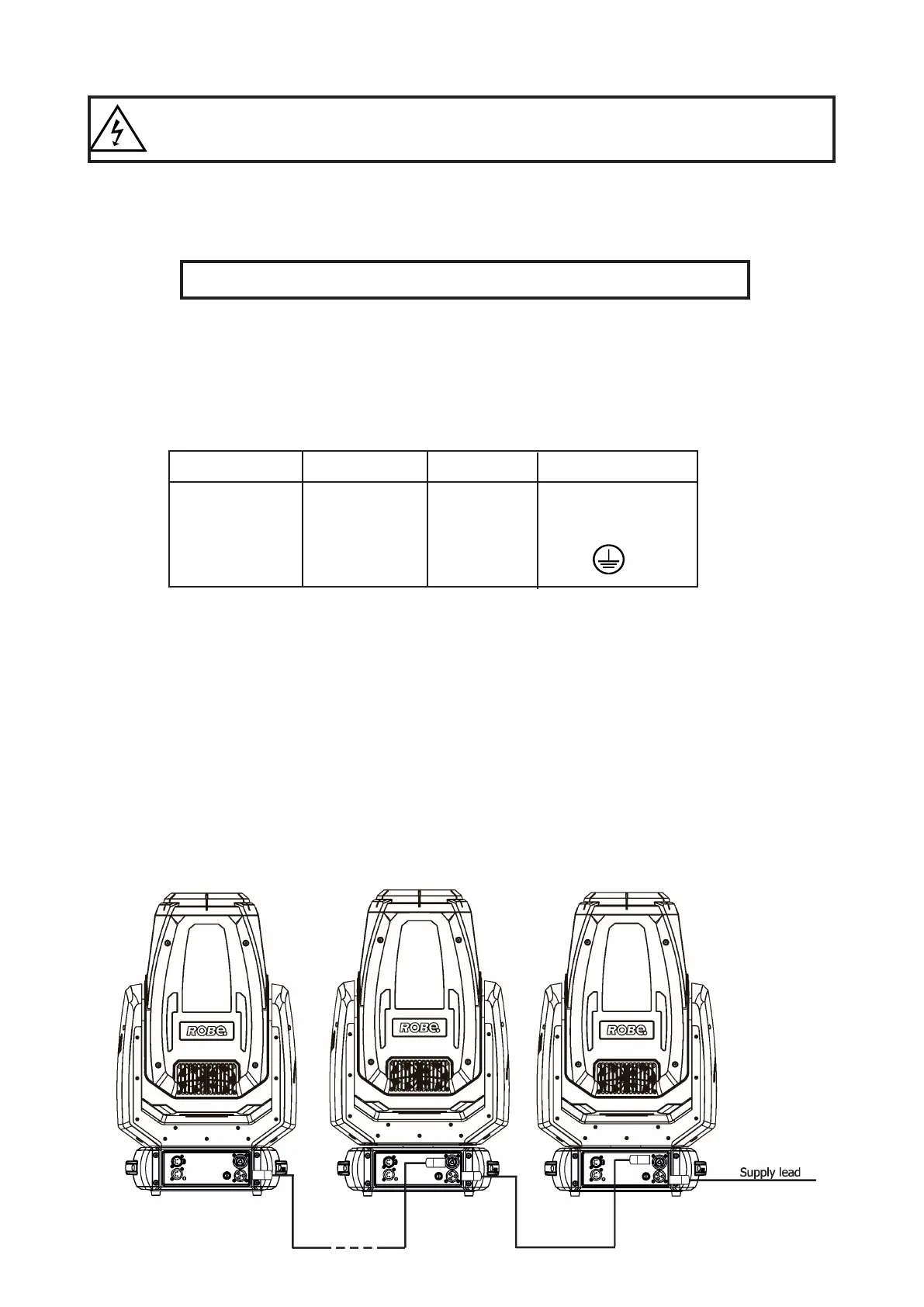

Design of the ROBIN Painte allows you to connect several xtures to AC mains power in one interconnected
chain using power input and throughput connectors. Needed daisy chain cords are stated in the chapter “Tech-
nical specications “
Maximum number of linked xtures depends on input voltage:
CE: US:
7 xtures at power supply= 230V 5 xtures at power supply= 230V
6 xtures at power supply= 208V 5 xtures at power supply= 208V
4 xtures at power supply= 120V 3 xtures at power supply= 120V
Real numbers of xtures may di󰀨er from values stated above as you have to take into account the length of
supply cables, circuit breaker etc. at projecting of the xtures installation Do not overload the supply line and
connecting leads.
!
