Robe Painte - Fixture Exterior View

5

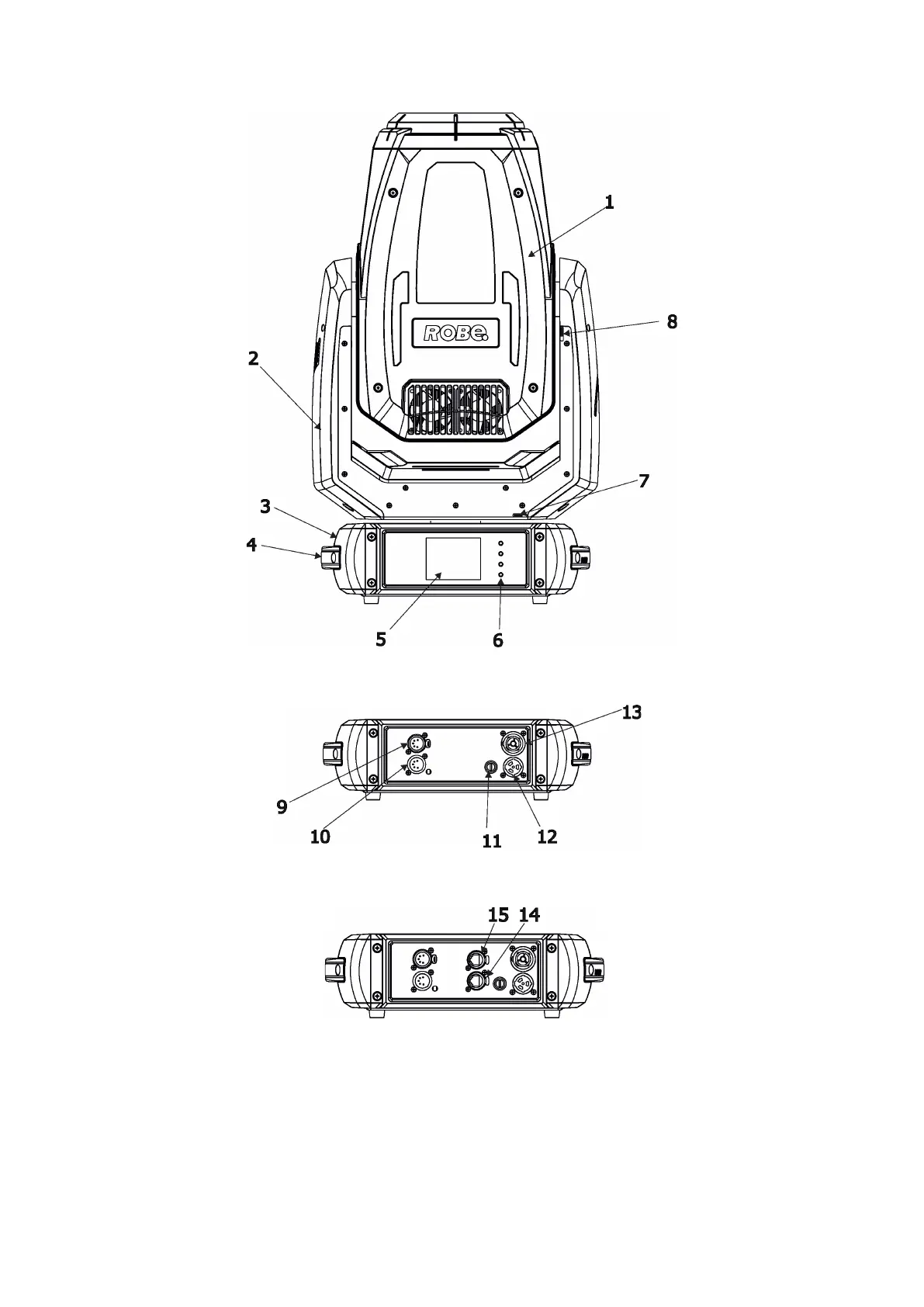

2. Fixture exterior view
1- Moving head
2 - Yoke
3 - Base
4 - Handle
5 - Touch screen
6 - Control buttons
7 - Pan lock
Rear panel of the base
8 - Tilt lock
9 - DMX OUT (5-pin XLR)
10 - DMX IN (5-pin XLR)
11 - Fuse holder
12 - Mains IN (Neutrik powerCON TRUE1)
13 - Mains OUT(Neutrik powerCON TRUE1)
14 - Ethernet IN (RJ 45) - EP version only
15 - Ethernet OUT (RJ 45) - EP version only
The head has to be locked for transportation - the pan lock latch (7) and the tilt lock latch (8) have to be in the
locked positions. To unlock the head, move these latches to unlock positions before operating the xture.
Rear panel of the base - EP version
