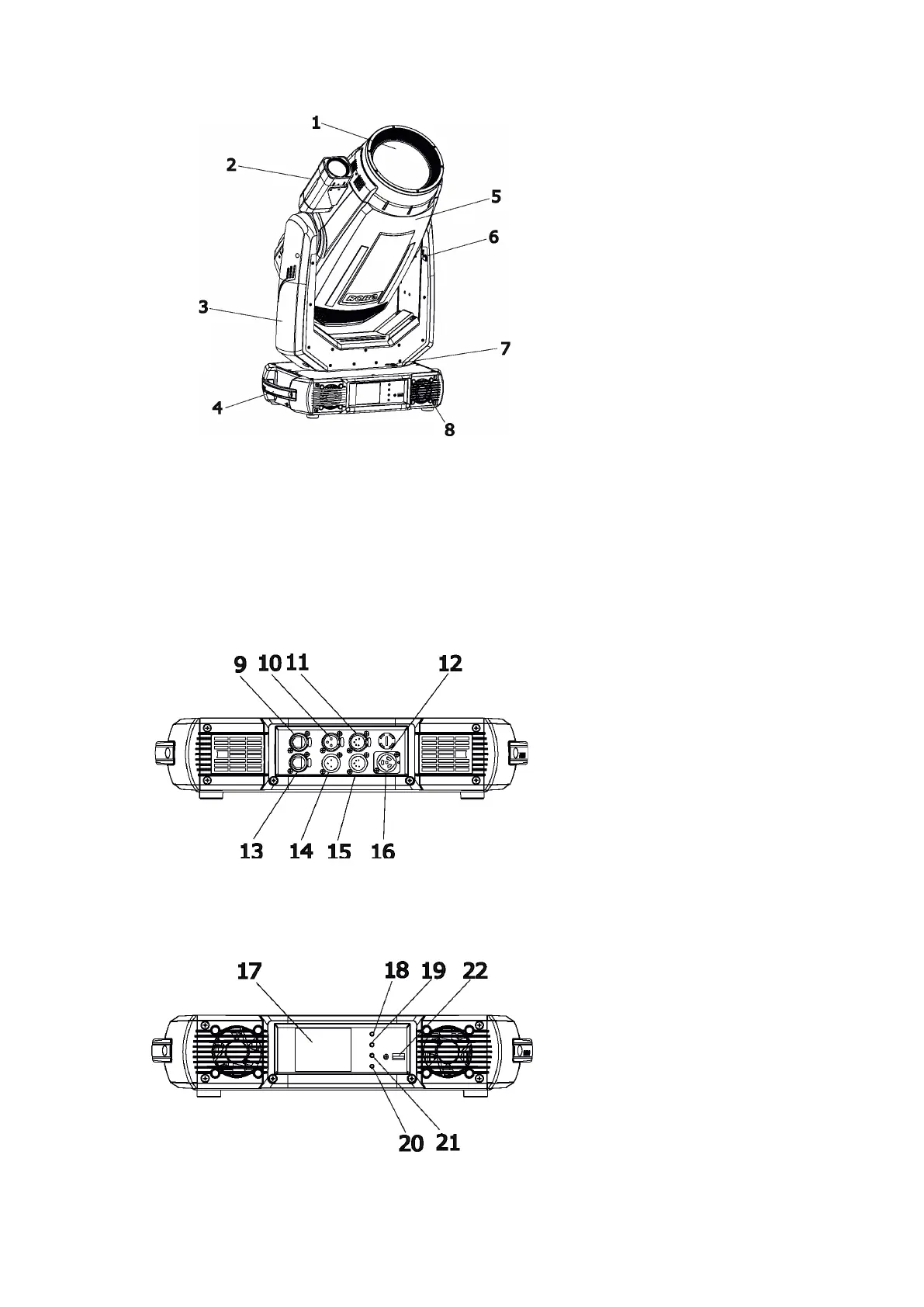

3. Fixture exterior view
Rear panel of the base:
9 - Ethernet input (RJ45)
10 - 3-pin DMX output
11 - 5-pin DMX output
12 - Fuse holder
13 - Camera output (RJ 45)*
14 - 3-pin DMX input
15 - 5-pin DMX input
16 - Power (PowerCon True 1)
*ESPRITE FS only
Front panel of the base:
17 - QVGA touch screen
18 - ESCAPE button
19 - NEXT button
20 - ENTER/DISPLAY ON button
21 - PREV button
22 - USB port
The head has to be locked for transportation- the tilt lock latch (6) and the pan lock latch (7) have to be in the
locked positions. To unlock the head, move these latches to unlock position before operating the xture.
1 - Front lens
2 - Camera*
3 - Arm
4- Handles
5 - Head
6 - Tilt lock
7 - Pan lock
8 - Base
*ESPRITE FS only
The ENTER/DISPLAY ON button also serves for switching the display on when the xture is disconnected
from the mains.
