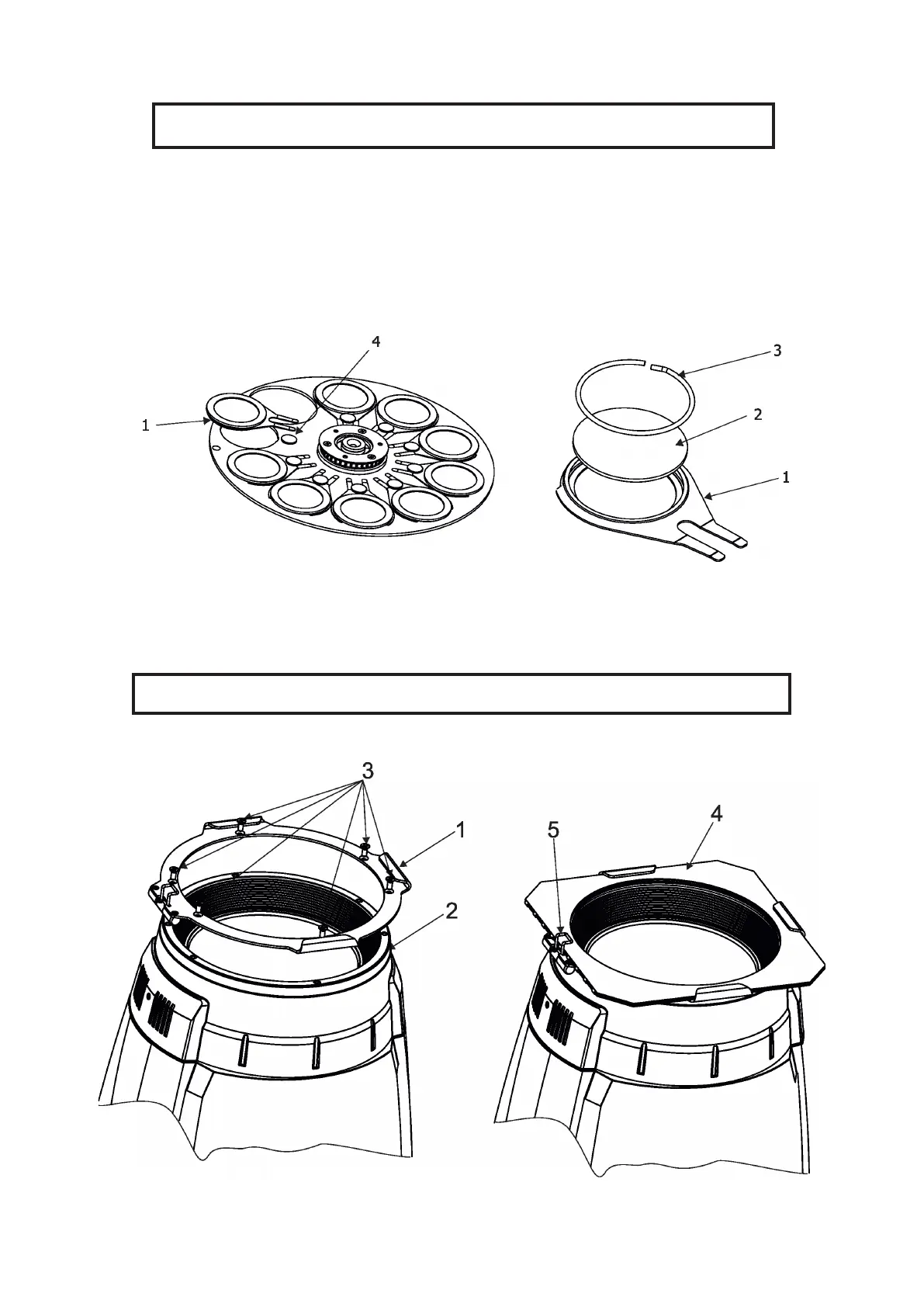

4.4 Replacing static gobos
Disconnect the xture from mains before replacing gobos!
1. Disconnect the xture from mains and allow it to cool.
2. Remove the plastic cover of the head by loosening the 2 quarter-turn fasteners on the cover.
3. Gently pull up the gobo holder (1) from the static gobo wheel
.
4. Remove the spring gobo-lock (3) with an appro
priate tool (e.g. small-bladed screwdriver) and remove it.
Do not touch the surface of the pattern of the glass gobo.
5. Remove the original gobo (2) and insert the new one (glazy side towards the light source). Insert the
spring-gobo lock (3) to secure it in the gobo holder (1).
6. Insert the gobo holder back to the static gobo wheel until it reaches the stop (4) in the static gobo wheel
.
5. Replace the bottom cover before applying power.
4.5 Installing the gel frame
Disconnect the xture from mains before installing the gel frame.
1. Screw the gel frame adaptor [P/N 10980463] (1) on the head (2) by means of the six screws M4x10 (3).
2. Insert the gel frame [P/N 10980464] (4) to the gel frame adaptor and secure it by the spring lock (5).
Max. dimension of transparent lm (for inserting to the gel frame) is 210 x 210 mm.
