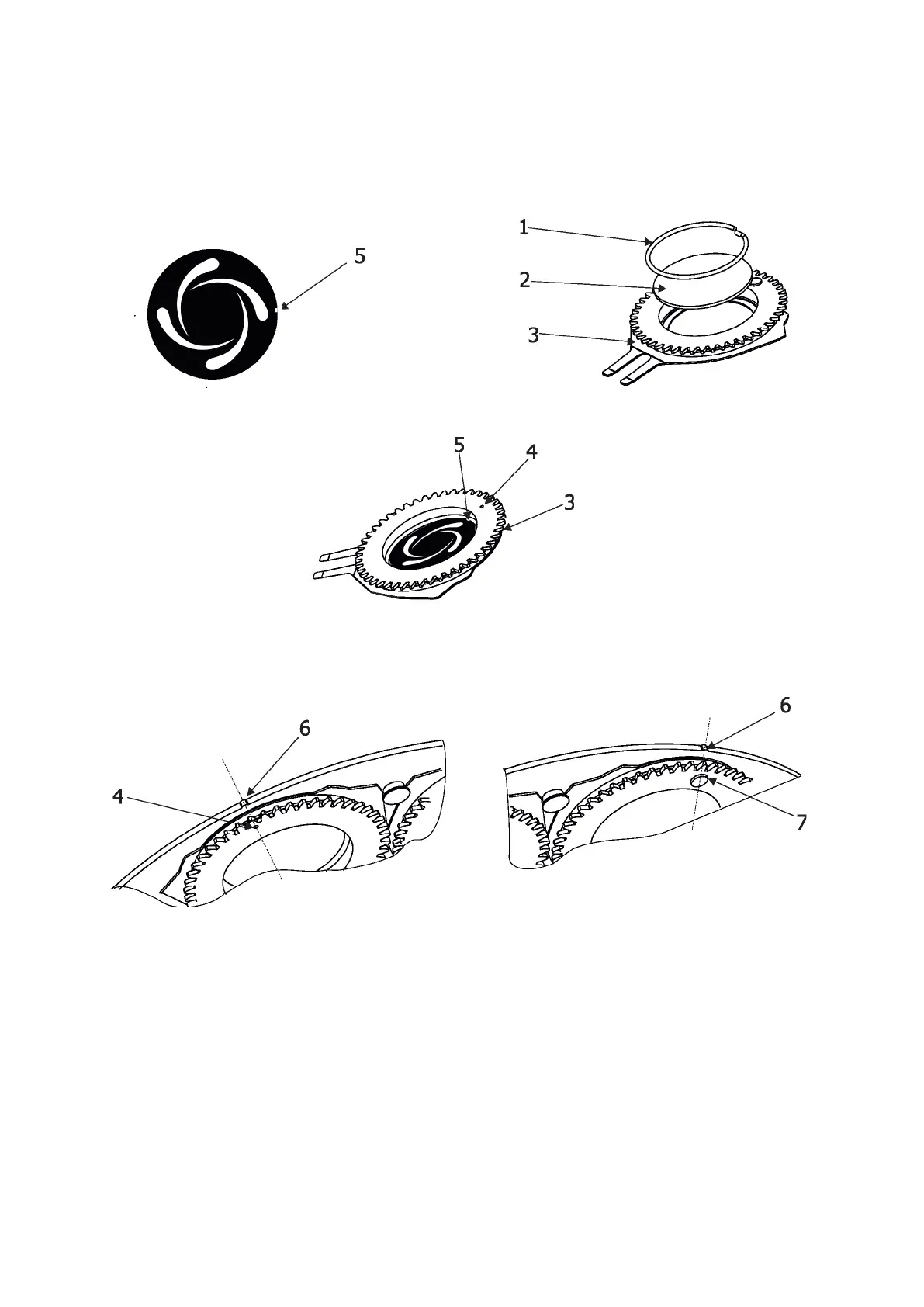

. Gently pull up the gobo holder (3) from the rotation gobo carousel
.
9. Remove the spring lock (1) with an appro
priate tool (e.g. small-bladed screwdriver).
Do not touch the surface of the pattern of the glass gobo with bare ngers.
10. Remove the original gobo (2) and insert the new one (glossy side towards the light source, black matt side
towards the front lens).
The Robe gobo has a small position point (5) at its edge which has to aim at the position point (4) on
the gobo holder (3). Insert the spring lock (1) to secure correct gobo position in the gobo holder (3).
11 Insert the gobo holder back into gobo carousel in this way, that its position point (4) (or magnet (7) has to
exactly aim at a small toothlike projection (6) on the edge of the rotating gobo wheel. Do not move with
neighbouring gobo holders.
12. Escape the gobo item and enter another gobo item which you want to replace. You do not need to set
the gobo oset again. Repeat steps 6, 8-12 for all gobos which you need to replace on the gobo carousel.
Note. The hot-spot lens with holder (optional accessories) can be installed instead of the rot. gobo 7
