Robe Robin Esprite - 14 Appendix; Changing the LED Light Source

55
14. Appendix
14.1Changing the LED light source
The Robin Esprite allows you to change the LED light source and this way keep a high performance of the xture.
To change the LED light source.
1. Disconnect the xture from mains and allow it to cool about 30 minutes.
2. Remove top covers of the xture and lock the head in a horizontal position in which you will have access to
the control PCB (1) of the LED source.

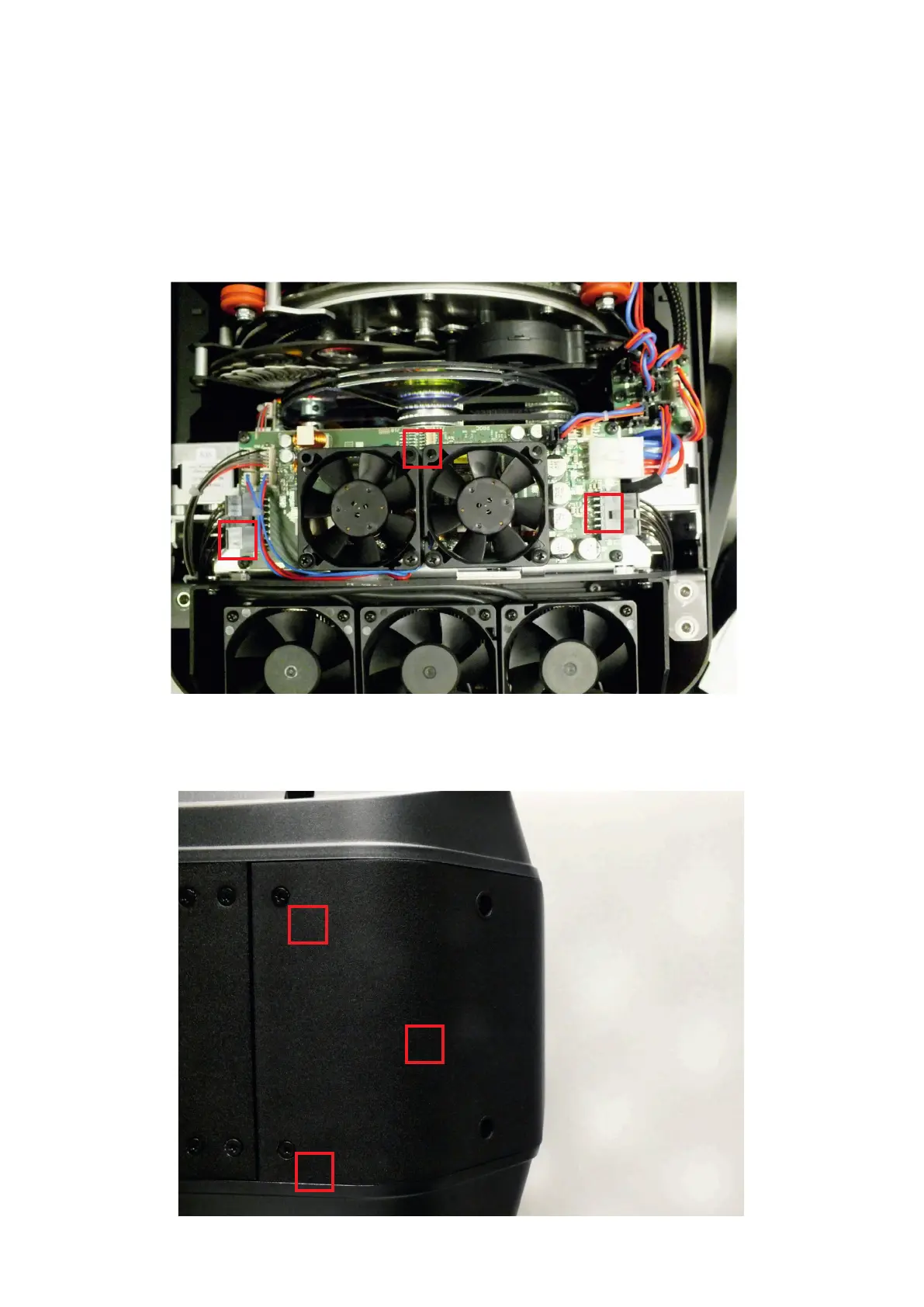

3. Disconnect both LED source connectors (2) from the LED control PCB (1).
4. Unscrew two screws M3x12 with star washers (3) on each side of the rear cover (4) of the head and remove
the cover (4).
1
2
2
4
3
3
